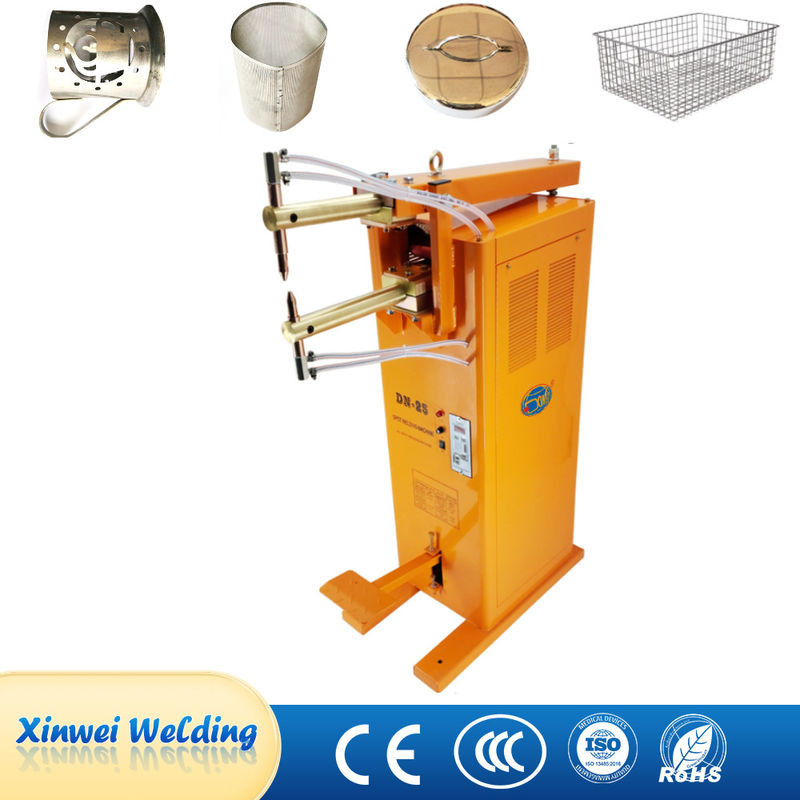

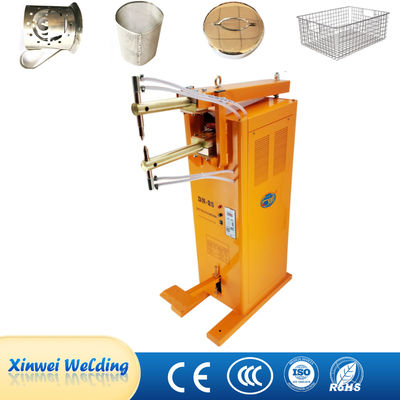

Resistance Welders Point Spot Welders Foot Spot Welding Machine
| Brand Name: | XWH |
| Model Number: | DN |
| MOQ: | 1 Set |
| Price: | $500.00 - $700.00 |
| Packaging Details: | Wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Foot Spot Welding Machine
,Point Spot Welders
,Foot Spot Welding Resistance Welders
The principle of a pedal type spot welding machine is to use the characteristics of double-sided double point overcurrent to compress the welded piece between two electrodes, causing two layers of metal to form a certain contact resistance under the pressure of the two electrodes. When the welding current flows from one electrode to the other electrode, it forms an instantaneous hot melt connection between the two contact resistance points, and the welding current instantly forms a circuit from the other electrode along the two workpieces to this electrode, forming a metal structure.
| Models/Item | DN-35 | DN-25 | DN-16 | DN-10 |
| Rated Power at 50% | 35KVA | 25KVA | 16KVA | 10KVA |
| Rated Primary Power | 380V | 380V | 380V | 380V |
| Rated Primary Current | 92A | 66A | 42.1A | 26.3A |
| Rated Duty Cycle | 10% | 10% | 10% | 10% |
| Secondary Unload Voltage | 2.6～4.2V | 2.3～3.55V | 1.98～3.01V | 1.65～2.4V |
| Adjustment Rated | 4 | 4 | 4 | 4 |
| Welding Time Adjustment | 0～9.99s | 0～9.99s | 0～9.99s | 0～9.99s |
| Arms Length | 280mm | 280mm | 280mm | 260mm |
| Max. Welding Capacity | 3+3mm | 2.5+2.5mm | 2+2mm | 1.5+1.5mm |
| Cooling Ways | Main Transformer: Air air cooling Electrode: Water cooling | |||
Advantages:

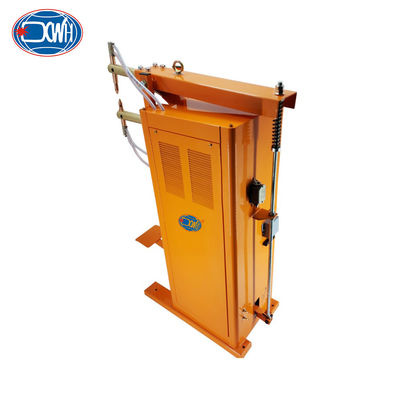

Detail Images:
Scene Images:
Please note: the pedal spot welder can be custom-made according to your requirements.
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
