Resistance China Industrial Polymer Diffusion Welding Machine For Copper Strips
Product Details
| Product Name | Diffusion Welding Machine | Application | Copper Strips Welding Machine |
|---|---|---|---|
| Function | Resistance Welders Welding Machine | Machine Type | Projection Welder |
| Feature | Cnc Welding Machine | Welding Material | Aluminum, Stainless Steel, Metal Steel |
| Max. Welding Capacity | 6+6mm | After Warranty Service | Video Technical Support, Online Support And Spare Parts |
| After-sales Service Provided | Free Spare Parts, Field Installation, Commissioning And Training | Certification | CE |
| Highlight | Polymer Diffusion Welding Machine,Copper Strips Diffusion Welding Machine,Cnc Resistance Welding Machine |
||
Product Description

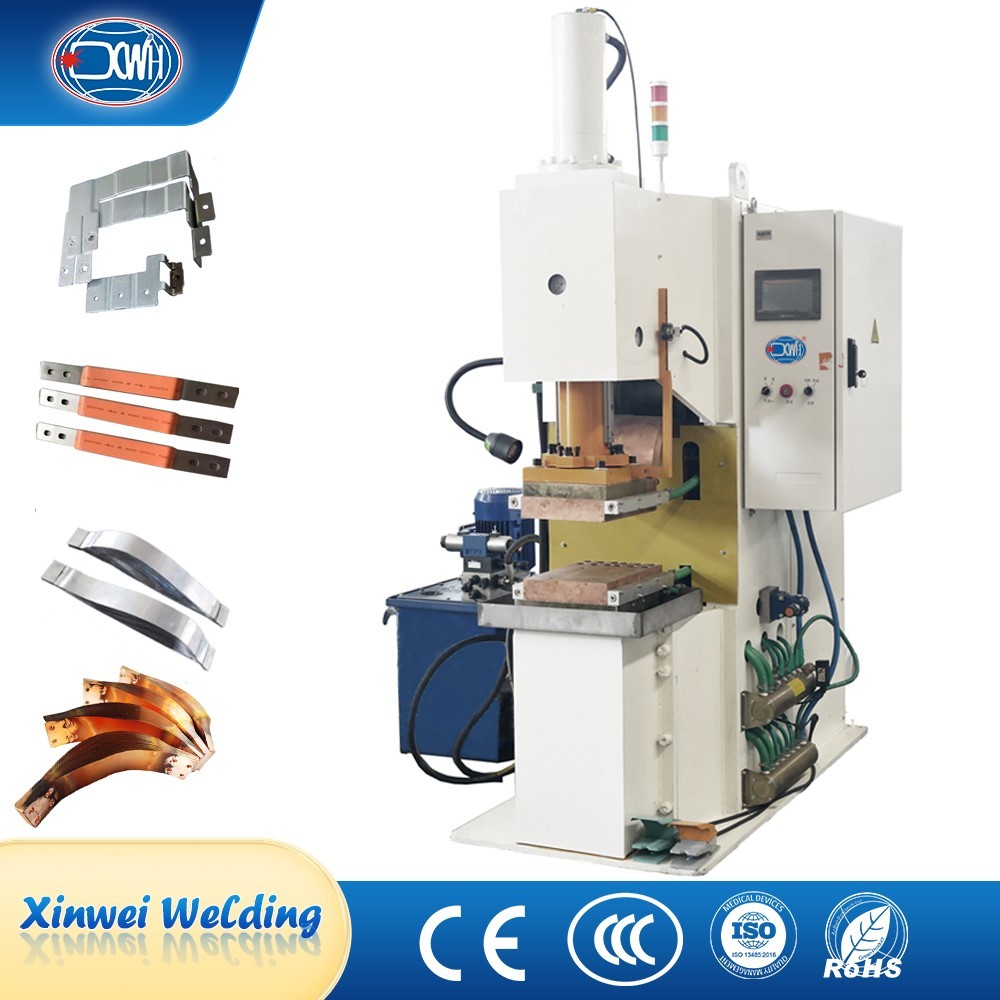

Resistance China Industrial Polymer Diffusion Welding Machine For Copper Strips
Product Description
The diffusion welding machine is customized for welding copper strips, using hydraulic pressure and vertical movement of the upper and lower electrodes. Each model has the characteristics of simple and compact structure, novel and beautiful appearance, stable performance, safe and reliable use, high efficiency and energy conservation.
Technical Parameters
| Item/Model | TNB-250 | TNB-300 | TNB-350 | TNB-400 |
| Rated Power(KVA) | 250 | 300 | 350 | 400 |
| Input Voltage(V) | 220V/380V | 220V/380V | 220V/380V | 220V/380V |
| Max. Short Circuit Current (KA) | 35 | 45 | 55 | 60 |
| Duty cycle(%) | 50 | 50 | 50 | 50 |
| Min.Force At Electrodes(N) | 1000 | 1000 | 1000 | 1000 |
| Electrodes Min. Distance( MM) | 75 | 75 | 75 | 75 |
| Rated Cooling Hydraulic Pressure( MPA) | 0.05 | 0.05 | 0.05 | 0.05 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.Welding Capacity(Sheet Copper)( MM) | 7+7 | 8+8 | 10+10 | 13+13 |
Advantages
1. Simple operation, no need for any form of flux, reduce operating costs
2. Long service life, high pressure, and strong stability performance
Fast welding speed, good welding effect, and sturdy and stable finished product quality
3. Applied to most metal materials, the welding effect will be better, especially in welding metals with high thermal conductivity such as aluminum, aluminum alloys, and copper, which have better results and more reliable quality.

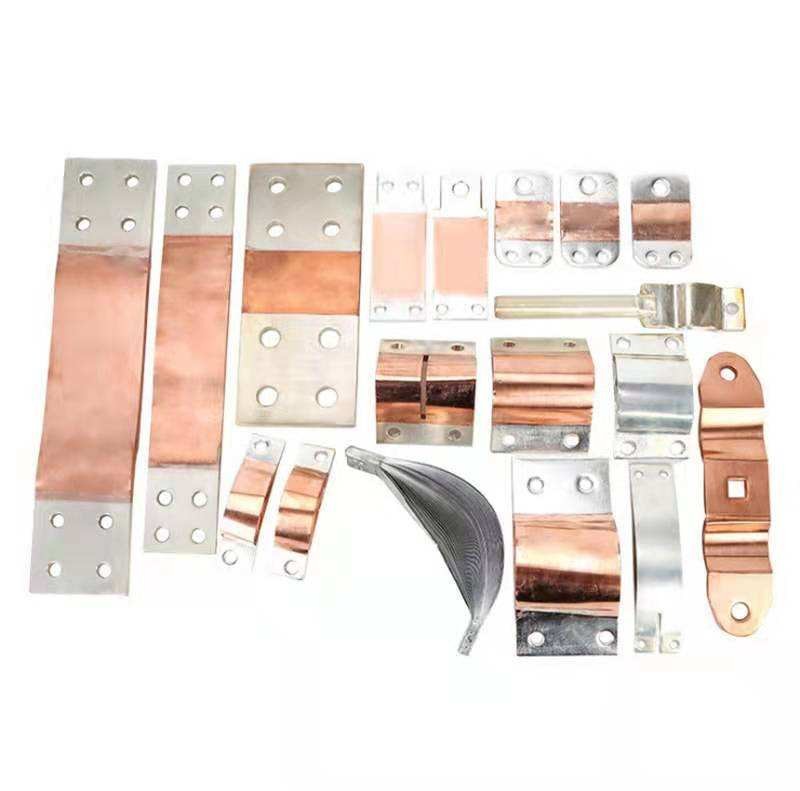

4. Suitable for soft connection welding of copper parts such as new energy vehicles, electric vehicles, power electricians, etc
Product Structure
Images
Application
Frequently Asked Questions
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
