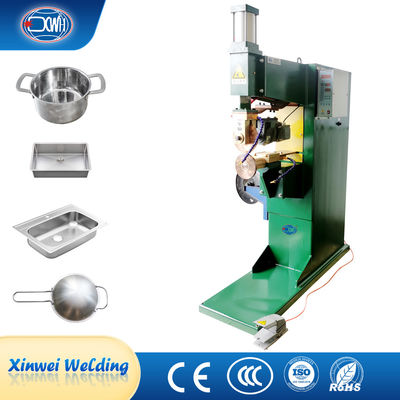

Water Tank Horizontal Type Longitudinal Seam Welder Side Seam Welding Machine
| Place of Origin | China |
|---|---|
| Brand Name | XWH |
| Certification | CE |
| Model Number | FN-80-H, FN-100-H, FN-160-H, FN-100-E, FN-160-E |
| Minimum Order Quantity | 1 Set |
| Price | $6000.00 - $7000.00 |
| Packaging Details | Wooden Case |
| Delivery Time | 30 Working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 50 sets/month |
Product Details
| Features | Horizontal Type Seam Welder | Product Name | Seam Welding Machines |
|---|---|---|---|
| Application | Steel Water Tank Welding Machine | Function | Resistance Seam Welding Machine |
| Machine Type | Resistance Seam Welder | Welding Material | Alloy Metal Aluminum Stainless Steel |
| Type | Roller Seam Welder | After Warranty Service | Video Technical Support, Online Support And Spare Parts |
| After-sales Service Provided | Free Spare Parts, Field Installation, Commissioning And Training | Certification | CE |
| Highlight | Water Tank Longitudinal Seam Welder,Horizontal Longitudinal Seam Welder,Side Seam Welding Machine |
||
Product Description
Water Tank Horizontal Type Longitudinal Seam Welder Side Seam Welding Machine Price
Product Description
Seam welding is a method of forming permanent metal connections. During welding, the weldment heats up locally through an electric current and applies pressure at the contact point of the weldment to form a solder joint. Seam welding is widely used in industries such as automobiles, motorcycles, tractors, jet engines, food canning, bicycles, etc.
Technical Parameters
|
Model Item | Unit | FN-80-H | FN-100-H | FN-160-H | FN-100-E | FN-160-E |
|
Rated power | KVA | 80 | 100 | 160 | 100 | 160 |
|
Voltage input | V
| 380
| 380
| 380
| 380
| 380
|
|
Frequency | Hz | 50 | 50 | 50 | 50 | 50 |
|
Max. short circuit current | KA | 26 | 30 | 40 | 30 | 40 |
|
Working stroke | mm | 100 | 100 | 100 | 100 | 100 |
|
Welding efficiency | m/min | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 |
|
Max. force | N | 6000 | 6000 | 7800 | 6000 | 7800 |
|
Max. welding capacity | mm | 1.2+1.2 | 1.5+1.5 | 2.0+2.0 | 1.5+1.5 | 2.0+2.0 |
|
Motor Power | W | 550 | 750 | 750 | 750 | 400 |
|
Cooling consumption | L/min | 8 | 8 | 10 | 8 | 10 |
| Weight | Kg | 380 | 510 | 630 | 530 | 700 |
Advantages
1. The microcomputer controller can accurately control parameters such as welding time, welding current, prepressing time, and pressing time intensity; Combined with high-power contactless water-cooled thyristor and advanced numerical control technology, the control accuracy is higher, and the operation is simple, fast, and intuitive.
2. Capable of continuous welding and intermittent seam welding.
3. Supports simulation welding function and automatic counting of welding times.
4. The mechanical movement part has lubrication channels to ensure high load operation.
5. Foot mounted remote control switch, freeing hands.
6. Optimized structure, easy to use, ensuring firm welding and good surface quality.

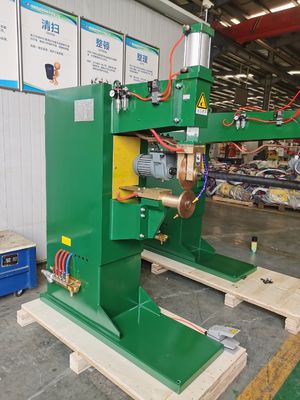

Detail Images
Images
Application
Please note: the welding machine can be custom-made according to your requirements.
Frequently Asked Questions
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
