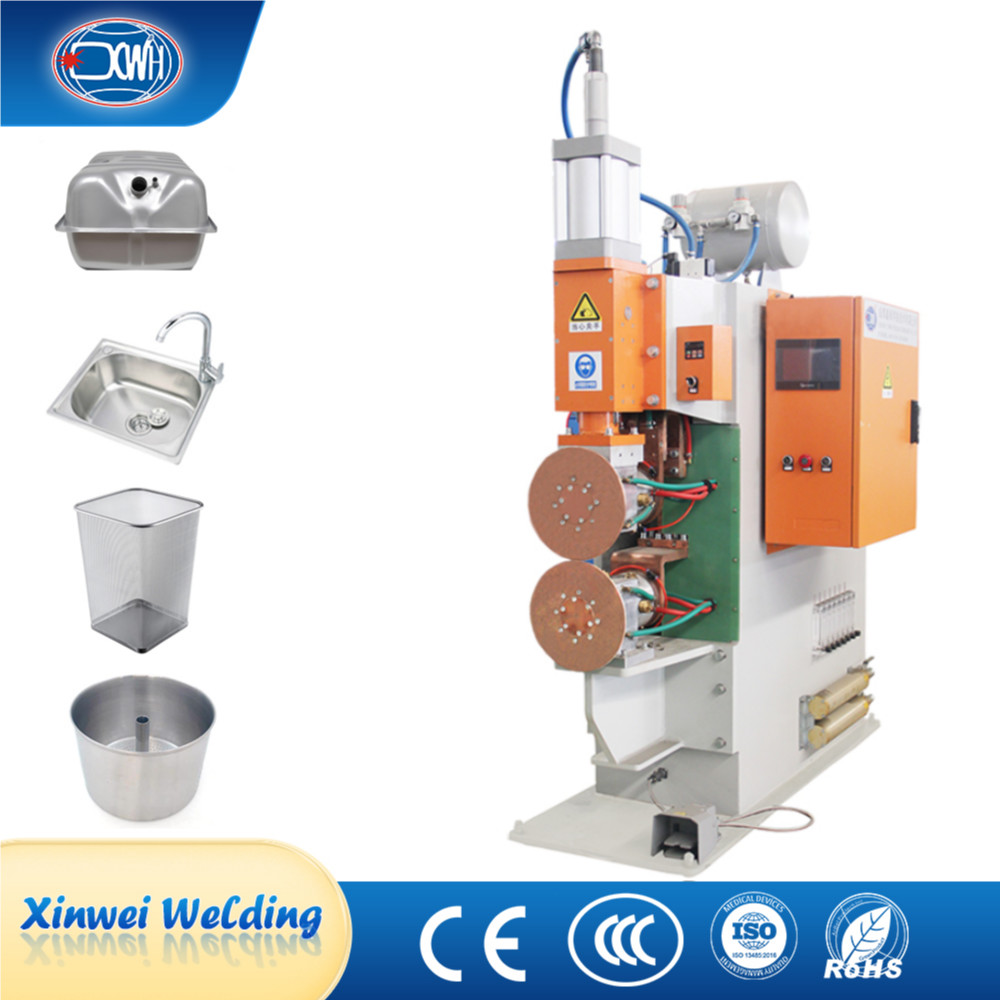

Semi Automatic Cnc Welder Resistance Tin Can Circular Side Seam Welding Machine
| Brand Name: | XWH |
| Model Number: | FN-80-H, FN-100-H, FN-160-H, FN-100-E, FN-160-E |
| MOQ: | 1 Set |
| Price: | $6000.00 - $7000.00 |
| Packaging Details: | Wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Circular Side Seam Welding Machine
,Cnc Side Seam Welding Machine
,Semi Automatic Cnc Resistance Welder
The driving mode of the seam welding machine can be active with upper or lower electrodes, making it convenient for users to choose. The main circuit adopts water-cooled high-power thyristor components, with reliable quality and stable current output. There are two forms of welding: longitudinal welding and transverse welding, which are suitable for welding various workpieces. Widely applicable to metal manufacturing and processing industries such as hardware, home appliances, automobiles, basin making, and can making.
|
Model Item | Unit | FN-80-H | FN-100-H | FN-160-H | FN-100-E | FN-160-E |
|
Rated power | KVA | 80 | 100 | 160 | 100 | 160 |
|
Voltage input | V
| 380
| 380
| 380
| 380
| 380
|
|
Frequency | Hz | 50 | 50 | 50 | 50 | 50 |
|
Max. short circuit current | KA | 26 | 30 | 40 | 30 | 40 |
|
Working stroke | mm | 100 | 100 | 100 | 100 | 100 |
|
Welding efficiency | m/min | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 |
|
Max. force | N | 6000 | 6000 | 7800 | 6000 | 7800 |
|
Max. welding capacity | mm | 1.2+1.2 | 1.5+1.5 | 2.0+2.0 | 1.5+1.5 | 2.0+2.0 |
|
Motor Power | W | 550 | 750 | 750 | 750 | 400 |
|
Cooling consumption | L/min | 8 | 8 | 10 | 8 | 10 |
| Weight | Kg | 380 | 510 | 630 | 530 | 700 |
Advantages
1. The seam welding machine has the characteristics of reasonable equipment structure, simple operation, high automation, wide adjustment range, high accuracy, and stable speed.
2. PLC controls the operation of the entire machine, ensuring accurate and reliable control, as well as simple and convenient operation. AC frequency converter speed regulation achieves infinitely adjustable welding speed, convenient and reliable adjustment, large adjustment range, high precision, stable and reliable operation, and convenient setting of various welding process parameters.
3. High precision and high rigidity structural design ensures long-term accuracy and good stability of the equipment. Adopting precision accessories, it has high performance and stability.
4. Mainly suitable for seam welding of carbon steel, stainless steel, and other metal workpieces/ Widely used in metal manufacturing and processing industries such as hardware, home appliances, automobiles, motorcycle fuel tanks, basin making, and can making.

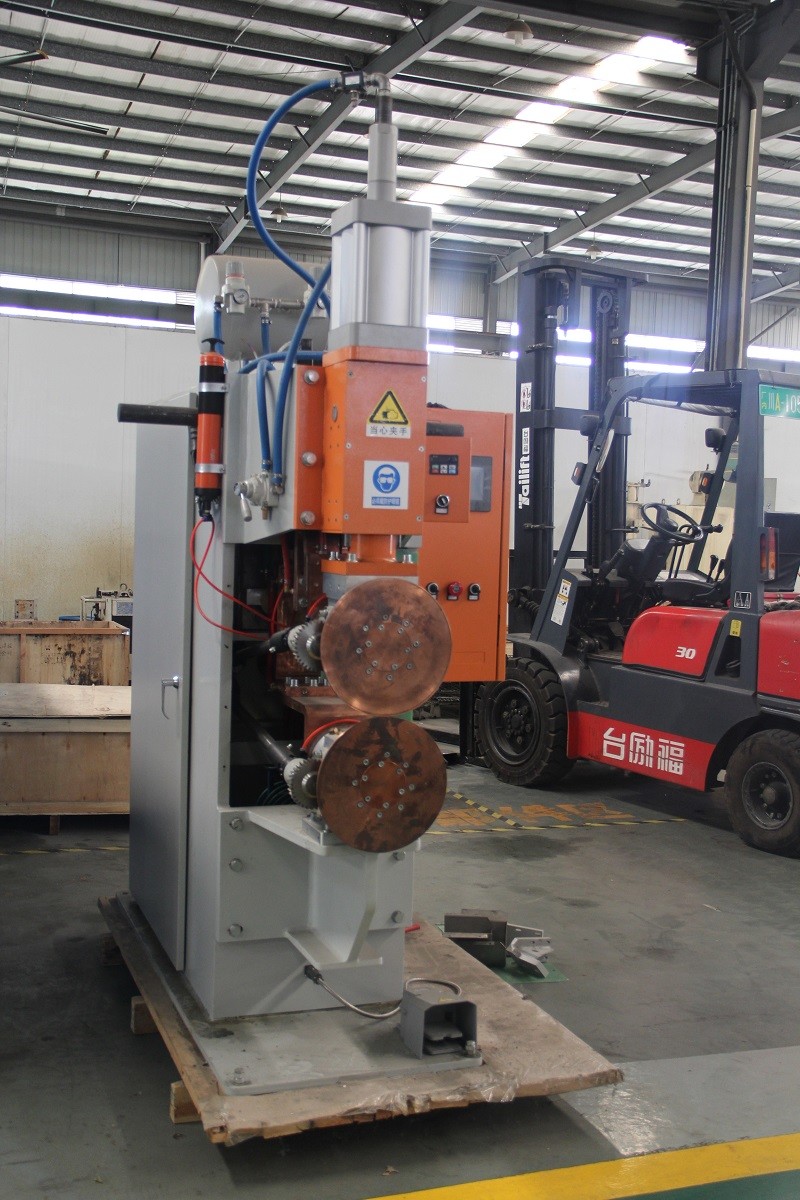

Detail Images
Images
Application
Please note: the welding machine can be custom-made according to your requirements.
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
