Platform Spot Welding Equipment Welder Table Machine For Precision Welding
| Brand Name: | XWH |
| Model Number: | D(N)B--100, D(N)B--160, D(N)B--200, D(N)B--250 |
| MOQ: | 1 |
| Price: | USD6000-USD7000 |
| Packaging Details: | Wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Platform Spot Welding Equipment
,Platform Welder Table Machine
,Platform Spot Welder Table Machine
Platform Spot Welding Equipment Welder Table Machine For Precision Welding
Product Introduction
The desktop medium frequency spot welding machine is composed of the body, welding cylinder assembly, welding transformer, water system, gas system, microcomputer resistance welding machine controller, foot switch, etc. This welding machine is mainly used for welding electronic products (stainless steel, copper, steel).
Technical Parameters
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
(1)The secondary conductor adopts the upper insulation method, with stable and reliable insulation performance;
(2)The main circuit adopts water-cooled IGBT, with strong output, stability, and reliability, and the water distributor can be installed outside the equipment;
(3)All waterway components are made of copper and stainless steel, equipped with a visual water flow display to display the water flow situation;
(4)The operation is controlled by a foot switch, which has high production efficiency and low labor intensity.
(5)Equipped with a touch screen for quick switching of welding processes.
(6)The equipment has a water pressure switch and an alarm.

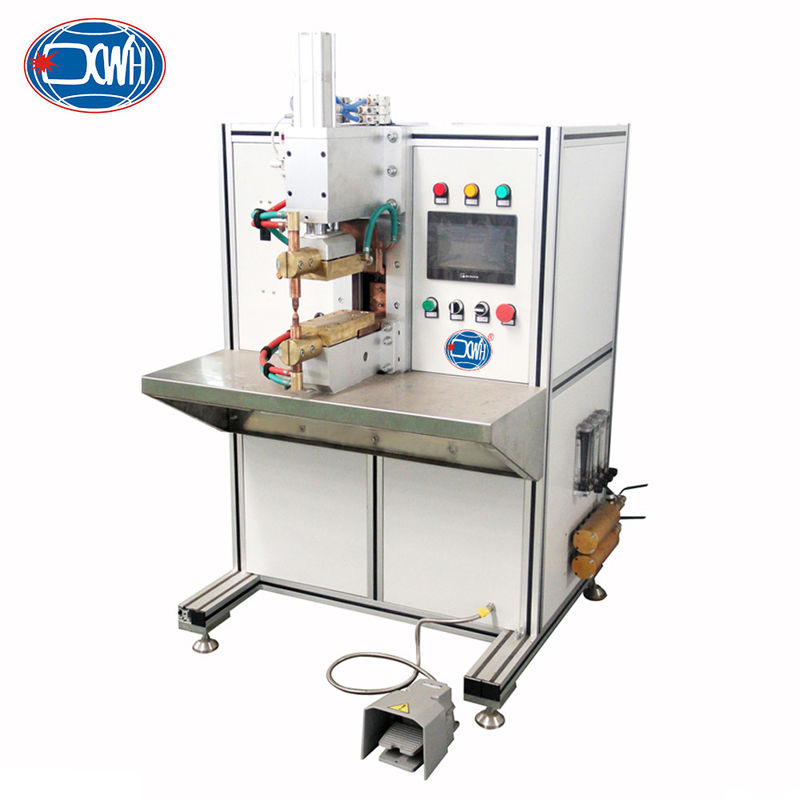

Major Structure
Use and Maintenance of Welding Machines
1. During the use of the welding machine, there should be sufficient water flow, no water interruption is allowed, and the water path should be kept smooth.
2. During the use of the welding machine, it is necessary to regularly keep more than 1/4 of the volume of oil stored in the oil mist collector. If it is insufficient, 10 # engine oil should be added in a timely manner.
3. Regularly inject 30 # engine oil into the oil cup on the support and lubricate the sliding components.

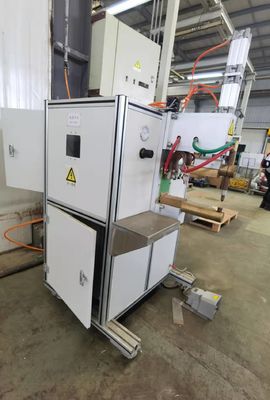

Reference Pictures
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
