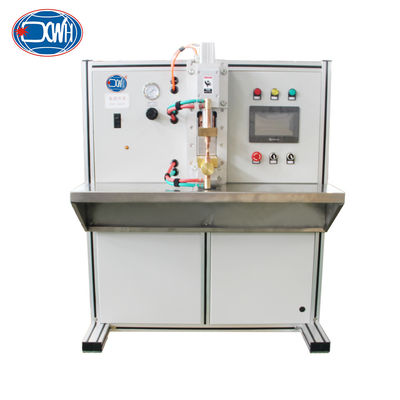

Projection Welding Precision Welder Table Type Spot Welders Table Machine
| Brand Name: | XWH |
| Model Number: | D(N)B--100, D(N)B--160, D(N)B--200, D(N)B--250 |
| MOQ: | 1 |
| Price: | USD6000-USD7000 |
| Packaging Details: | Wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Projection Welding Table Machine
,380V Table Type Spot Welders
,Table Type Precision Welder
Projection Welding Precision Welder Table Type Spot Welding Welders Table Machine
Product Introduction
The desktop medium frequency spot welding machine is composed of the body, welding cylinder assembly, welding transformer, water system, gas system, microcomputer resistance welding machine controller, foot switch, etc. This welding machine is mainly used for welding electronic products (stainless steel, copper, steel).
Technical Parameters
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
(1)The upper electrode is pressurized by a cylinder, and the production form of the cylinder can be determined based on the customer's welding workpiece. If your company's product has a large range of plate thickness, the cylinder adopts a double-layer pressurization method. When welding workpieces with smaller plate thickness, a single-layer cylinder is selected for pressurization. When welding workpieces with larger plate thickness, a double-layer cylinder is selected for pressurization. The pressure of the cylinder is controlled by a proportional valve, which can accurately control the pressure and ensure the pressure supply value;
(2)The upper electrode moves vertically up and down, and has a smooth adjustable working stroke. The lower electrode can be adjusted vertically;
(3)Adopting a direct solenoid valve to accelerate the reaction speed, significantly increase the operating speed of the upper pressure head, and reduce air flow loss;
(4)The descent and ascent speed of the pressurization head can be adjusted arbitrarily, easing the impact of pressurization on the work and reducing noise;
Major Structure

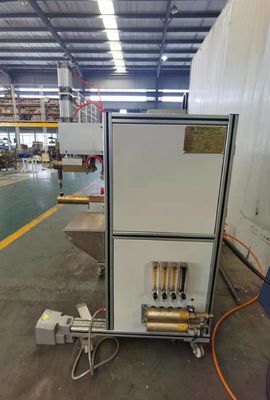

Reference Pictures
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
