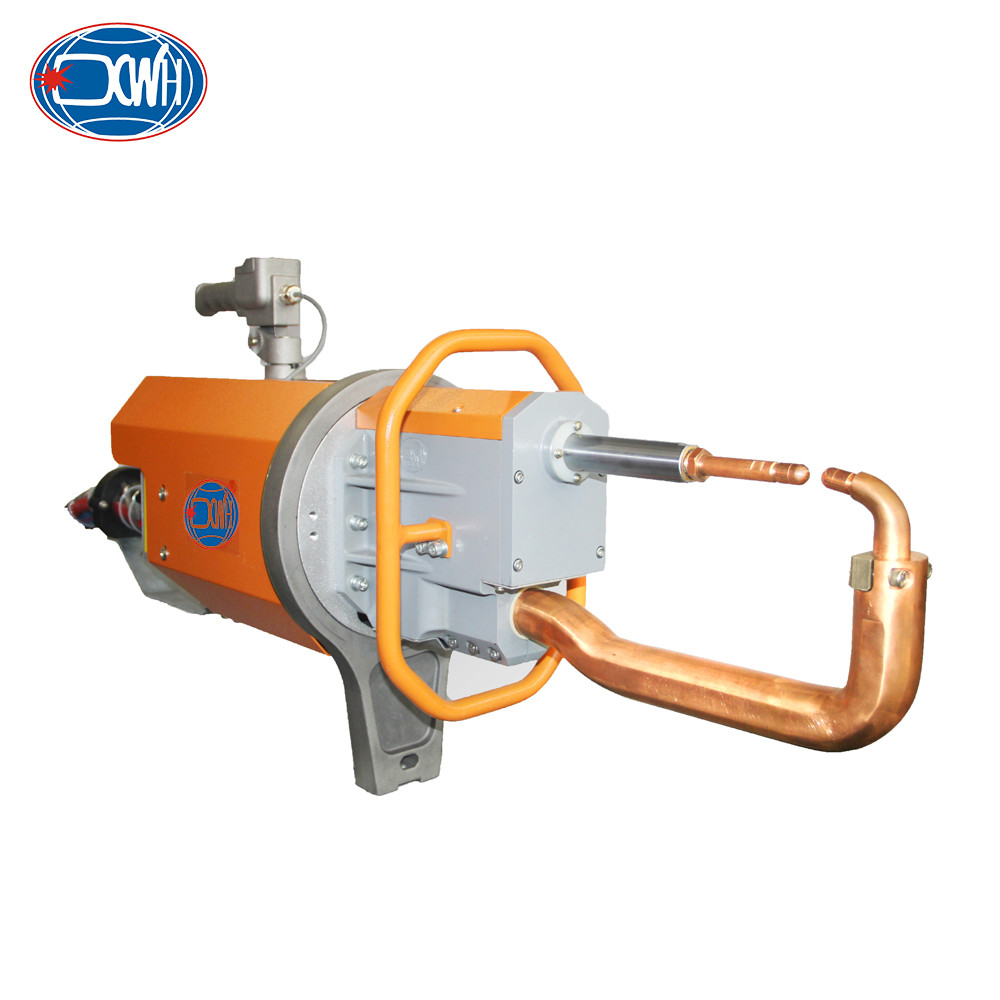

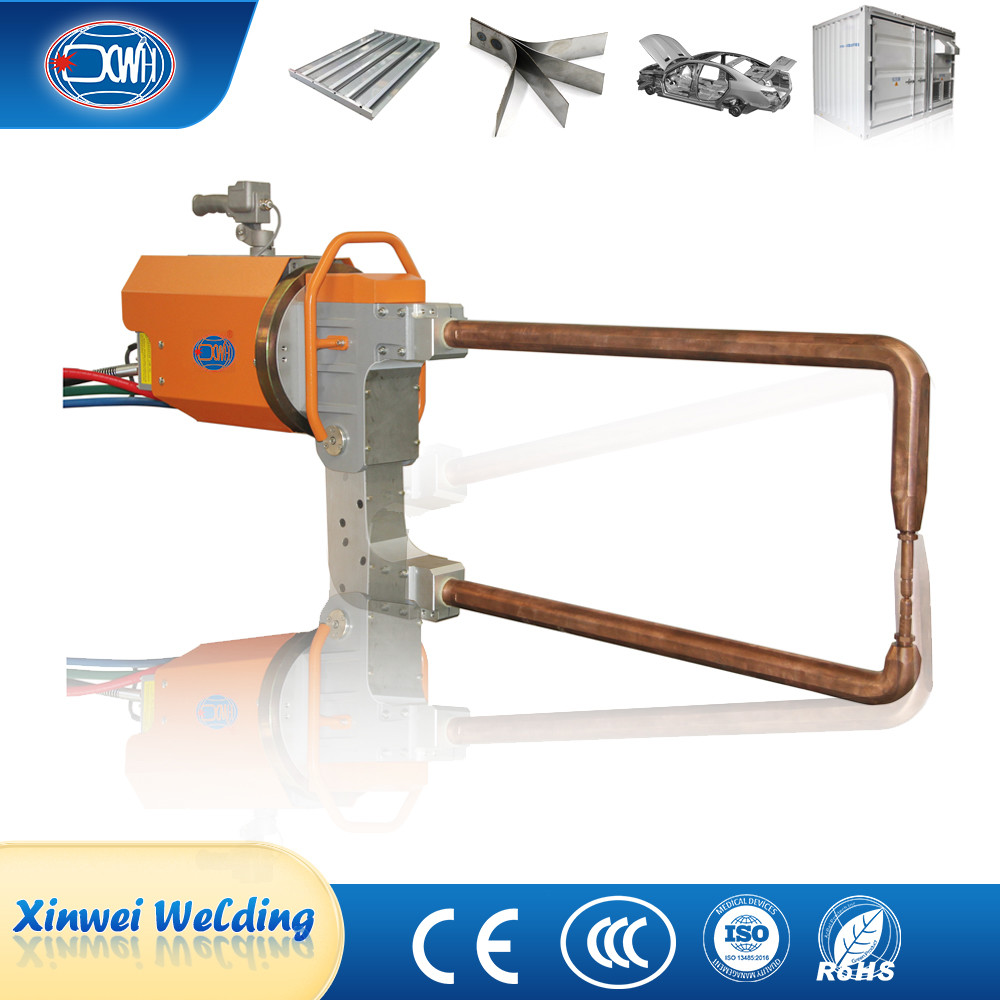

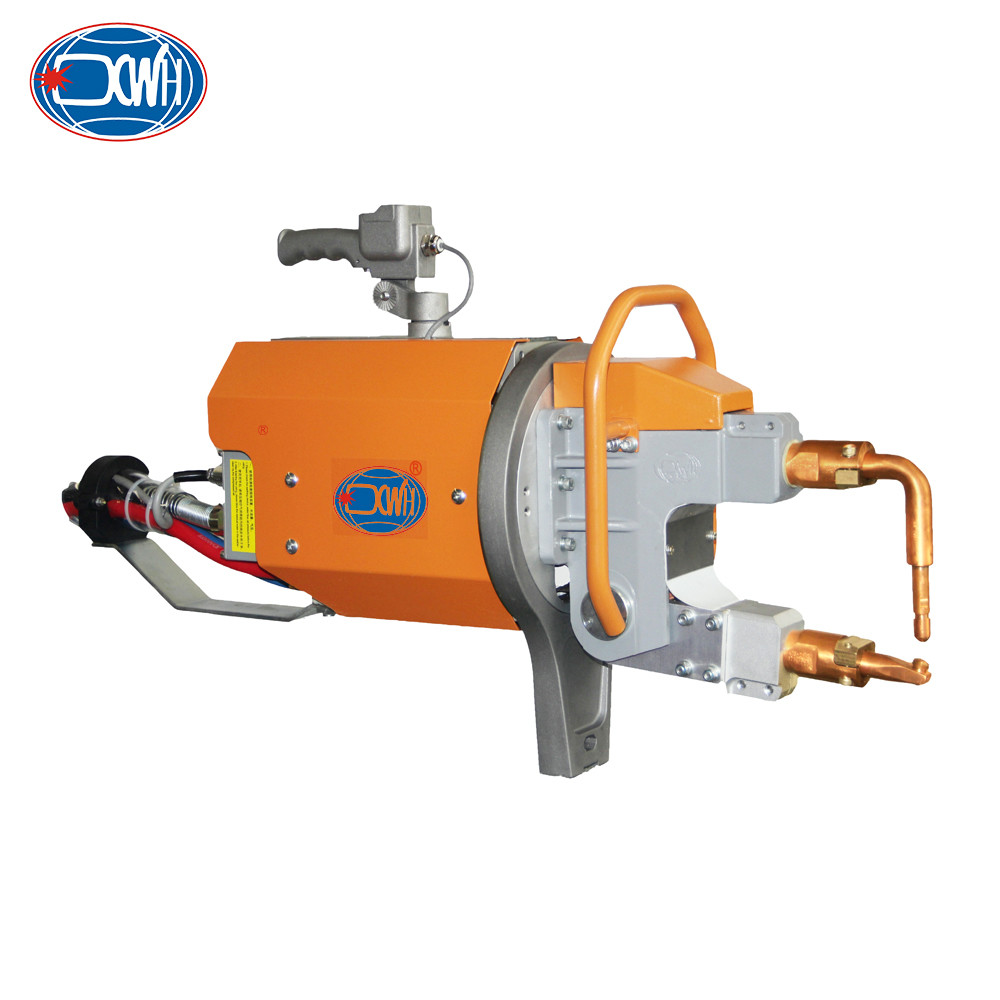

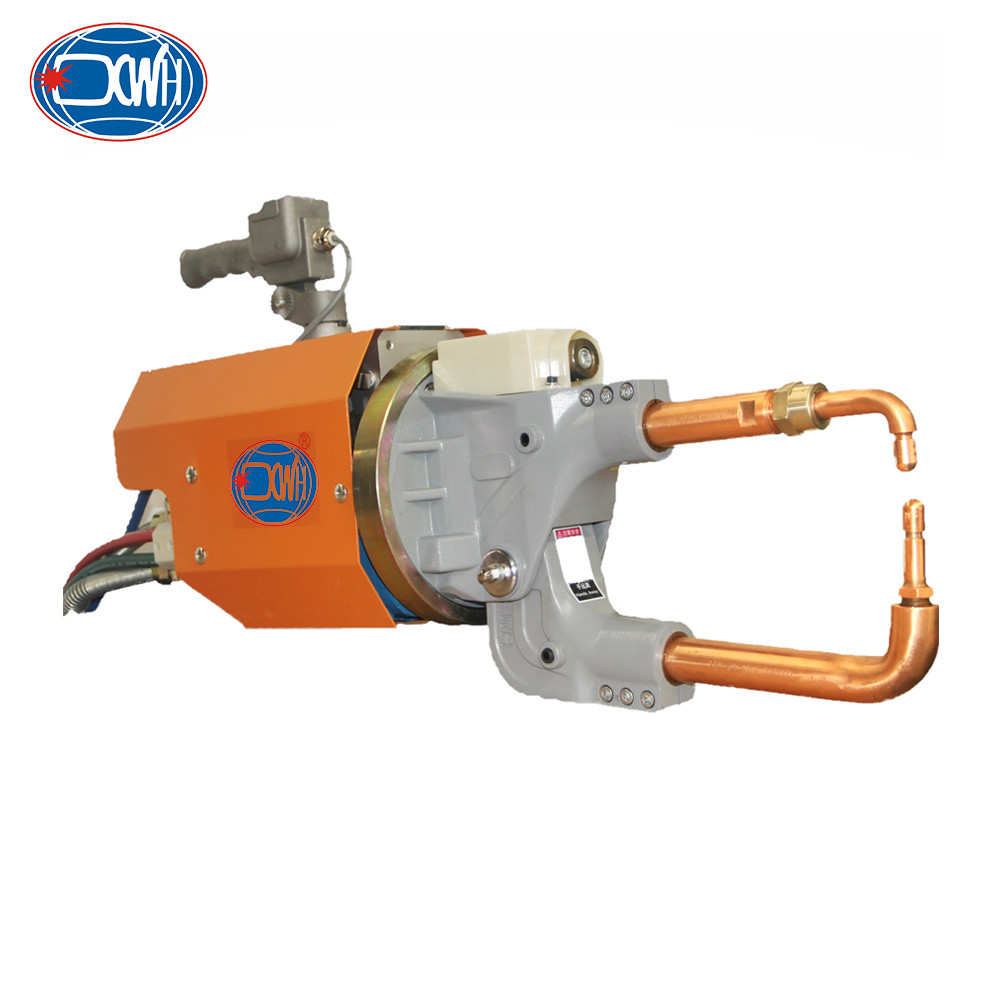

Industrial Stainless Steel Custom Portable Spot Welding Machine Welders
Product Details
| Product Name | Portable Hand Held Welding Machine | Function | Metal Spot Welding Machine |
|---|---|---|---|
| Machine Type | Resistance Welding Machine | Application | Car Body Industry |
| Type | Manual Spot Welding | Max. Welding Thickness | 5+5 Mm |
| Rated Capacity | 60KVA, 80KVA, 100KVA | After-sales Service Provided | Free Spare Parts, Field Installation, Commissioning And Training |
| After Warranty Service | Video Technical Support, Online Support And Spare Parts | Certification | Certification |
| Highlight | Custom Portable Inverter Welding Machine,SS Portable Inverter Welding Machine,Portable Inverter Spot Welders |
||
Product Description
Industrial Stainless Steel Custom Portable Inverter Welding Machine Welders
Product Description
The portable spot welding machine uses the resistance heat generated by the current flowing through the weldment as a heat source for welding under pressure. Mainly used for spot welding of low-carbon steel parts of thin plate structures.
| Item/models | Unit | DN2-31X | DN2-31C | DN2-40X | DN2-40C | DN2-63X | DN2-63C |
| power at 50% | KVA | 31 | 31 | 40 | 40 | 63 | 63 |
| Maximum short circuit current | KVA | 14 | 14 | 18 | 18 | 20 | 20 |
| Secondary unload voltage | V | 5.58 | 5.58 | 6.8 | 6.8 | 7.9 | 7.9 |
| Voltage at 50Hz/60Hz | V | 380 | 380 | 380 | 380 | 380 | 380 |
| Distance between the arms | MM | 168-288 | 100 | 168-328 | 100 | 168-428 | 100 |
| Max.strength at electrodes | N | 3000 | 3000 | 3500 | 3000 | 3500 | 3000 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke of cylinder | MM | 70 | 50 | 100 | 50 | 100 | 50 |
| Max. arm length | MM | 750 | 350 | 1000 | 450 | 1100 | 500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 |
| Cooling water flow | L/MIN | 4 | 4 | 4 | 4 | 4 | 4 |
♦ Distance,angle and length of welding arm can be made according to customers' requests.
Features:
1. Small, easy to operate and save power.
2. The structure is compact and is easy to maintenance.
3. The portable spot welders can rotate 360°as the turntable is configured with bearings.
4. Customized welding tongs, the longest welding arm is 1300mm and the shortest is 220mm.
5. The body structure is strong and resistant to damage.
Application:
The portable spot welding machine is widely used in automobile manufacturing, maintenance, household appliances, doors and Windows, agriculture, construction steel and other metal manufacturing industries.
General Structures
Mutiple Electrode Arms
Power Frequency Controller
1) The controller has an adjustable output current function.
2) The controller has a constant current automatic compensation control function to ensure a constant output of welding current, with a platform order of up to ten.
3) Can store multiple sets of different welding specifications, at least not less than 2 sets. And it is convenient to select groups on the welding machine.
4) Equipped with single spot welding and continuous welding functions, as well as welding specification functions such as multi pulse selection, the welding current pulse count can reach nine.
Use & Installation
Images
Frequently Asked Questions
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
