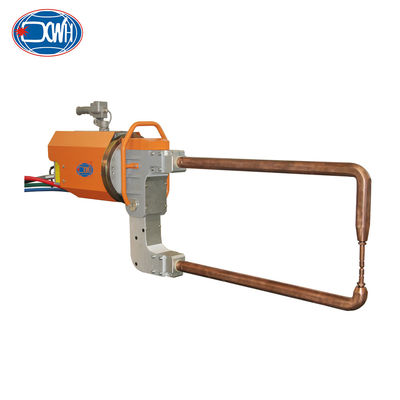

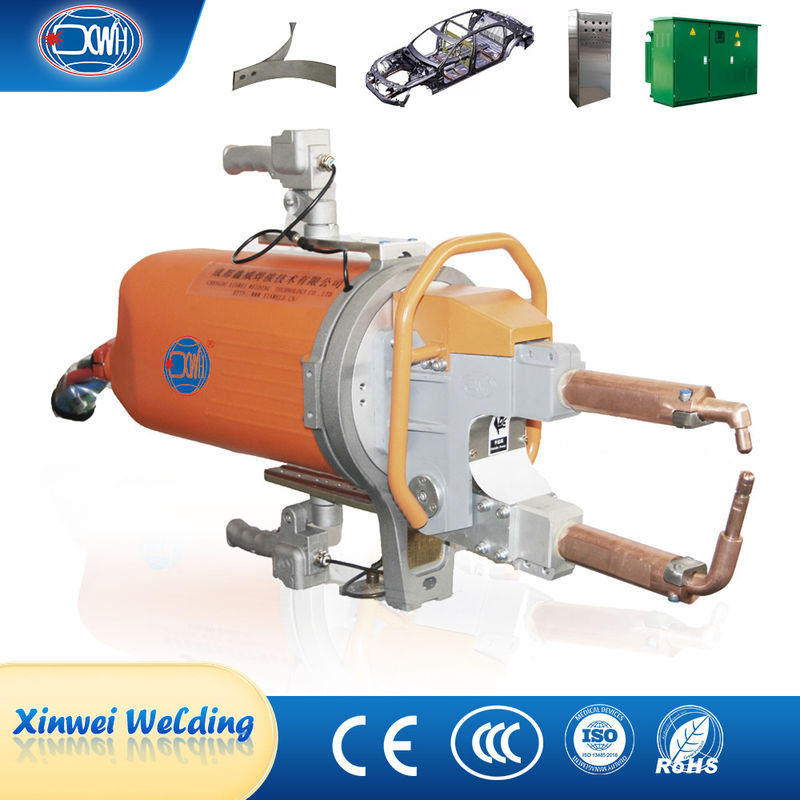

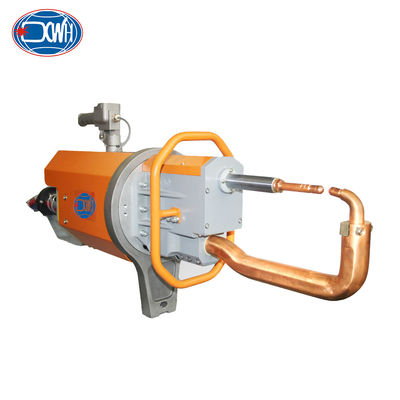

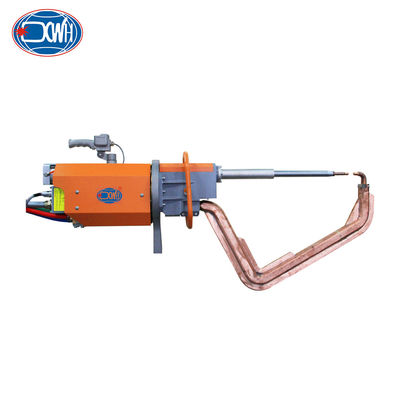

Resistance Automotive Industrial Portable Spot Welders Welding Machine
Product Details
| Product Name | Portable Hand Welding Machine | Function | Hand Welding Machine |
|---|---|---|---|
| Machine Type | Resistance DC Welding Machine | Application | Automobile |
| Feature | High Frequency Inverter DC Output | Max. Welding Thickness | 5+5 Mm |
| Rated Capacity | 60KVA, 80KVA, 100KVA | After-sales Service Provided | Free Spare Parts, Field Installation, Commissioning And Training |
| After Warranty Service | Video Technical Support, Online Support And Spare Parts | Certification | Certification |
| Highlight | Automotive Portable Spot Welders,Resistance Portable Spot Welders,100KVA Industrial Spot Welding Machine |
||
Product Description
Resistance Automotive Industrial Portable Spot Welders Welding Machine
Product Description
The handheld portable spot welding machine mainly consists of: welding transformer, welding controller, welding pliers, water distributor, suspension rod, balance system, suspension, chiller, etc
| Item/models | Unit | DN2-60X | DN2-60C | DN2-80X | DN2-80C | DN2-100X | DN2-100C |
| power at 50 | KVA | 60 | 60 | 80 | 80 | 100 | 100 |
| Maximum short circuit current | KVA | 10 | 10 | 12 | 12 | 14 | 14 |
| Secondary unload voltage | V | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
| Voltage at 50Hz/60Hz | V | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 |
| Distance between the arms | MM | 120-280 | 100-300 | 120-128 | 100-300 | 120-280 | 100-300 |
| Max.strength at electrodes | N | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke | MM | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
| Max. arm length | MM | 500 | 500 | 600 | 500 | 600 | 500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Cooling water flow | l/MIN | 8 | 8 | 8 | 8 | 8 | 8 |
♦ Distance,angle and length of welding arm can be made according to customers' requests.
Features:
1) The spatter in the welding process is greatly reduced, improving the welding quality and purifying the welding environment.
2) Integrated modular design, the welding control system has stable performance, high reliability, and low welding failure rate.
3) The transformer adopts medium frequency type, which meets international standards. The product technology is advanced, with F-level insulation and IP65 high protection level. Equipped with overheating protection function, high efficiency, low magnetic loss, high output power, and high grid utilization rate.
4) Adopting a proportional valve to control the pressure of the welding clamp cylinder, ensuring precise control.
5) Widely used in welding high-strength plate, aluminum, galvanized metal and other metal materials.
Application:
The portable spot welding machine is widely used in automobile manufacturing, maintenance, household appliances, doors and Windows, agriculture, construction steel and other metal manufacturing industries.
Welding Principle Of Electric Resistance Welding
When two electrodes are pressed into the workpiece, the two metal layers form a contact spot welder resistance under the pressure of the two electrodes. When the welding current flows from one electrode to the other electrode, the two contact resistance points form instant thermal fusion, and the welding current flows from the other electrode to the two workpieces, forming a circuit instantly, which will not cause harm to the two electrodes.
General Structures
Mutiple Electrode Arms
Use & Installation
Images
Frequently Asked Questions
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
