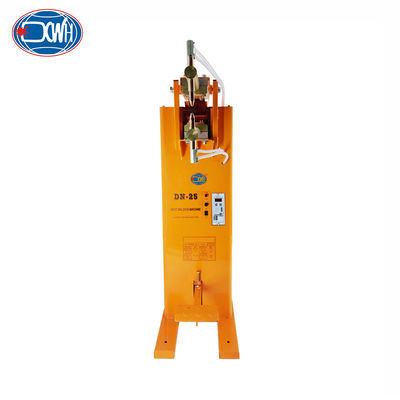

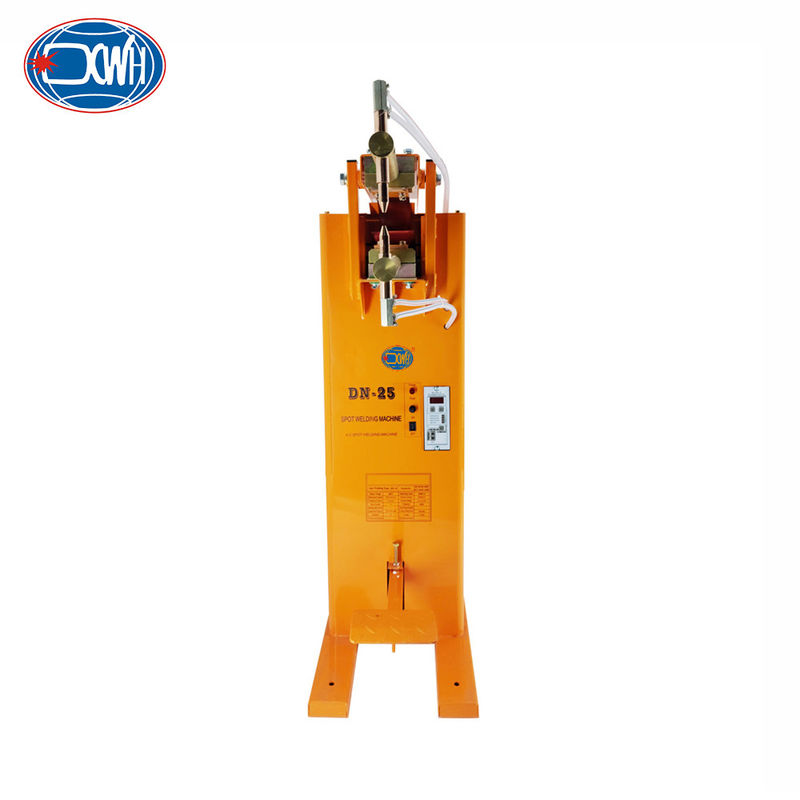

Water Cooling Welding Machine Foot Operated Spot Welder

  • Water Cooling Welding Machine Foot Operated Spot Welder
  • Water Cooling Welding Machine Foot Operated Spot Welder
  • Water Cooling Welding Machine Foot Operated Spot Welder
Place of Origin China
Brand Name XWH
Certification CE
Model Number DN
Minimum Order Quantity 1 Set
Price $500.00 - $700.00
Packaging Details Wooden Case
Delivery Time 15 Working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 50 sets/month
Product Details
Product Name Rocker Arm Point Welding Machine Type Foot Pedal Spot Welding Machine
Application Metal Spot Welding Welding Material Alloy Metal Aluminum Stainless Steel
Keyword Rocker Arm Point Welding Certification CE
After Warranty Service Video Technical Support, Online Support And Spare Parts After-sales Service Provided Free Spare Parts, Field Installation, Commissioning And Training
Highlight

Water Cooling Spot Welding Machine

,

Foot Operated Spot Welder

,

Rocker Arm Point Welding Machine
Leave a Message
Product Description





Water Cooling Different Welding Requirements Machine Foot Operated Spot Welder


Product Description


Pedal spot welding machine is easy to operate and foot switch is used to control welding. Welding current and other parameters can be displayed. It can weld stainless steel, low carbon steel, etc. The welding arm can be customized to meet the welding requirements of different workpieces.





Technical Parameters

Models/Item
 DN-35 DN-25 DN-16 DN-10
Rated Power at 50% 35KVA 25KVA 16KVA 10KVA
Rated Primary Power 380V 380V 380V 380V
Rated Primary Current 92A 66A 42.1A 26.3A
Rated Duty Cycle 10% 10% 10% 10%
Secondary Unload Voltage 2.6～4.2V 2.3～3.55V 1.98～3.01V 1.65～2.4V
Adjustment Rated 4 4 4 4
Welding Time Adjustment 0～9.99s
0～9.99s
 0～9.99s 0～9.99s
Arms Length 280mm 280mm 280mm 260mm
Max. Welding Capacity 3+3mm 2.5+2.5mm 2+2mm 1.5+1.5mm
Cooling Ways
Main Transformer: Air air cooling    Electrode: Water cooling





Advantages



1)Adopt a lever-petal type spring pressure structure, easy to operate and maintain/Pedal-level type spring-pressing strcture makes the machine easy to operate and convenient to maintain.



2) Welding time can be adjusted based on actual needs, and as a result, the welding also can be well repeated.



3)Widely used in automobile, aviation, construction, machinery, metal products, electrical switches and so on.



4)Adopt SCR contactless switching circuit, so it can turn off circuit quickly and reliably.



5)Widely used for welding of low carbon steel, wire, stainless steel plate etc.





Detail Images

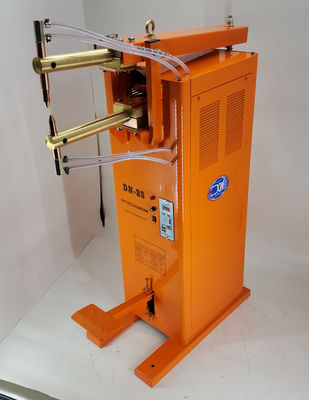

Water Cooling Welding Machine Foot Operated Spot Welder 0
Water Cooling Welding Machine Foot Operated Spot Welder 1

Images



Water Cooling Welding Machine Foot Operated Spot Welder 2



Please note: the pedal spot welding machine can be custom-made according to your requirements.





Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.


8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.


Water Cooling Welding Machine Foot Operated Spot Welder 3
Water Cooling Welding Machine Foot Operated Spot Welder 4Water Cooling Welding Machine Foot Operated Spot Welder 5

Water Cooling Welding Machine Foot Operated Spot Welder 6

Water Cooling Welding Machine Foot Operated Spot Welder 7

Water Cooling Welding Machine Foot Operated Spot Welder 8

Water Cooling Welding Machine Foot Operated Spot Welder 9

Models
Item
 DN-35 DN-25 DN-16 DN-10
Rated Power at 50% 35KVA 25KVA 16KVA 10KVA
Rated Primary Power 380V 380V 380V 380V
Rated Primary Current 92A 66A 42.1A 26.3A
Rated Duty Cycle 10% 10% 10% 10%
Secondary Unload Voltage 2.6～4.2V 2.3～3.55V 1.98～3.01V 1.65～2.4V
Adjustment Rated 4 4 4 4
Welding Time Adjustment 0～9.99s
0～9.99s
 0～9.99s 0～9.99s
Arms Length 280mm 280mm 280mm 260mm
Max. Welding Capacity 3+3mm 2.5+2.5mm 2+2mm 1.5+1.5mm
Cooling Ways
Main Transformer: Air air cooling    Electrode: Water cooling
