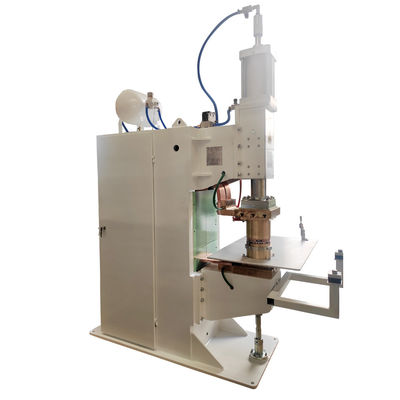

Foot Press Dc Multi Head Spot Welding Machine Water Cooling 160Kva Transformer
| Brand Name: | XWH |
| Model Number: | D(N)B--100, D(N)B--160, D(N)B--200, D(N)B--250 |
| MOQ: | 1 |
| Price: | USD29000-USD39000 |
| Packaging Details: | Wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Transformer Multi Head Spot Welding Machine
,450mm Spot Welding Machine
,160Kva Spot Welding Machine
Water Cooling 160 Kva Transformer Foot Press Dc Multi Head Spot Welding Machine
Product Introduction
The multi head spot welding machine is mainly composed of machine body, transformer, upper and lower projection welding platform (special projection welding machine), upper and lower welding arm body (special spot welding machine), gas circuit (pressurization) system, water circuit (cooling) system, controller and manual switch.
Technical Parameters
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
1. Stable machine structure upside and downside of electrodes apply the pressure mode with assistant stroke. The welding efficiency is much higher.
2. The transformer of welding machine adopts the special resistance welding machine, the silicon steel slice is featured of high magnetic: the inner water- cooled by force; stronger power and high duty ratio.
3. Controlled by micro-computer and can saved at most 16 sets of welding settings, which is quite convenient for different kinds of welding sheets.
4. Widely used in aerospace, automobile and automobile parts manufacturing, new energy and power battery and other special areas of high quality welding requirements.
Major Structure
Air Circuit (Pressurization) System
The air circuit (pressurization) system is composed of compressed air filter, pressure reducing valve, barometer, oil atomizer, electromagnetic air valve, cylinder and pedal switch. According to different requirements of users, there can be no auxiliary stroke, mechanical control or electrical control of auxiliary stroke. See the air circuit (pressurization) system diagram below.

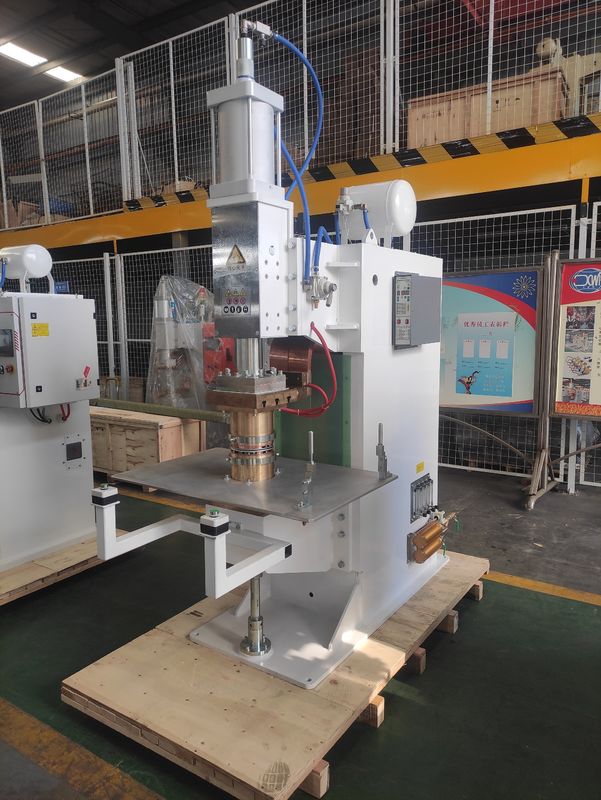

Reference Pictures
Application
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
