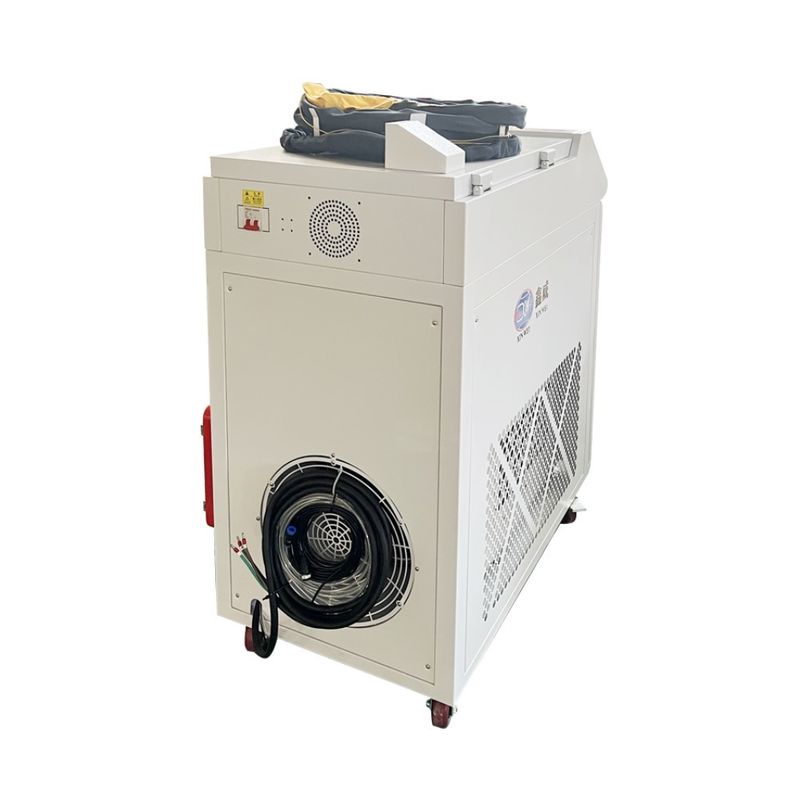

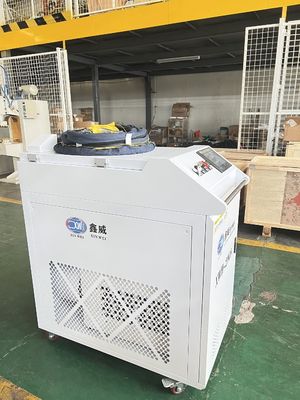

Aluminium Mini Fiber Handheld Laser Welding Machine Portable
| Brand Name: | XWH |
| Model Number: | XW-1000W, XW-1500W, XW-2000W, XW-3000W |
| MOQ: | 1 |
| Price: | USD3500-USD7500 |
| Packaging Details: | Wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
1000W Laser Welding Machine
,Aluminium Laser Welding Machine 1080nm
,Aluminium Handheld Laser Welder
Hand Aluminium Portable Mini Small Fiber Handheld Laser Welding Machine Price
Product Description
The hand-held optical fiber laser welding machine is a new generation of laser welding equipment, which belongs to non-contact welding. The operation process does not require pressurization. Its working principle is to directly irradiate the laser beam with high energy intensity on the surface of the material. Through the interaction between the laser and the material, the material is melted inside, and then cooled and crystallized to form a weld.
Technical Parameters
| Items/ Models | XW-1000W | XW-1500W | XW-2000W | XW-3000W |
| Laser Power | 1000W | 1500 | 2000W | 3000W |
| Laser Length | Customized | Customized | Customized | Customized |
| Total Power | ≤6KW | ≤7KW | ≤9KW | ≤9.5KW |
| Conduction Types | Optical Fiber | Optical Fiber | Optical Fiber | Optical Fiber |
| Output Mode | Standard QBH | Standard QBH | Standard QBH | Standard QBH |
| Laser Line | 1080±nm | 1080±nm | 1080±nm | 1080±nm |
| Power Supply | 220V±10% AC | 220V±10% AC | 220V±10% AC | 380V±10% AC |
| Working Humidity | <70% No Condensation | <70% No Condensation | <70% No Condensation | <70% No Condensation |
| Working Temperature | -10℃-45℃ | -10℃-45℃ | -10℃-45℃ | -10℃-45℃ |
| Cooling System | Equipped with water chiller | Equipped with water chiller | Equipped with water chiller | Equipped with water chiller |
| Welding speed | 0.7-2.0m/min | 0.7-2.0m/min | 0.7-2.0m/min | 0.7-2.0m/min |
| Operation System | Hand-held Welding | Hand-held Welding | Hand-held Welding | Hand-held Welding |
| Weight | ≤185KG | ≤185KG | ≤185KG | ≤185KG |
| Power Source | 380V/50Hz/40A | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| homing position | Red light indicator | Red light indicator | Red light indicator | Red light indicator |
| Dimension | 1000*600*1200mm | 1000*600*1200mm | 1000*600*1200mm | 1000*600*1200mm |
Advantages
1. Highest and highest accuracy and precision
The main advantage you may gain is the accuracy of welding. Laser welding is not a problem even if you are welding small parts and assemblies.
2. Weld consistency
Since you manually set the speed, power and mode, even if you need to weld a large number of workpieces, you can expect the welds to be consistent.
3. Ability to create and produce complex welds
Some welding techniques, such as MIG welding and TIG welding, are not suitable for complex welding. This is because the available electrodes are limited. At that time, laser welding had risen to a higher level. No matter how complex a weld looks, laser welding can be realized.
4. The weld is more durable
Stronger welding is possible. You do not need welding filler materials, which can provide excellent strength and durability.
Schematic Diagram of Product Structure
①Hand held welding joint ②Consumable accessories kit
③Control Panel④Optical Master ⑤Wire Feeder ⑥Consumable accessories kit
⑦Emergency Stop Switch, Key Switch, Power Button ⑧Conducting Wire
Details
Handheld welding gun head
Full automatic wire feeder
Touch screen
Constant temperature water chiller
How do you use a hand-held laser welder?
① The first step is to turn on the engine. Make sure to connect it with the appropriate voltage required by the machine.
② Activate the emergency stop button and the laser generator button. This will open the screen or interface.
③ Activate laser source and water cooler/cooler.
④ Use the interface to specify power, mode and speed according to the thickness of the material.
⑤ Grasp the laser welder and adjust the focal length of the nozzle.
⑥ Test it with scrap to see if the specification is correct.
Application
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
