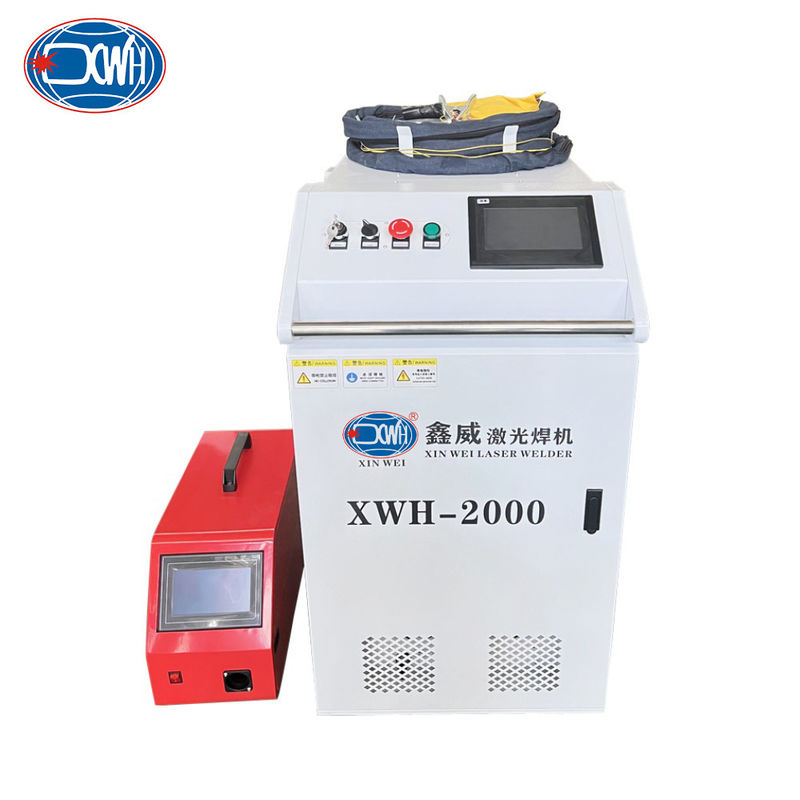

Manual Cnc Portable Stainless Steel Fiber Laser Cutting Welding Machine Handheld
| Brand Name: | XWH |
| Model Number: | XW-1000W, XW-1500W, XW-2000W, XW-3000W |
| MOQ: | 1 |
| Price: | USD3100-USD6000 |
| Packaging Details: | Wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Cnc Fiber Laser Welding Machine
,SS Fiber Laser Welding Machine
,ISO Handheld Laser Welder Machine
China Manual Best Cnc Stainless Steel Hand Handheld Fiber Laser Welding Machine
Product Introduction:
Portable laser welding machine is a new type of welding, is also one of the important aspects of the application of laser material processing technology. Laser welding is mainly for the welding of thin-walled materials and precision parts. The welding process belongs to the heat conduction type, that is, laser radiation heats workpiece surface and surface heat diffuses to the interior through heat conduction. By controlling the parameters of laser pulse width, energy, peak power and repetition rate, the workpiece is melted to form a specific molten pool. The laser welder is not only for laser welding, but also for rusts removal and cutting.
Technical Parameters:
| Items/ Models | XW-1000W | XW-1500W | XW-2000W | XW-3000W |
| Laser Power | 1000W | 1500 | 2000W | 3000W |
| Laser Length | Customized | Customized | Customized | Customized |
| Total Power | ≤6KW | ≤7KW | ≤9KW | ≤9.5KW |
| Conduction Types | Optical Fiber | Optical Fiber | Optical Fiber | Optical Fiber |
| Output Mode | Standard QBH | Standard QBH | Standard QBH | Standard QBH |
| Laser Line | 1080±nm | 1080±nm | 1080±nm | 1080±nm |
| Power Supply | 220V±10% AC | 220V±10% AC | 220V±10% AC | 380V±10% AC |
| Working Humidity | <70% No Condensation | <70% No Condensation | <70% No Condensation | <70% No Condensation |
| Working Temperature | -10℃-45℃ | -10℃-45℃ | -10℃-45℃ | -10℃-45℃ |
| Cooling System | Equipped with water chiller | Equipped with water chiller | Equipped with water chiller | Equipped with water chiller |
| Welding speed | 0.7-2.0m/min | 0.7-2.0m/min | 0.7-2.0m/min | 0.7-2.0m/min |
| Operation System | Hand-held Welding | Hand-held Welding | Hand-held Welding | Hand-held Welding |
| Weight | ≤185KG | ≤185KG | ≤185KG | ≤185KG |
| Power Source | 380V/50Hz/40A | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| homing position | Red light indicator | Red light indicator | Red light indicator | Red light indicator |
| Dimension | 1000*600*1200mm | 1000*600*1200mm | 1000*600*1200mm | 1000*600*1200mm |
Features:
1. Handheld welding gun head: portable and flexible, flexibly welding at any angle.
2. Full automatic wire feeder: speed is adjustable and welding wire is compatible (0.8mm/1.0mm 1.2mm/1.6mm).
3. Touch screen: clear functions, easy to operate.
4. Constant temperature water chiller: built-in water chiller to avoid wire bondage, with good dust-proof and anti condensation effect.
5. It is mainly used for the welding of aluminum sheet, iron sheet, stainless steel sheet, copper sheet and other metal sheets of the same material, as well as the mixed welding of aluminum copper, stainless steel copper and other materials.

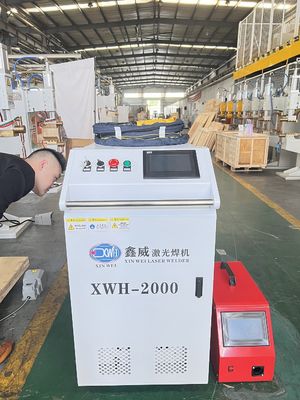

Product Show:
Details:
Handheld welding gun head
Full automatic wire feeder
Touch screen
Constant temperature water chiller
Environmental Requirements:
Vibration prevention: because the optical components of the laser welding machine are very accurate, if there is vibration at the working site of the laser welding machine, it is easy to cause the alignment of the optical equipment, resulting in weak laser output, reduced spot quality, or even no laser. Therefore, in the working site of the laser equipment, please pay special attention to the installation position of the equipment, not near the roadside, bridge, or near the drilling machine, milling machine, lathe planer and other heavy processing equipment, If necessary, in such an environment, it is necessary to take adequate anti vibration measures to reduce vibration.
Application:
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
