Dc Pro Pulse Auto Body Portable Spot Welder for Automotive Hand Held Point Welding
| Brand Name: | XWH |
| Model Number: | DN2 |
| MOQ: | 1 Set |
| Price: | $3500- $5000.00 |
| Packaging Details: | wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Pulse Auto Body Portable Spot Welder
,Pulse Portable Spot Welder
,Handheld Point Welding Machine
Product Description
Portable spot welding machine is suitable for fixed workpieces and mobile welding spot welding, it is mainly used for the occasions when general stationary spot welding machine can't or is inconvenience of the welding spot welding. The thickness of welding is commonly 0.5 ~ 3 mm, the largest welding thickness can up to 6 mm under special circumstances. The portable spot welder can be weld low carbon steel, coated steel, stainless steel plate and other occasions that we need the resistance welding. It is suitable for automobile, agricultural vehicle, motorcycle, aviation, medical instrument, sheet metal structural parts, agricultural machinery, cabinet, light industrial machinery, construction and other industries.
| Item/models | Unit | DN2-31X | DN2-31C | DN2-40X | DN2-40C | DN2-63X | DN2-63C |
| power at 50% | KVA | 31 | 31 | 40 | 40 | 63 | 63 |
| Maximum short circuit current | KVA | 14 | 14 | 18 | 18 | 20 | 20 |
| Secondary unload voltage | V | 5.58 | 5.58 | 6.8 | 6.8 | 7.9 | 7.9 |
| Voltage at 50Hz/60Hz | V | 380 | 380 | 380 | 380 | 380 | 380 |
| Distance between the arms | MM | 168-288 | 100 | 168-328 | 100 | 168-428 | 100 |
| Max.strength at electrodes | N | 3000 | 3000 | 3500 | 3000 | 3500 | 3000 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke of cylinder | MM | 70 | 50 | 100 | 50 | 100 | 50 |
| Max. arm length | MM | 750 | 350 | 1000 | 450 | 1100 | 500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 |
| Cooling water flow | L/MIN | 4 | 4 | 4 | 4 | 4 | 4 |
♦ Distance,angle and length of welding arm can be made according to customers' requests.
Features:
1. Convenient operation and power-saving
2. Simple structure and convenient maintenance
3. The machine can rotate 360°as the turntable is configured with bearings
4. It’s cost-effictive and not easy to damage

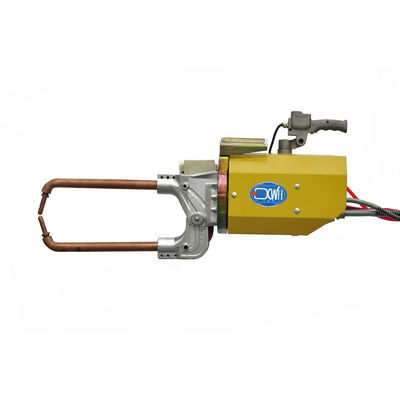

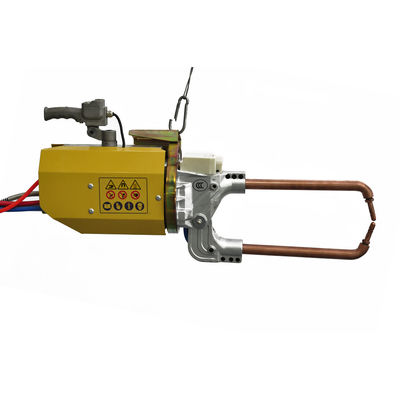

Welding Tongs
Product Service Conditions
The welding machine can work normally under the following conditions:
1. The product shall work normally under the following grid power supply quality conditions:
Quality of power supply network: AC 380V 50Hz
Voltage fluctuation (when the frequency is rated) ＜± 10%
Frequency fluctuation (when the voltage is rated) ＜± 2%
2. Good grounding device:
There should be a good grounding device independent of the power supply near the welding machine. The diameter of the grounding wire and the incoming wire of the welding machine should be the same to ensure safety.
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
