Spot Welder Storage Energy Capacitive Capacitor Discharge Spot Welding Machine
| Brand Name: | XWH |
| Model Number: | DTN-500J, DTN-800J |
| MOQ: | 1 |
| Price: | USD3000-USD4500 |
| Packaging Details: | Wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Capacitor Discharge Spot Welding Machine
,Storage Energy Capacitor Spot Welder
,CE Capacitor Discharge Spot Welder

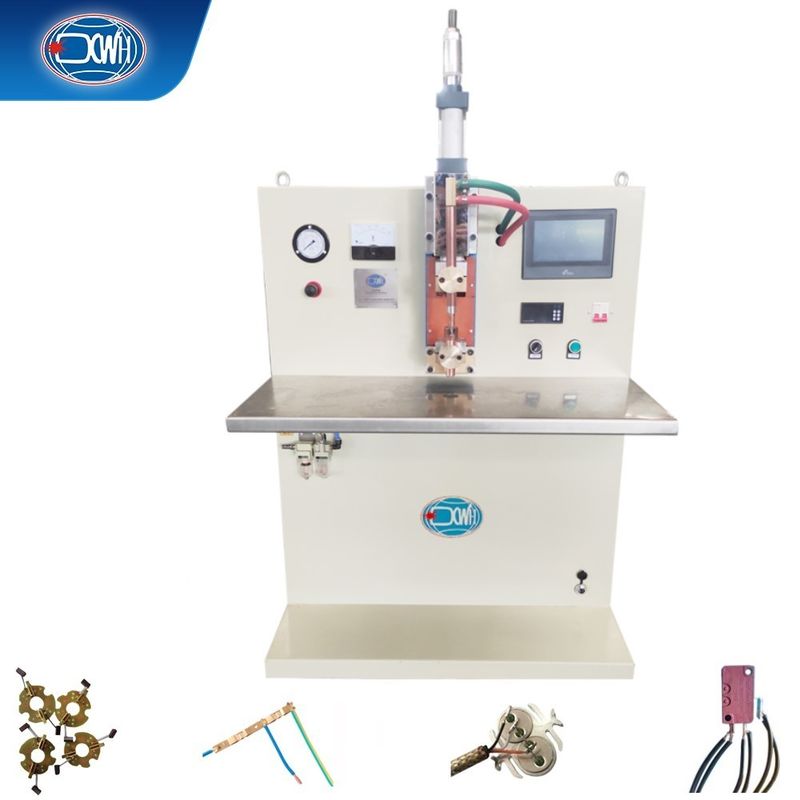

Spot Welder Storage Energy Capacitive Capacitor Discharge Spot Welding Machine
Product Introduction:
Capacitive energy storage point projection welding machine uses capacitors to store energy. When welding, the capacitors discharge instantaneously, and the released energy can melt and weld small areas of solder joints. Compared with other resistance welding methods such as AC spot welding machines, using it from the power grid has lower instantaneous power, balanced load in all phases, high power factor, and can provide concentrated energy to the welding area. It can obtain welded parts with good surface quality and small deformation, and can weld some difficult to weld colored metals with good thermal conductivity.
Advantages:
1. Fast charging and discharging circuit, stable voltage, high charging and discharging frequency.
2. The fast logic circuit can ensure that the welder will not discharge until the capacitor is charged to the preset voltage. (It can ensure that the capacitor does not discharge when the voltage is below the preset value during fast welding) so as to ensure the welding quality.
3. Digital regulator can adjust the voltage at both ends of the capacitor from 40V to 1V accuracy 400 v.
4. Accurate digital circuit can control the voltage fluctuation error within 0.5%.
Technical Parameters:
| Model | Input voltage | Capacitance | Energy Storage | Electrode Pressure | The Max. welding Ihickness | Weigh |
| DTN-500J | 220V | 4500μF | 500j | 1000N | 1+1MM | 200KG |
| DTN-800J | 220V | 8000μF | 800j | 3900N | 1.2+1.2MM | 450KG |
Details:
Easy to operate
Capacitive discharge welding, short time solder joints, small deformation, easy to operate.
High welding quality
Fully functional, good performance, stable voltage, good qualitative analysis and high welding quality.
Different electrodes

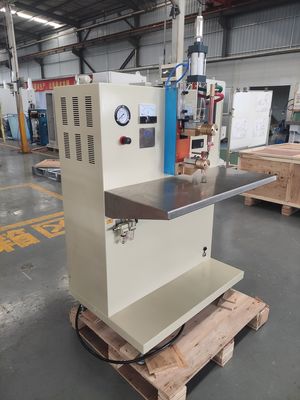

Scene Images:
Application:
FAQ:
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
