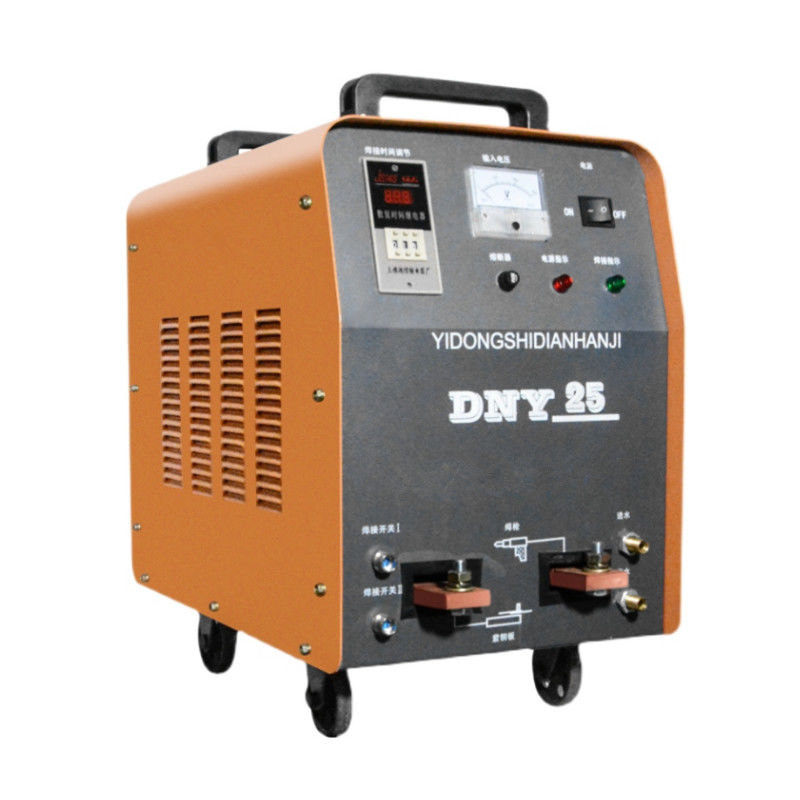

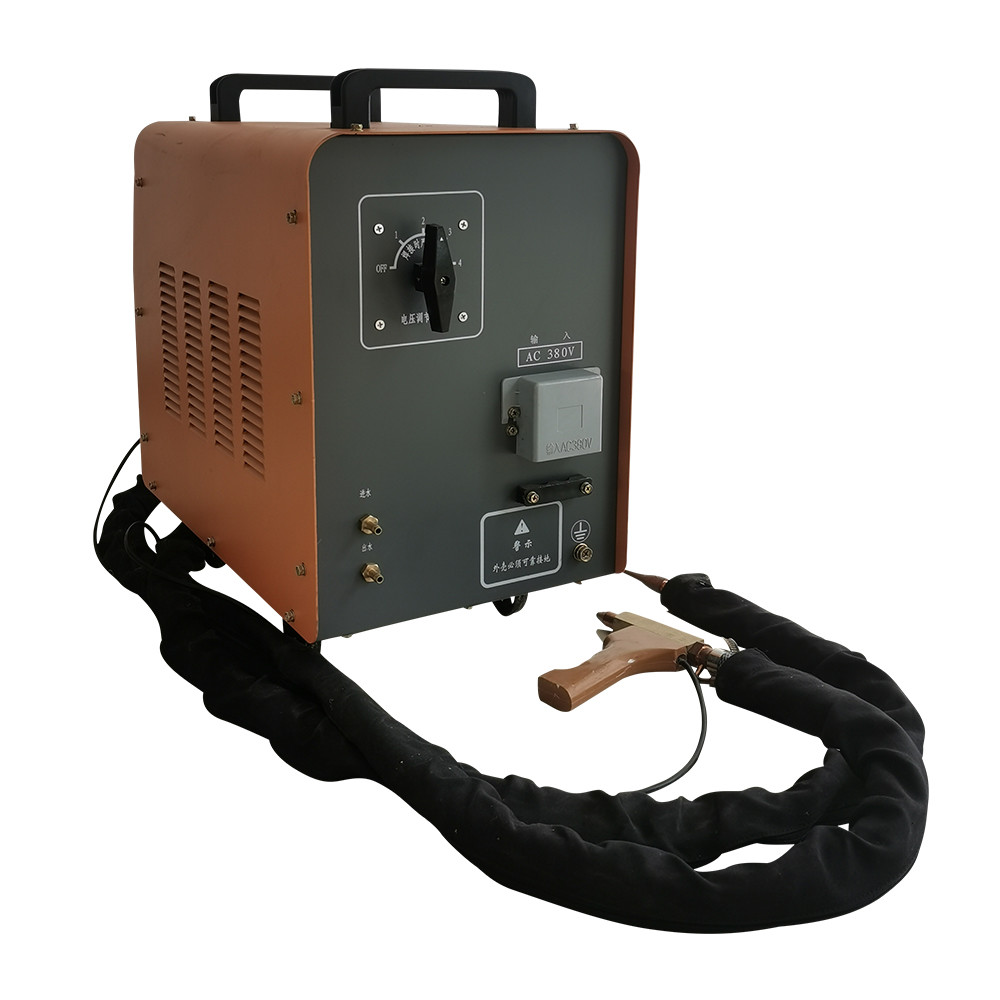

Inverter Stainless Steel Pipe Wire Stick Aluminum Spot Welding Machine Portable

  • Inverter Stainless Steel Pipe Wire Stick Aluminum Spot Welding Machine Portable
  • Inverter Stainless Steel Pipe Wire Stick Aluminum Spot Welding Machine Portable
  • Inverter Stainless Steel Pipe Wire Stick Aluminum Spot Welding Machine Portable
Place of Origin China
Brand Name XWH
Certification CE
Model Number DNY
Minimum Order Quantity 1 Set
Price $600.00 - $650.00
Packaging Details wooden Case
Delivery Time 15 Working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 50 Set/Sets per Week
Product Details
Product Name Portable Mobile Stick Spot Welder Welding Machine Machine Type Resistance Welding Machine
Rated Capacity 16-80KVA After Warranty Service Video Technical Support, Online Support, Spare Parts
Weight (KG) 80-120KG Function Sheet Metal Spot Welding
Rated Duty Cycle 10% Voltage 220V/380V
Highlight

80KVA Aluminum Spot Welding Machine

,

Inverter Aluminum Spot Welding Machine

,

Stainless Steel Pipe Stick Spot Welder
Leave a Message
Product Description


Inverter Stainless Steel Pipe Wire Stick Aluminum Portable Spot Welding Machine


Product Description


Model Parameter
DNY-80
DNY-50
DNY-35
DNY-25
DNY-16
Rated power
80KVA
50KVA
35KVA
25KVA
16KVA
Rated input power
380V
380V
380V
380V
380V
Rated primary current
211A
132A
92A
66A
42.1A
Rated duty cycle
10%
10%
10%
10%
10%
Secondary unload voltagea djustment
9.5～19V
7.6～15.2V
7.6～12.7V
7.6～12.7V
6.2～11V
Adjustment level
2
2
1
4
4
Welding time adjustment
0～250CYC
0～250CYC
0～250CYC
0～9.99s
0～9.99s
Secondary cable length
2m
2m
2m
2m
2m
Welding thickness
(0.2~1.5)+4mm
(0.2~1.5)+3.5mm
(0.2~1.2)+3mm
(0.2~1)+3mm
(0.1~0.6)+2mm
Cooling method
Main transformer: water cooling Electrode: water cooling





Welding method



This machine is a resistance welding machine and the principle is to convert electric energy into heat energy through a transformer, melting iron plate. The welding torch is connected with a welding wire, and the ground wire is connected to the copper plate. The workpiece is in contact with the copper plate and the welding torch is put on the workpiece with a little force to complete the welding.





Features:



1. Water-cooling welding machine ensures the welding quality.

2. Small size and light weight make a flexible and efficient welding.

3. Equipped with two welding guns, more convenient to weld.

4. Widely used for welding of carbon steel, stainless steel, iron plate, iron wire, wire mesh, galvanized iron sheet, auto sheet metal and other metal materials.





Fittings
