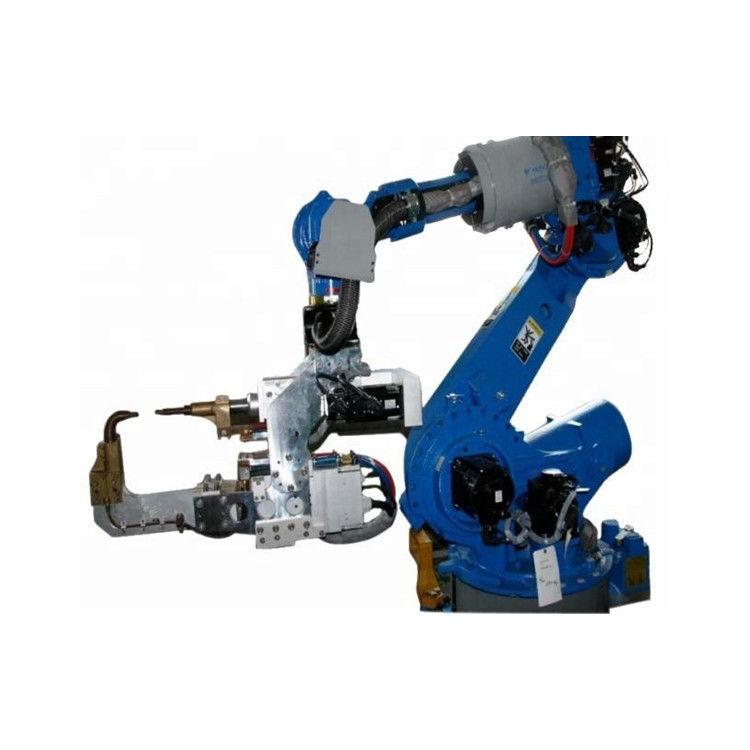

Car Copper Metal Robotic Spot Gun Welding Machine M5 160 KVA
Product Details
| Product Name | Gun Welding Machine | Rated Capacity | 160 KVA |
|---|---|---|---|
| Throat | Customized | Weight | 200kg |
| Max. Welding Thickness | 6mm+6mm | MOQ | 1 |
| Voltage | 500V | Power | 100KVA, 160KVA |
| Function | Spot Weldinng | Feature | Robotic Welding |
| Highlight | Metal Robotic Spot Gun Welding Machine,160 KVA Gun Welding Machine,Car Copper Robotic Spot Welding Gun |
||
Product Description
160 KVA Car Copper Metal Robotic Spot Gun Welding Machine M5 Price
Product Introduction
| Model Items | DB3-160 |
| Tranformer's Rated Capacity | 160 KVA |
| Primary Power | 500V /1000Hz |
| Max Shortcut Current | 2.2 KV |
| Max Gun Mouth Current's Open | 250 MM |
| Max Electrode Pressure | 4500N |
| Flowrate of Cooling Water | 15 L/min |
| Arm Material | CuCrZr |
| Connecting Way Robot | Up, Down, Left, Right, Backward |
| Servo Motor | KUKA, ABB, Delta |
| welding thickness | 0.8+0.8, 2+2, 2.5+2.5 |
Advantages:
1. The opening of the welding guns is precisely controlled by the servo robot, the cycle time of the welding can be greatly reduced.
2. It can save much time for decreasing the opening since the guns' expanding can be adjusted according to the working conditions as long as no collision or interference accrurs.
3. When the welding guns closed and pressurized, not only the pressure can be regulated, but also the electrodes can close softly, which will reduce the impact of deformation and noise.
Company Information
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products.Now it is located in Eastern Industrial Zone, Xindu, Chengdu.
Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.
Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance SpotWelding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.
Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance SpotWelding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.
Certifications
Exhibition Pictures
Service
Our engineers were intalling portable spot welding machine in car manufacturer's workshop oversea.
Our engineers will train customer how to operate, repair and maintaining machines and so on..
Our engineers will train customer how to operate, repair and maintaining machines and so on..
Transportation Display
FAQ
1. When can you arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5.How to contact you?
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE
foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5.How to contact you?
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE
foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
| Model Items | Unit | DB3-100 | DB3-160 |
| Tranformer's Rated Capacity | KVA | 100 | 160 |
| Primary Power | 500V 1000Hz | 500V 1000Hz | |
| Max Shortcut Current | KA | 1.6 | 2.2 |
| Max Gun Mouth Current's Open | mm | 150 | 250 |
| Max Electrode Pressure | N | 4000N | 4500 |
| Flowrate of Cooling Water | L/min | 15 | 15 |
| Arm Material | CuCrZr | CuCrZr | |
| Connecting Way Robot | Up,Down,Left,Right,Backward | Up,Down,Left,Right,Backward | |
| Servo Motor | KUKA,ABB, | KUKA,ABB,台达等品牌 | |
| welding thickness | 0.8+0.8,1.2+1.2,1.5+1.8 | 0.8+0.8,1.2+1.2,2+2,2.5+2.5 |
| DB3-100 |
