Stainless Steel Hand Auto Body Manual Spot Welding Machine Mini Portable
| Brand Name: | XWH |
| Model Number: | XW |
| MOQ: | 1 |
| Price: | $500.00 - $700.00 |
| Packaging Details: | Wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
Stainless Steel Hand Auto Body Diy Portable Mini Manual Spot Welding Machine Price
Frequency:
50HZ/60HZ
Dimensions:
Customized Size
Welding Time:
0～9.99s
Lead Time:
3-5days
Machine Type:
Pedal Welding Machine
Max. Welding Thickness:
3+3.mm
Supply Ability:
500 Set/Sets per Month
Highlight:
Auto Body Manual Spot Welding Machine
,SS Hand Manual Spot Welding Machine
,Mini Spot Welder Manual
Product Description
Stainless Steel Hand Auto Body Diy Portable Mini Manual Spot Welding Machine Price
Product Introduction

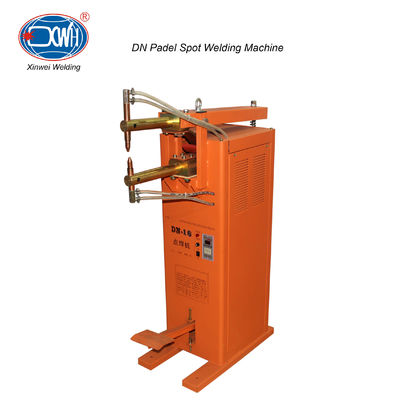

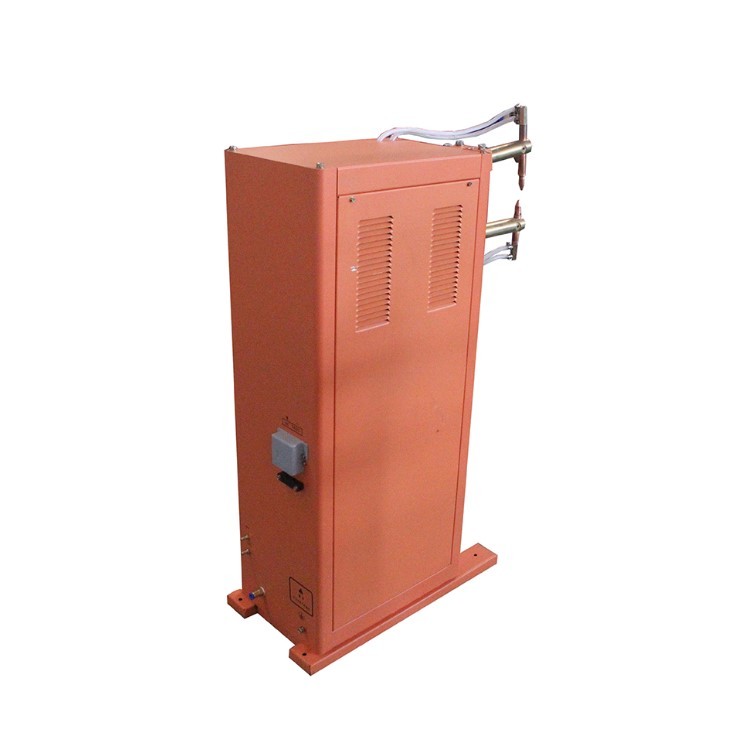

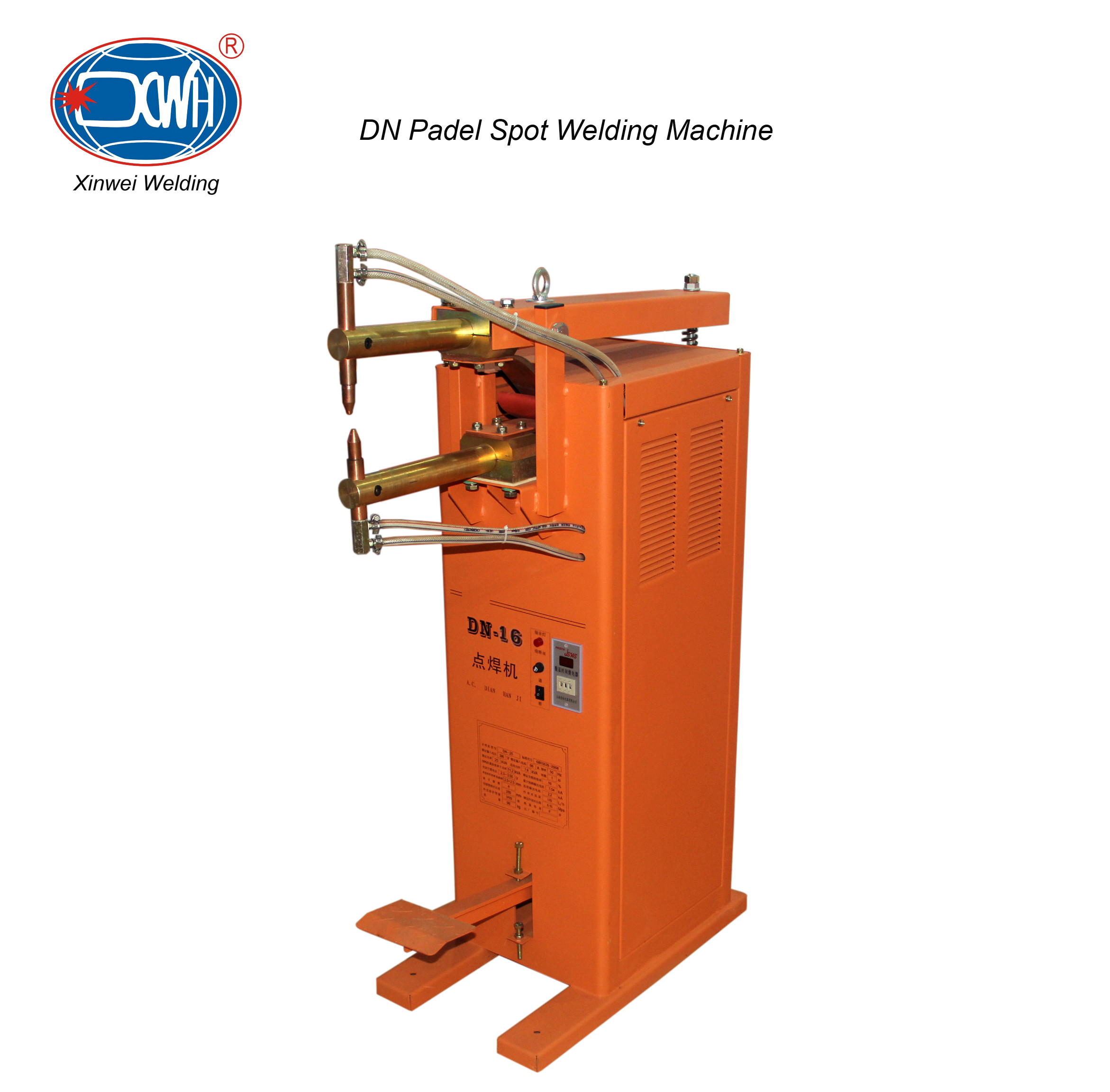

Pedal spot welding machine is easy to operate and foot switch is used to control welding. Welding current
and other parameters can be displayed. It can weld stainless steel, low carbon steel, etc. The welding arm
can be customized to meet the welding requirements of different workpieces.
| Models Item | DN-35 | DN-25 | DN-16 | DN-10 |
| Rated Power at 50% |
35KVA | 25KVA | 16KVA | 10KVA |
| Rated Primary Power | 380V | 380V | 380V | 380V |
| Rated Primary Current | 92A | 66A | 42.1A | 26.3A |
| Rated Duty Cycle | 10% | 10% | 10% | 10% |
| Secondary Unload Voltage | 2.6～4.2V | 2.3～3.55V | 1.98～3.01V | 1.65～2.4V |
| Adjustment Rated | 4 | 4 | 4 | 4 |
| Welding Time Adjustment | 0～9.99s | 0～9.99s | 0～9.99s | 0～9.99s |
| Arms Length | 280mm | 280mm | 280mm | 260mm |
| Max. Welding Capacity | 3+3mm | 2.5+2.5mm | 2+2mm | 1.5+1.5mm |
| Cooling Ways | Main Transformer: Air Electrode: Water | |||
Feature:
1) The main transformer is made of imported cold-rolled silicon steel, less power loss and low no-load current.
2) Pivoting arm, pedal, spring press structure, easy to operate, The structure in graceful form, durable and cheap.
3) In main circuit adopts thyristors as non-contactor switch, quick switch off and reliable. Welding time can be
controlled and adjusted precisely, good welding repeatability, easy to maintenance, can realize high quality weld.
4) Adopt the digital control system; it is widely used in mild steel, wire, stainless steel plate and so on.
Company Information
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.
Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.
Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance Spot Welding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.
