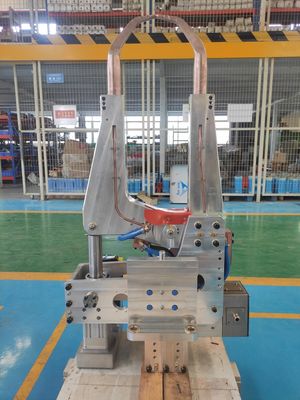

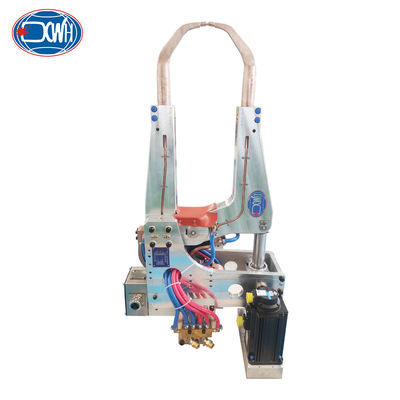

Automotive Resistance C Type Of Robotic Spot Welding Machine Gun For Automobile
Product Introduction:
Spot welding robot welding tongs are another new type of welding tongs, following manual and automatic welding tongs. They have a significant impact on the effectiveness and potential of robots. By designing four unique floating mechanisms with automatic compensation function for spot welding robot welding tongs, automatic adjustment welding and electrode wear adjustment functions that cannot be achieved by machine and human welding are achieved.
Advantages:
1. It can weld high-strength plates, aluminum, galvanized metal and other materials with good welding effects.
2. It can set preheating current, welding current, and tempering current, with a slow increase and decrease function for current, and less welding spatter.
3. Counting function: Counting the number of welding times and the number of workpieces.
4. Automatic mold repair and electrode replacement.
5. Equipped with single/continuous spot welding function.
6. Fault diagnosis and automatic protection function, built-in air switch and leakage detection, automatic welding repair function.
7. Easy installation and use.
8. Communication and remote control functions.
9. The circuit is concise, highly integrated, and intelligent, greatly reducing the failure rate and making it more convenient for maintenance and upkeep.
Technical Parameters:
| Models/Item | unit | DB3-100 | DB3-160 |
| Transformer’ s Rated Capacity | KVA | 100 | 160 |
| Primary Power | V | 500V 1000Hz | 500V 1000Hz |
| Max Shortcut Current | KV | 1.6 | 2.2 |
| Max Gun Mouth Current’s Open | MM | 150 | 250 |
| Max Electrode Pressure | N | 4000 | 4500 |
| Cooling Consumption | L/min | 15 | 15 |
| Arm Material | CuCrZr | CuCrZr | |
| Connecting Way Robot | Up, down,left,right,backward | Up, down,left,right,backward | |
| Servo motor | KUKA,ABB,Delta | KUKA,ABB,Delta | |
| Welding thickness | MM | 0.8+0.8,1.2+1.2,1.5+1.8 | 0.8+0.8,1.2+1.2,2+2,2.5+2.5 |
Drawings:
X-type robot welding guns: the two welding arms of the X-type welding tongs are on the same parallel level, and the welding shape and the action process are closed and open during welding, that is, the X-type welding guns.
C-type robot welding guns: the moving side of the C-type welding guns is coaxial with the motor. During welding, the moving side moves up and down. The rising and stationary side electrode caps are combined, and the jaw shape is C-shaped.
Scene Images:
Application:
FAQ:
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
