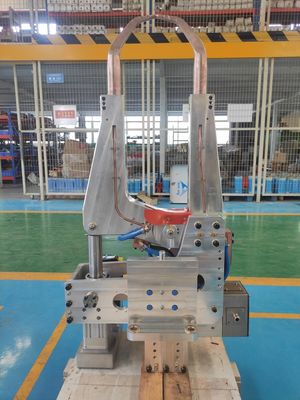

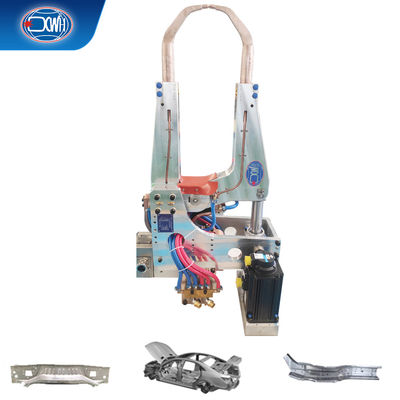

Cnc Resistance Soldadora De Punto Robot X Type Of Robotic Spot Welding Machine Gun
Product Details
| Product Name | Robot X Type Of Robotic Spot Welding Machine Gun | Function | Spot Welding |
|---|---|---|---|
| Application | Welding Auto Body | Keyword | Automobile Welding |
| Driving Mode | Servo Driving | Feature | Efficient Flexible |
| Welding Material | Alloy Metal Aluminum Stainless Steel | Advantage | Save Labor High Efficiency |
| After Warranty Service | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided | Free Spare Parts, Field Installation, Commissioning And Training |
| Highlight | IP21 Dent Remover Kit,55A Welding Current Dent Remover Kit,Stainless Steel Car Dent Puller |
||
Product Description
Cnc Resistance Soldadora De Punto Robot X Type Of Robotic Spot Welding Machine Gun
Product Introduction:
Spot welding robot welding tongs are another new type of welding tongs, following manual and automatic welding tongs. They have a significant impact on the effectiveness and potential of robots. By designing four unique floating mechanisms with automatic compensation function for spot welding robot welding tongs, automatic adjustment welding and electrode wear adjustment functions that cannot be achieved by machine and human welding are achieved.
Advantages:
1. Save labor costs (1 machine=3-5 people), improve labor productivity, improve worker labor intensity, and be able to work 24 hours in hazardous environments.
2. High welding accuracy and quality, with automatic current switching at any time, welding thickness of 0.1mm-5mm.
3. Welding pressure can be set, driven by servo motor.
4. It can match any manufacturer's robot.
5. Welding arm: aviation aluminum.
6. A robot can control multiple welding guns (3) and intermediate frequency (intermediate frequency inverter welding machine).
7. It can store 32 welding specifications for users to call, and the pressure can be adjusted to reduce impact deformation and noise.
Technical Parameters:
| Models/Item | unit | DB3-100 | DB3-160 |
| Transformer’ s Rated Capacity | KVA | 100 | 160 |
| Primary Power | V | 500V 1000Hz | 500V 1000Hz |
| Max Shortcut Current | KV | 1.6 | 2.2 |
| Max Gun Mouth Current’s Open | MM | 150 | 250 |
| Max Electrode Pressure | N | 4000 | 4500 |
| Cooling Consumption | L/min | 15 | 15 |
| Arm Material | CuCrZr | CuCrZr | |
| Connecting Way Robot | Up, down,left,right,backward | Up, down,left,right,backward | |
| Servo motor | KUKA,ABB,Delta | KUKA,ABB,Delta | |
| Welding thickness | MM | 0.8+0.8,1.2+1.2,1.5+1.8 | 0.8+0.8,1.2+1.2,2+2,2.5+2.5 |
Drawings:
X-type robot welding guns: the two welding arms of the X-type welding tongs are on the same parallel level, and the welding shape and the action process are closed and open during welding, that is, the X-type welding guns;
C-type robot welding guns: the moving side of the C-type welding guns is coaxial with the motor. During welding, the moving side moves up and down. The rising and stationary side electrode caps are combined, and the jaw shape is C-shaped.
Scene Images:
Application:
FAQ:
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
