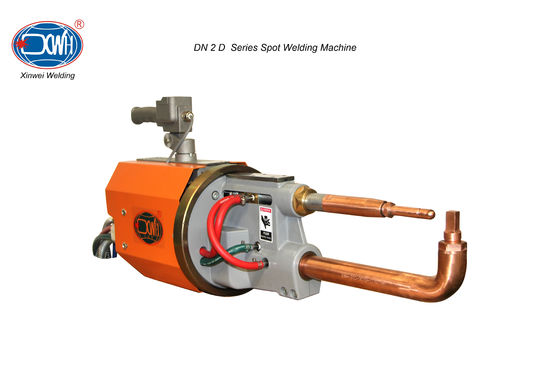

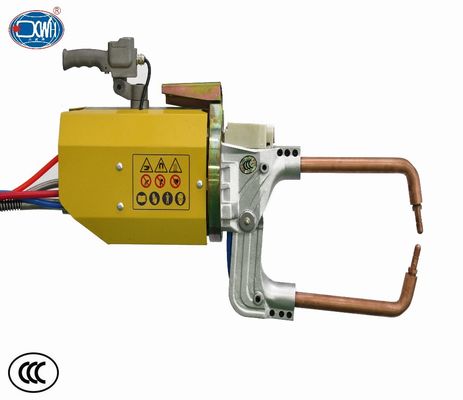

One Side AC220V 3.5KN Portable Spot Welding Machine For Auto Body

  • One Side AC220V 3.5KN Portable Spot Welding Machine For Auto Body
  • One Side AC220V 3.5KN Portable Spot Welding Machine For Auto Body
  • One Side AC220V 3.5KN Portable Spot Welding Machine For Auto Body
Place of Origin China
Brand Name XWH
Certification CE
Model Number DN2
Minimum Order Quantity 1 Set
Price $3,000.00-$5,000.00
Packaging Details wooden Case
Delivery Time 15 Working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500 Set/Sets per Week
Product Details
Product Name One Side Car Body Repair Spot Welder Price List For KitcKen Cage Machine Type Auto Repair Tools
Rated Capacity Customized After Warranty Service Video Technical Support, Online Support, Spare Parts, Field Maint
Weight (KG) 80 KG Max. Welding Thickness 3.5+3.5mm Or 2+2+2mm
Rated Duty Cycle 50% Voltage 380V/220V
Highlight

AC220V portable spot welding machine

,

3.5KN portable spot welding machine

,

AC220V auto body spot welder
Leave a Message
Product Description
One Side Car Body Repair Spot Welder Price List For kitcKen Cage
Details


Features



Item/models Unit DN2-35X DN2-35C DN2-45X DN2-45C DN2-65X DN2-65C
power at 50% KVA 35 35 45 45 65 65
Maximum short circuit current KVA 15 15 16 16 46 46
Secondary unload voltage V 5.7 5.7 6.3 6.3 8 8
Voltage at 50Hz/60Hz V 380 380 380 380 380 380
Distance between the arms MM

120-280



 100 120-330 100 160-430 100
Max.strength at electrodes N 3500 3500 3500 3500 3500 3500
Working stroke MM 15-45 15-25 15-45 15-25 15-45 15-25
Max.stroke MM 50-120 60/100/140 50-120 60/100/140 50-120 60/100/140
Arm length MM 240-600 200-500 300-800 200-500 400-1100 200-500
Compressed Air supply MPA 0.5 0.5 0.5 0.5 0.5 0.5
Max thickness of mild steel sheet with min.length s arm MM 3+3 3+3 4+4 4+4 5+5 5+5
With 500mm arms MM 2+2 2+2 3+3 3+3 3+3 3+3
With maximum length arms MM 1.2+1.2 1.2+1.2 2+2 1.8+1.8 2.0+2.0 2.0+2.0
Cross wire maximum MM 14+14 14+14 16+16 16+16 20+20 20+20
Cooling water pressure drop MPA 0.05 0.05 0.05 0.05 0.05 0.05
Cooling water flow l/MIN 12 12 12 12 12 12





Features



The welding machine adopts modular design, the welding transformer, welding tongs and pressurized cylinder are integrated with the body, compact structure, energy saving, reliable and reliable. The welding machine is equipped with a three-degree-of-freedom rotating device, plus the three-freedom of the suspension rack configuration. The mobile device can realize 360-degree welding without dead angle, and the operation is light and flexible. The welding machine can also be used as a fixed spot welding machine after being fixed.



Product use conditions



The welding machine should work under the following conditions.



Cooling water source: The pressure of the cooling water source is 0.2～0.3 MPa, the flow should meet the technical requirements of the welding machine, the water quality should meet the industrial water standard, and the inlet water temperature should be 5～30℃;



Compressed air: the air source pressure is 0.8 MPa, and the flow rate should meet the technical requirements of the welding machine;

Power supply: 380V AC power supply



Grounding device, there is a good grounding device independent of the power supply near the welding machine.



One Side AC220V 3.5KN Portable Spot Welding Machine For Auto Body 0One Side AC220V 3.5KN Portable Spot Welding Machine For Auto Body 1One Side AC220V 3.5KN Portable Spot Welding Machine For Auto Body 2
