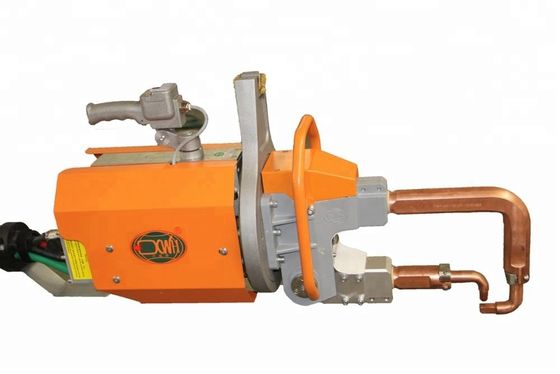

X Type 50Hz Multi Point Pneumatic Spot Welding Machine For Sheet Metal

  • X Type 50Hz Multi Point Pneumatic Spot Welding Machine For Sheet Metal
  • X Type 50Hz Multi Point Pneumatic Spot Welding Machine For Sheet Metal
Place of Origin China
Brand Name XWH
Certification CE
Model Number DN2
Minimum Order Quantity 1 Set
Price $3,000.00-$5,000.00
Packaging Details wooden Case
Delivery Time 15 Working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500 Set/Sets per Week
Product Details
Product Name X Type Multi Point Pneumatic Spot Welding Machine For Sheet Metal Machine Type Auto Repair Tools
Rated Capacity Customized After Warranty Service Video Technical Support, Online Support, Spare Parts, Field Maint
Weight (KG) 80 KG Max. Welding Thickness 3.5+3.5mm
Rated Duty Cycle 50% Voltage 380V
Highlight

X type pneumatic spot welding machine

,

50Hz pneumatic spot welding machine

,

50Hz multi point spot welding machine
Leave a Message
Product Description
X Type Multi Point Pneumatic Spot Welding Machine For Sheet Metal


Details


Features



Item/models Unit DN2-35X DN2-35C DN2-45X DN2-45C DN2-65X DN2-65C
power at 50% KVA 35 35 45 45 65 65
Maximum short circuit current KVA 15 15 16 16 46 46
Secondary unload voltage V 5.7 5.7 6.3 6.3 8 8
Voltage at 50Hz/60Hz V 380 380 380 380 380 380
Distance between the arms MM

120-280



 100 120-330 100 160-430 100
Max.strength at electrodes N 3500 3500 3500 3500 3500 3500
Working stroke MM 15-45 15-25 15-45 15-25 15-45 15-25
Max.stroke MM 50-120 60/100/140 50-120 60/100/140 50-120 60/100/140
Arm length MM 240-600 200-500 300-800 200-500 400-1100 200-500
Compressed Air supply MPA 0.5 0.5 0.5 0.5 0.5 0.5
Max thickness of mild steel sheet with min.length s arm MM 3+3 3+3 4+4 4+4 5+5 5+5
With 500mm arms MM 2+2 2+2 3+3 3+3 3+3 3+3
With maximum length arms MM 1.2+1.2 1.2+1.2 2+2 1.8+1.8 2.0+2.0 2.0+2.0
Cross wire maximum MM 14+14 14+14 16+16 16+16 20+20 20+20
Cooling water pressure drop MPA 0.05 0.05 0.05 0.05 0.05 0.05
Cooling water flow l/MIN 12 12 12 12 12 12





The spot welding machine is composed of a machine base, a pressure mechanism, a welding circuit, an electrode, a transmission mechanism, a switch and a regulating device, and the main part is a pressure mechanism, a welding circuit and a control device.
Pressure mechanism is the mechanism responsible for pressure in resistance welding.
Welding circuit The welding circuit refers to the conductive path composed of all the parts that participate in the conduction of welding current except for welding.


Control device The control device is composed of a switch and a synchronous control. The function of the switch in spot welding is to control the on and off of the current. The function of the synchronous control is to adjust the size of the welding current and accurately control the welding procedure. When the network voltage fluctuates Can automatically compensate
