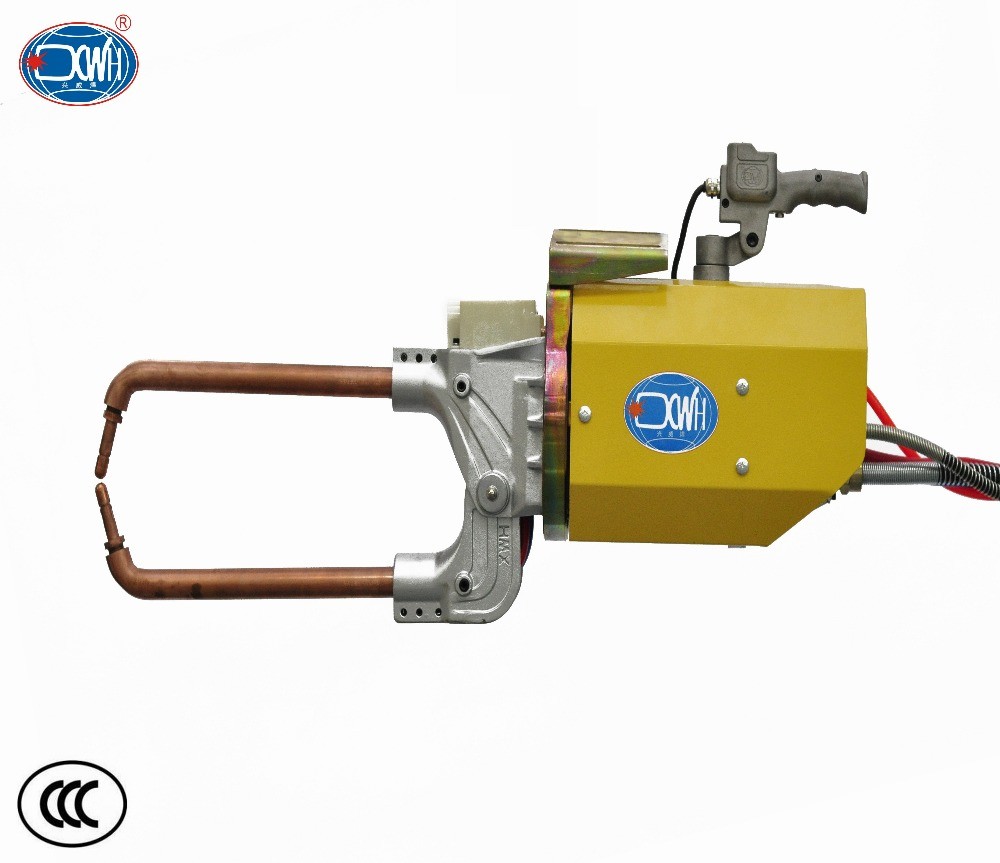

15KVA Portable Spot Welding Machine , 220volt Water Cooled Spot Welder

  • 15KVA Portable Spot Welding Machine , 220volt Water Cooled Spot Welder
  • 15KVA Portable Spot Welding Machine , 220volt Water Cooled Spot Welder
Place of Origin China
Brand Name XWH
Certification CE
Model Number DN2
Minimum Order Quantity 1 Set
Price $3,000.00-$5,000.00
Packaging Details wooden Case
Delivery Time 15 Working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500 Set/Sets per Week
Product Details
Product Name Suspension Manual Water Cooled Portable Spot Welding Machine Machine Type Auto Repair Tools
Rated Capacity Customized After Warranty Service Video Technical Support, Online Support, Spare Parts, Field Maint
Weight (KG) 80 KG Max. Welding Thickness 3.5+3.5mm
Rated Duty Cycle 50% Voltage 380V/220V
Highlight

portable spot welding machine 220volt

,

15KVA portable spot welding machine

,

220volt water cooled spot welder
Leave a Message
Product Description
Suspension Manual Water Cooled Portable Spot Welding Machine


Details


Features



Item/models Unit DN2-35X DN2-35C DN2-45X DN2-45C DN2-65X DN2-65C
power at 50% KVA 35 35 45 45 65 65
Maximum short circuit current KVA 15 15 16 16 46 46
Secondary unload voltage V 5.7 5.7 6.3 6.3 8 8
Voltage at 50Hz/60Hz V 380 380 380 380 380 380
Distance between the arms MM

120-280



 100 120-330 100 160-430 100
Max.strength at electrodes N 3500 3500 3500 3500 3500 3500
Working stroke MM 15-45 15-25 15-45 15-25 15-45 15-25
Max.stroke MM 50-120 60/100/140 50-120 60/100/140 50-120 60/100/140
Arm length MM 240-600 200-500 300-800 200-500 400-1100 200-500
Compressed Air supply MPA 0.5 0.5 0.5 0.5 0.5 0.5
Max thickness of mild steel sheet with min.length s arm MM 3+3 3+3 4+4 4+4 5+5 5+5
With 500mm arms MM 2+2 2+2 3+3 3+3 3+3 3+3
With maximum length arms MM 1.2+1.2 1.2+1.2 2+2 1.8+1.8 2.0+2.0 2.0+2.0
Cross wire maximum MM 14+14 14+14 16+16 16+16 20+20 20+20
Cooling water pressure drop MPA 0.05 0.05 0.05 0.05 0.05 0.05
Cooling water flow l/MIN 12 12 12 12 12 12





Features



The welding machine adopts modular design, welding transformer, welding tongs and pressurized cylinder are integrated with the body, compact structure, high efficiency and energy saving, safe and reliable. The welding machine is equipped with a three-degree-of-freedom rotating device, plus the three-freedom of suspension rack configuration The high-speed mobile device realizes all-round welding, and the operation is light and flexible. The welding machine can also be used as a fixed spot welding machine after being fixed



Specifics

Most Popular 220V 380V Portable Suspended Spot Welding Gun
