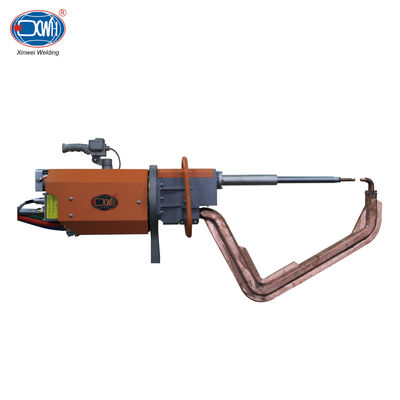

65KVA Resistance Integrated Gun Type Spot Welding Machine Portable

  • 65KVA Resistance Integrated Gun Type Spot Welding Machine Portable
  • 65KVA Resistance Integrated Gun Type Spot Welding Machine Portable
Place of Origin China
Brand Name XWH
Certification CE
Model Number DN2
Minimum Order Quantity 1 Set
Price $3,000.00-$5,000.00
Packaging Details wooden Case
Delivery Time 15 Working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500 Set/Sets per Week
Product Details
Product Name 65KVA Resistance Integrated Spot Welder IT Gun Machine Type Auto Repair Tools
Rated Capacity 65KVA After Warranty Service Video Technical Support, Online Support, Spare Parts, Field Maint
Weight (KG) 60 KG Max. Welding Thickness 3.5+3.5mm
Rated Duty Cycle 50% Voltage 380V
Highlight

65KVA portable spot welding gun

,

integrated gun type spot welding machine

,

65KVA gun type spot welding machine
Leave a Message
Product Description
65KVA Resistance Integrated Spot Welder IT Gun


Details



Features



Item/models Unit DN2-35X DN2-35C DN2-45X DN2-45C DN2-65X DN2-65C
power at 50% KVA 35 35 45 45 65 65
Maximum short circuit current KVA 15 15 16 16 46 46
Secondary unload voltage V 5.7 5.7 6.3 6.3 8 8
Voltage at 50Hz/60Hz V 380 380 380 380 380 380
Distance between the arms MM

120-280



 100 120-330 100 160-430 100
Max.strength at electrodes N 3500 3500 3500 3500 3500 3500
Working stroke MM 15-45 15-25 15-45 15-25 15-45 15-25
Max.stroke MM 50-120 60/100/140 50-120 60/100/140 50-120 60/100/140
Arm length MM 240-600 200-500 300-800 200-500 400-1100 200-500
Compressed Air supply MPA 0.5 0.5 0.5 0.5 0.5 0.5
Max thickness of mild steel sheet with min.length s arm MM 3+3 3+3 4+4 4+4 5+5 5+5
With 500mm arms MM 2+2 2+2 3+3 3+3 3+3 3+3
With maximum length arms MM 1.2+1.2 1.2+1.2 2+2 1.8+1.8 2.0+2.0 2.0+2.0
Cross wire maximum MM 14+14 14+14 16+16 16+16 20+20 20+20
Cooling water pressure drop MPA 0.05 0.05 0.05 0.05 0.05 0.05
Cooling water flow l/MIN 12 12 12 12 12 12



Spot welding is a resistance welding method that assembles the weldment into a lap joint and presses it between two columnar electrodes, and uses resistance heat to melt the base metal to form a welding spot. Spot welding is mainly used for thin plate welding.
The process of spot welding:


(1) Preload to ensure good contact of the workpiece.


(2) Energize to form a nugget and plastic ring at the weld.


(3) Power-off forging, so that the nugget cools and crystallizes under the continued pressure to form a densely structured solder joint without shrinkage or cracks.
