Hand Held Gun Portable Spot Welding Machine 380 Volt CCC Approved
| Brand Name: | XWH |
| Model Number: | DN2 |
| MOQ: | 1 Set |
| Price: | $3,000.00-$5,000.00 |
| Packaging Details: | wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
Hand-Held Portable Spot Welder IT Gun
Machine Type:
Auto Repair Tools
Rated Capacity:
35KVA
After Warranty Service::
Video Technical Support, Online Support, Spare Parts, Field Maint
Weight (KG):
60 KG
Max. Welding Thickness:
3.5+3.5mm
Rated Duty Cycle:
50%
Voltage:
380V
Supply Ability:
500 Set/Sets per Week
Highlight:
CCC portable spot welding machine
,380 volt portable spot welding machine
,CCC gun spot welding machine
Product Description
Hand-Held Portable Spot Welder IT Gun
Details
Resistance welding refers to a method in which the resistance heat generated by the current passing through the weldment and the contact is used as the heat source to locally heat the weldment while pressing for welding. When welding, no filler metal is required, the productivity is high, the deformation of the weldment is small, and it is easy to realize automation.

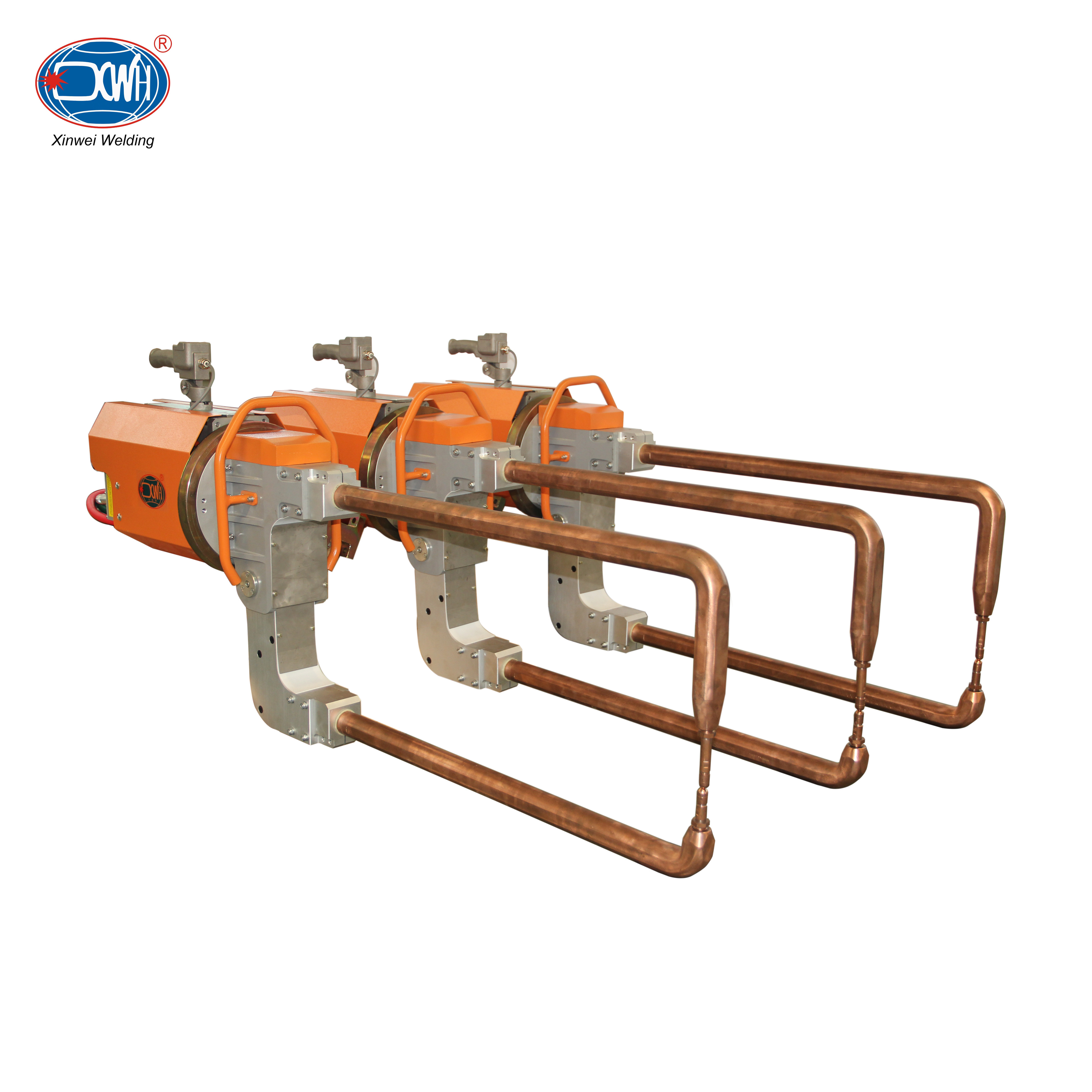

The integrated suspension spot welding tongs adopts assembly process to connect the transformer and the tong arm together and fix it on the rotating disk. The inner ring and outer ring of the turntable adopt a steel ball structure, which is flexible in rotation and has no seizure. The welding tongs are rotated through The disc realizes 360° rotation, and the rotating disc is equipped with a locking mechanism that can be locked at any angle, which can effectively meet some specific welding postures. After the specific posture welding is completed, the lock can be rotated normally after the welding is completed.
Features
| Item/models | Unit | DN2-35X | DN2-35C | DN2-45X | DN2-45C | DN2-65X | DN2-65C |
| power at 50% | KVA | 35 | 35 | 45 | 45 | 65 | 65 |
| Maximum short circuit current | KVA | 15 | 15 | 16 | 16 | 46 | 46 |
| Secondary unload voltage | V | 5.7 | 5.7 | 6.3 | 6.3 | 8 | 8 |
| Voltage at 50Hz/60Hz | V | 380 | 380 | 380 | 380 | 380 | 380 |
| Distance between the arms | MM | 120-280
| 100 | 120-330 | 100 | 160-430 | 100 |
| Max.strength at electrodes | N | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke | MM | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
| Arm length | MM | 240-600 | 200-500 | 300-800 | 200-500 | 400-1100 | 200-500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Cooling water flow | l/MIN | 12 | 12 | 12 | 12 | 12 | 12 |
