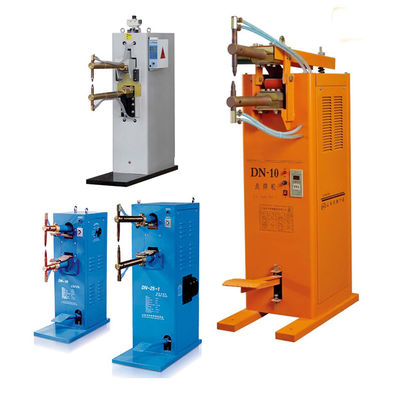

Air Cooling 35kva Spot Welder For Car Body Repair Pedal Type
Product Details
| Product Name | 10kva Pedal Type Welding Machine Spot Welder For Repair Car Body | Frequency | 50HZ/60HZ |
|---|---|---|---|
| Dimensions | DN 10/16/25/35 | Welding Time | 0.1-1S |
| MOQ | 3 | No-load Voltage | 1.98-3.01V |
| Machinery Test Repo | Provided | Power Voltage | 380V |
| Highlight | air cooling spot welder for car body repair,35kva spot welder for car body repair,35kva pedal spot welding machine |
||
Product Description
10kva Pedal Type Welding Machine Spot Welder For Repair Car Body
| RESISTANCE SPOT | DN-10 | DN-16 | DN-25 | DN-35 |
| Rated Voltage/Frequency | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Phase Number | 1 | 1 | 1 | 1 |
| Rated Capacity | 10KVA | 16KVA | 25KVA | 35KVA |
| Rated Primary current | 26.3A | 42.1A | 66A | 92A |
| Rated Duty Cycle | 10% | 10% | 10% | 10% |
| Open Circuit Voltage | 1.65-2.4V | 1.98-3.01V | 2.3-3.55V | 2.6-4.2V |
| Adjustable Step Number | 4 | 4 | 4 | 4 |
| Weld Time Adjust | 0-9.99s | 0-9.99s | 0-9.99s | 0-9.99s |
| Arm Extension | 260mm | 280mm |
280mm | 280mm |
| Welding Thickness | 1.5+1.5mm | 2+2mm | 2.5+2.5mm | 3.5+3.5mm |
| Main transformer/Cooling Mode | air cooling | air cooling | air cooling | air cooling |
| Electrode Cooling mode | water cooling | water cooling | water cooling | water cooling |
| Weight | 90kg | 93kg | 100kg | 108kg |
Product Features
1. Pedal-level type spring-pressing strcture makes the machine easy to operate and convenient to maintain
2. Thyristor controlled turn on/off electric circuit ensure the machine be turned off quickly and be more reliable.
3. Welding time can be adjusted based on actual needs, and as a result, the welding also can be well repeated
4. Mainly used for spot welding machine, low carbon steel plate, besides it can be used for different metal thickness plate, round steel and round steel, round steel and steel plate spot welding. Prolong spot welding time and can also spot welding alloy steel and non-ferrous metal.
