Product Details:
|
| Product Name: | Assembly Line Automatic Tube Spot Welding Machine Stationary Spot Welding Machine | Frequency: | 50HZ/60HZ |
|---|---|---|---|
| Rated Capacity:: | 160/200/250 | Welding Time: | 0.1-1S |
| Related Industry:: | Stainless Steel Product | Welding Mode:: | Inverter DC |
| Machinery Test Repo: | Provided | Size: | 450mm |
| Highlight: | Inverter DC stationary spot welding machine,50HZ stationary spot welding machine,50HZ stainless steel spot welding machine |
||

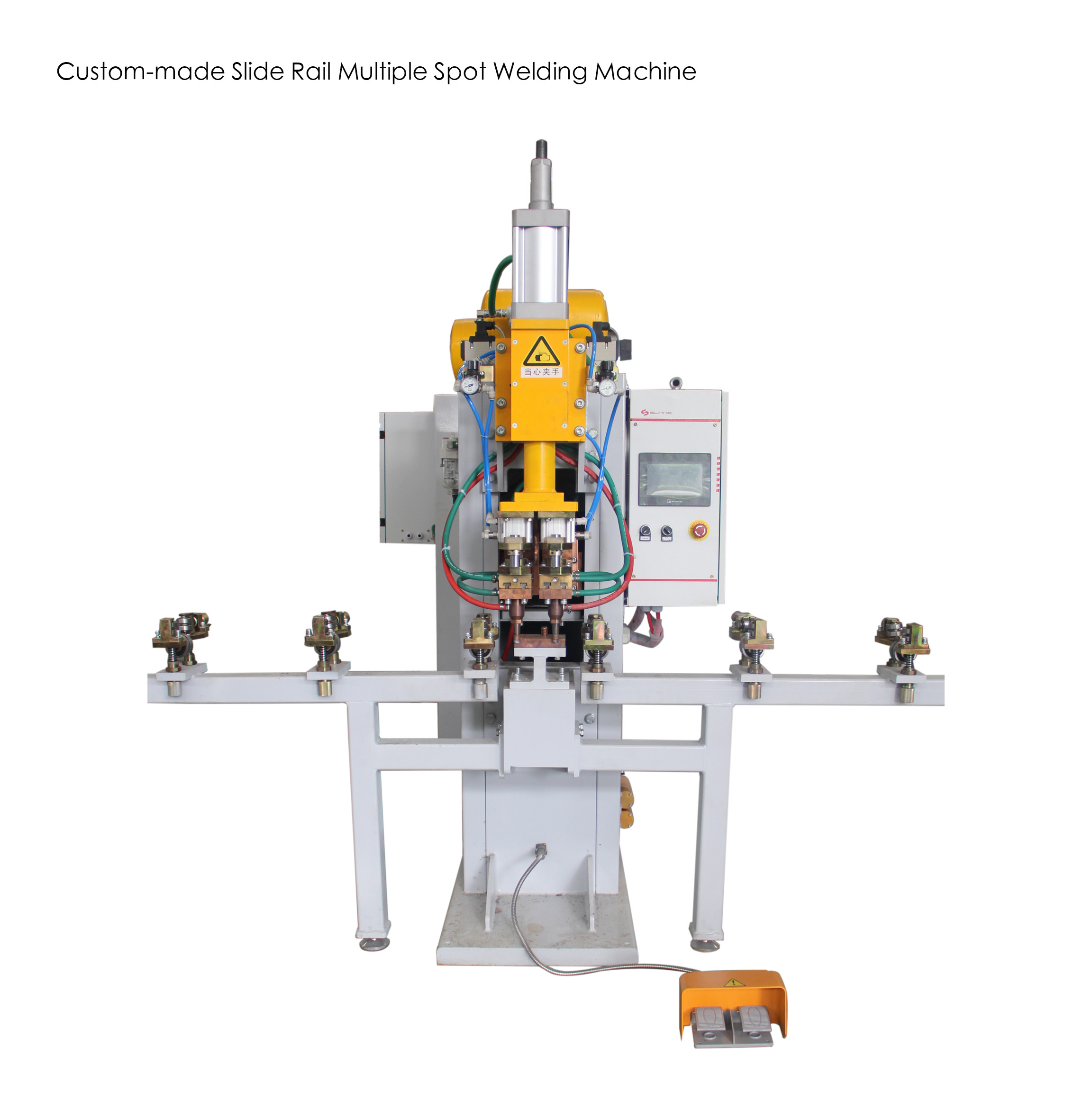

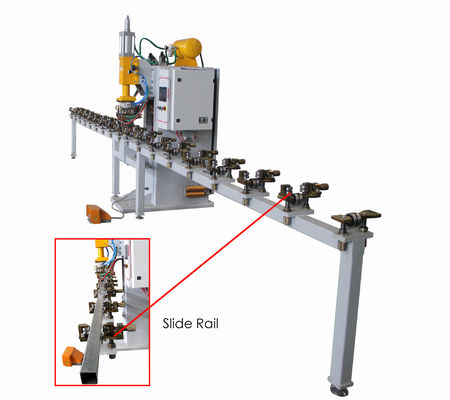

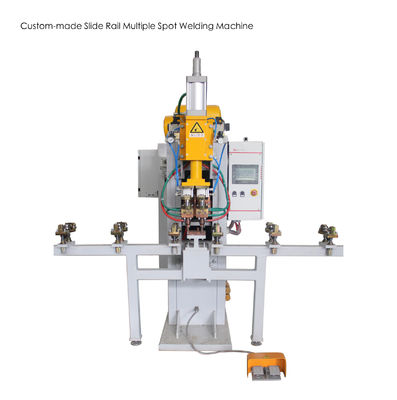

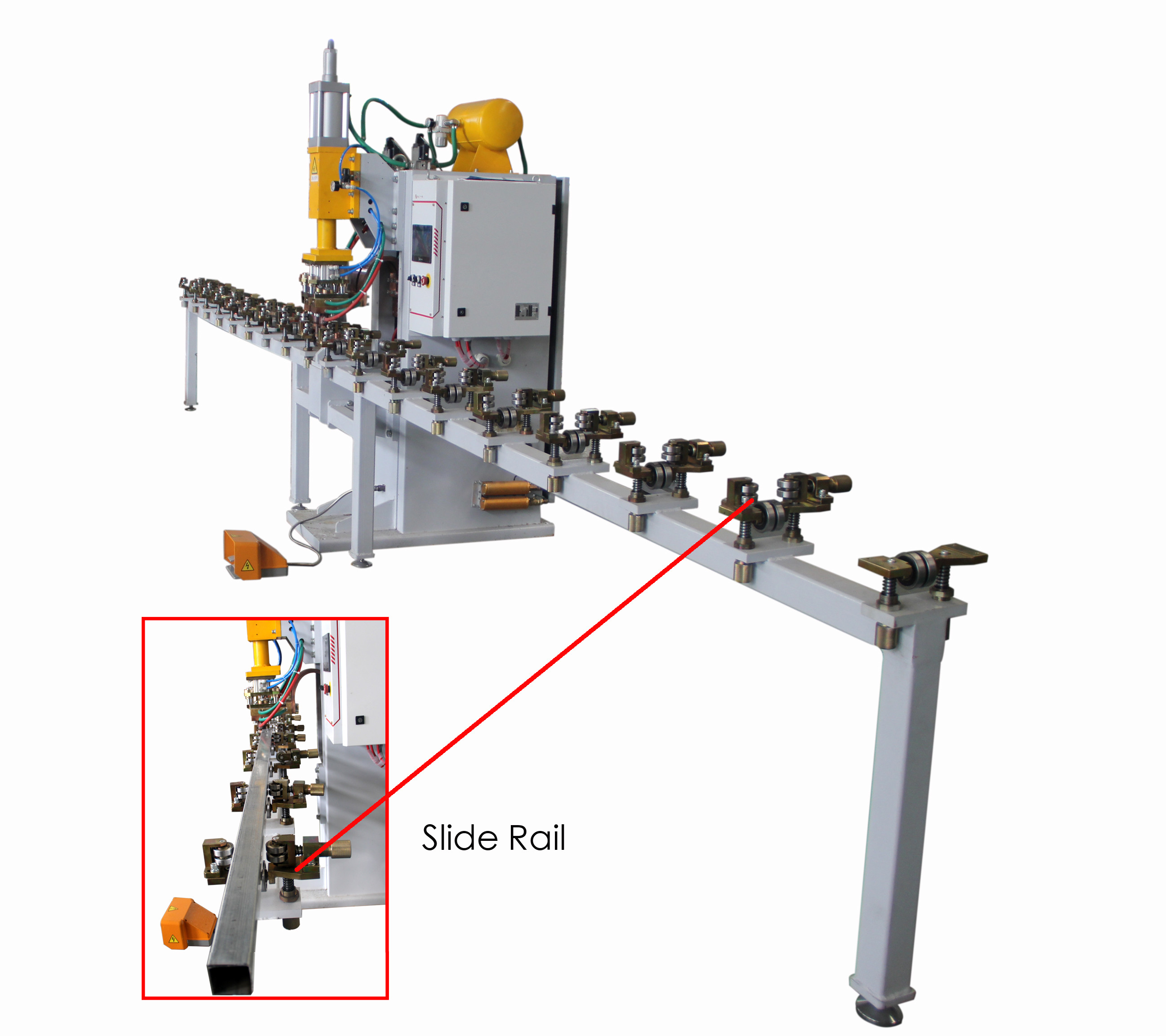

Assembly Line Automatic Tube Spot Welding Machine Stationary Spot Welding Machine
FEATURE
This type of AC spot welder utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces.
Parameter List
| Item Model | DN-25 | DN-35 | DN-50 | DN-75 | DN-100 | DN-150 | DN-200 |
| Rated capacity KVA | 25 | 35 | 50 | 75 | 100 | 150 | 200 |
| Rated Primary voltage V | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Rated frequency Hz | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Maximum welding input KVA | 38 | 54 | 70 | 146 | 216 | 340 | 450 |
| Rated duty cycle % | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Arm length mm | 340 | 380 | 380 | 380 | 380 | 450 | 450 |
| Maximun compression N | 2500 | 4700 | 4700 | 7300 | 7300 | 12000 | 12000 |
| Electrode stroke mm | 60 | 80 | 80 | 80 | 80 | 100 | 100 |
| Welding capability Low carbon steel mm | 2.0+2.0 | 2.5+2.5 | 3.0+3.0 | 4.0+4.0 | 4.5+4.5 | 5.0+5.0 | 6.0+6.0 |
