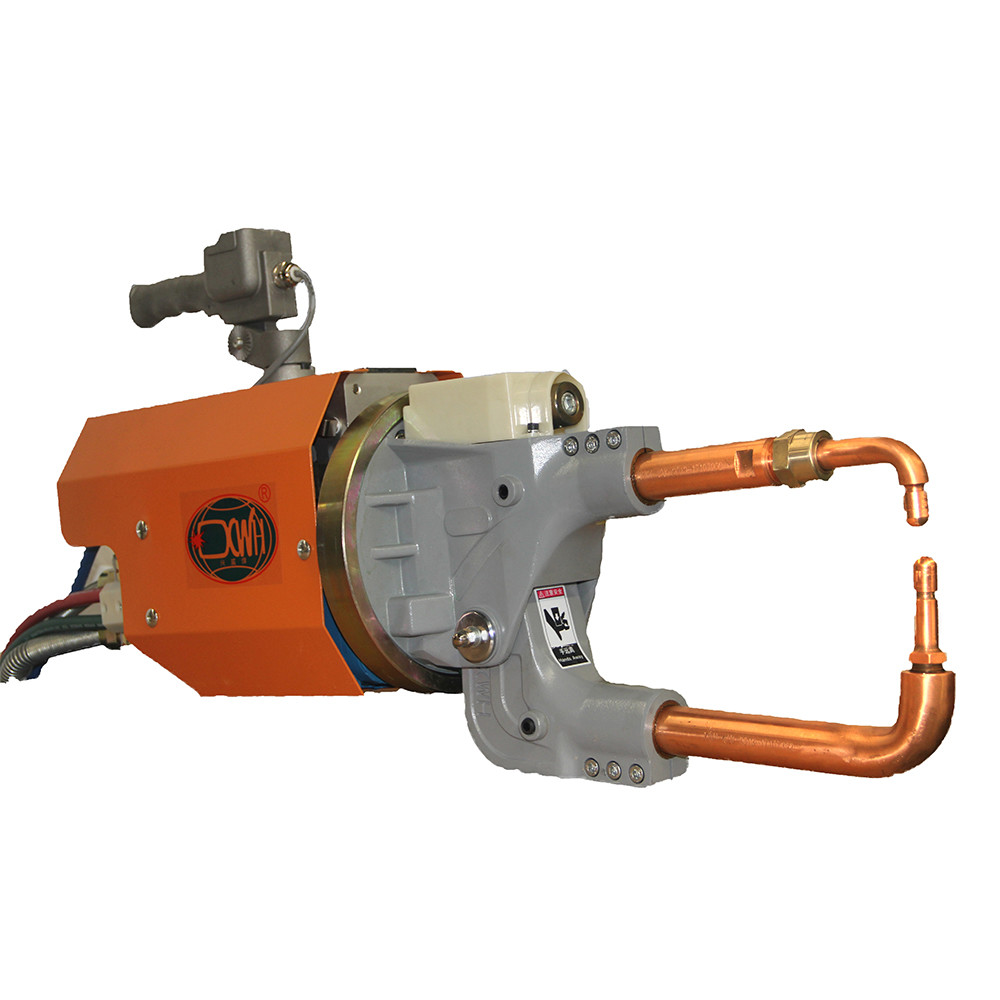

Watercooled Portabl Manual Spot Weld Welding Gun Portatil De Soldador

Brand Name:	XWH
Model Number:	DN2
MOQ:	1 Set
Price:	$3,000.00-$5,000.00
Packaging Details:	wooden Case
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

220V 380V Portable Suspended Spot Welding Gun

Machine Type:

Auto Repair Tools

Rated Capacity:

31KVA

After Warranty Service::

Video Technical Support, Online Support, Spare Parts, Field Maint

Weight (KG):

60 KG

Max. Welding Thickness:

3.5+3.5mm

Rated Duty Cycle:

50%

Voltage:

380V

Supply Ability:

500 Set/Sets per Week

Product Description

220V 380V Portable Suspended Spot Welding Gun

Watercooled Portabl Manual Spot Weld Welding Gun Portatil De Soldador 0

X type C type

features

Item/models	Unit	DN2-35X	DN2-35C	DN2-45X	DN2-45C	DN2-65X	DN2-65C
power at 50%	KVA	35	35	45	45	65	65
Maximum short circuit current	KVA	15	15	16	16	46	46
Secondary unload voltage	V	5.7	5.7	6.3	6.3	8	8
Voltage at 50Hz/60Hz	V	380	380	380	380	380	380
Distance between the arms	MM	120-280	100	120-330	100	160-430	100
Max.strength at electrodes	N	3500	3500	3500	3500	3500	3500
Working stroke	MM	15-45	15-25	15-45	15-25	15-45	15-25
Max.stroke	MM	50-120	60/100/140	50-120	60/100/140	50-120	60/100/140
Arm length	MM	240-600	200-500	300-800	200-500	400-1100	200-500
Compressed Air supply	MPA	0.5	0.5	0.5	0.5	0.5	0.5
Max thickness of mild steel sheet with min.length s arm	MM	3+3	3+3	4+4	4+4	5+5	5+5
With 500mm arms	MM	2+2	2+2	3+3	3+3	3+3	3+3
With maximum length arms	MM	1.2+1.2	1.2+1.2	2+2	1.8+1.8	2.0+2.0	2.0+2.0
Cross wire maximum	MM	14+14	14+14	16+16	16+16	20+20	20+20
Cooling water pressure drop	MPA	0.05	0.05	0.05	0.05	0.05	0.05
Cooling water flow	l/MIN	12	12	12	12	12	12

The welding machine is completed by the proper cooperation of resistance heat and mechanical force, so it can obtain high solder joints of the weldment.

Parts

Watercooled Portabl Manual Spot Weld Welding Gun Portatil De Soldador 1

X Type

Specifics

Watercooled Portabl Manual Spot Weld Welding Gun Portatil De Soldador 2

Cooperative partner

This is one of our overseas customers' factories.

Watercooled Portabl Manual Spot Weld Welding Gun Portatil De Soldador 3

Packaging & Shipping

Watercooled Portabl Manual Spot Weld Welding Gun Portatil De Soldador 4

1. Packaging: Depending on customers' requirement,such as iron case or iron pallet etc.

2. Shipping: When the container arrived our factory,our shipping operator and delivering equipments will be ready on time to ensure goods shipped based on Sales Order requirement.

Our Services

♥ Your reply will be replied within 24 hours.

♥ Fast delivery time and good after service.

♥ Keep the mass production as the sample in high quality.

♥ Freight forwarder: faster, safer, and convenient.

♥ Good factory price.

♥ Guaranteed for one year.

♥ Providing overseas services.

FAQ

1. When can you arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.Do you inspect the finished products?

Yes, Each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5.How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.Can you put my brand name (logo) on this Spot Welder?
Yes,we can . In order to explore the market better and provide more convenient services to global customers.

9.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
