Double Head Handheld Portable Doubleside Equipment Gun welder Spot Welding Machine
Product Details
| Product Name | 220V 380V Portable Suspended Spot Welding Gun | Machine Type | Auto Repair Tools |
|---|---|---|---|
| Rated Capacity | 31KVA | After Warranty Service | Video Technical Support, Online Support, Spare Parts, Field Maint |
| Weight (KG) | 60 KG | Max. Welding Thickness | 3.5+3.5mm |
| Rated Duty Cycle | 50% | Voltage | 380V |
Product Description

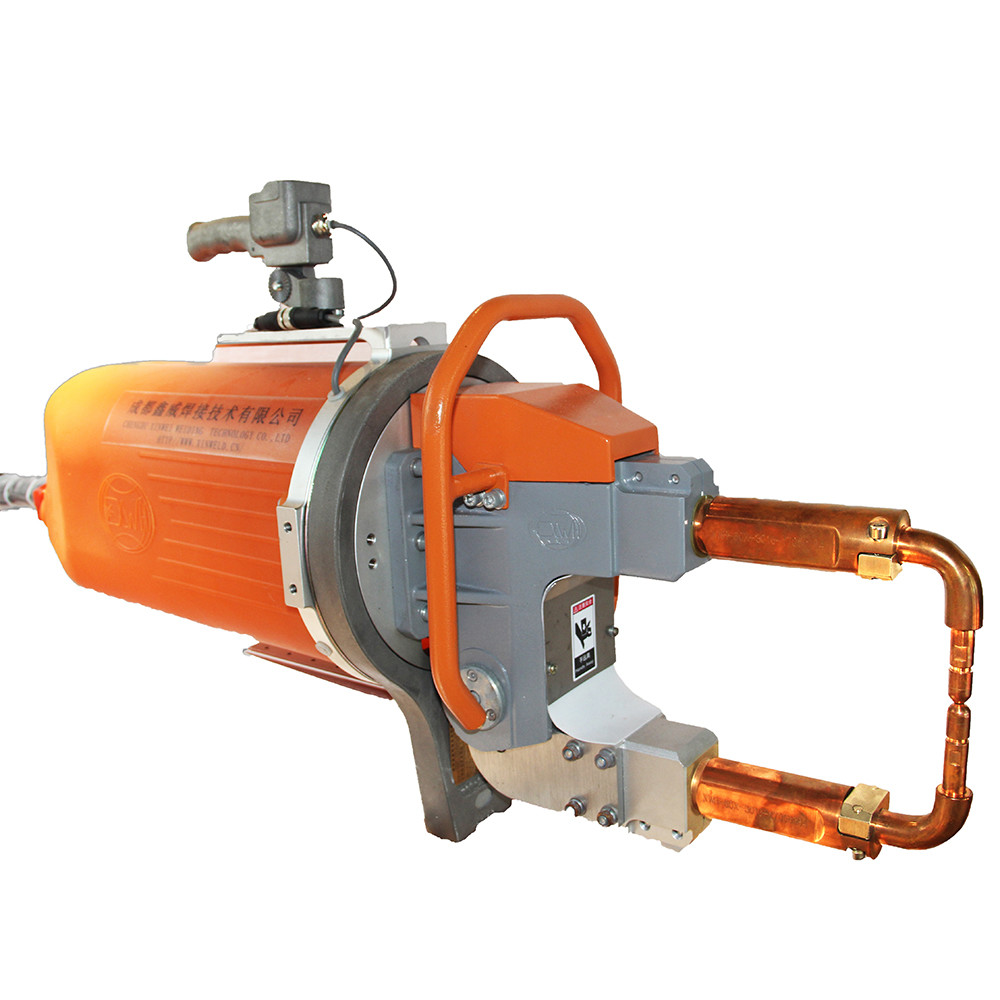

220V 380V Portable Suspended Spot Welding Gun
X type C type
-
features
| Item/models | Unit | DN2-35X | DN2-35C | DN2-45X | DN2-45C | DN2-65X | DN2-65C |
| power at 50% | KVA | 35 | 35 | 45 | 45 | 65 | 65 |
| Maximum short circuit current | KVA | 15 | 15 | 16 | 16 | 46 | 46 |
| Secondary unload voltage | V | 5.7 | 5.7 | 6.3 | 6.3 | 8 | 8 |
| Voltage at 50Hz/60Hz | V | 380 | 380 | 380 | 380 | 380 | 380 |
| Distance between the arms | MM | 120-280
| 100 | 120-330 | 100 | 160-430 | 100 |
| Max.strength at electrodes | N | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke | MM | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
| Arm length | MM | 240-600 | 200-500 | 300-800 | 200-500 | 400-1100 | 200-500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Cooling water flow | l/MIN | 12 | 12 | 12 | 12 | 12 | 12 |
Because the welding process is simple, no filling materials, solvents, and shielding gas are needed, so the cost is low. Due to the short heating time, heat concentration, no arc, no spark splash, no welding slag, no fusion welding accumulation, no thermal deformation of the weldment, the gas path system is large, and the welding gun moves quickly, so not only the productivity is high, but the welding The parts have beautiful appearance and good quality.
X Type
-
Specifics
-
Application
- Important equipment
-
-
Workflow
1.Please give us your specific requirement,include the material and thickness or 3D drawing of workpiece or anyelse.
2.Technicist makes 3D modeling and select suitable welding machine and shape of clamp .We should keep contact at this point.
3.Building the cooperation relations and signing a contact. Wewill confirm drawing with you in one day or two days.
4.We confirm the accurancy of contract finaly,then we can produce welding machine.
-
