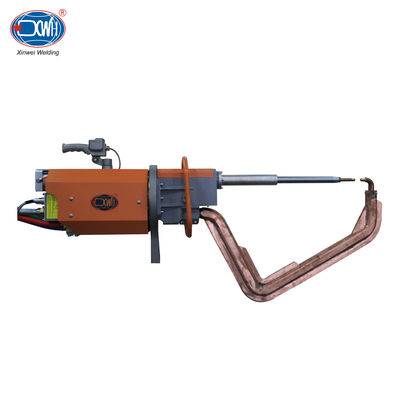

XWH 35KVA pakistan Cheap CE portable spot welding equipment machine for almirah

  • XWH 35KVA pakistan Cheap CE portable spot welding equipment machine for almirah
  • XWH 35KVA pakistan Cheap CE portable spot welding equipment machine for almirah
Place of Origin China
Brand Name XWH
Certification CE
Model Number DN2
Minimum Order Quantity 1 Set
Price $3,000.00-$5,000.00
Packaging Details wooden Case
Delivery Time 15 Working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500 Set/Sets per Week
Product Details
Product Name 220V 380V Portable Suspended Spot Welding Gun Machine Type Auto Repair Tools
Rated Capacity 31KVA After Warranty Service Video Technical Support, Online Support, Spare Parts, Field Maint
Weight (KG) 60 KG Max. Welding Thickness 3.5+3.5mm
Rated Duty Cycle 50% Voltage 380V
Leave a Message
Product Description
220V 380V Portable Suspended Spot Welding Gun


XWH 35KVA pakistan Cheap CE portable spot welding equipment machine for almirah 0

X type C type



  • features



Item/models Unit DN2-35X DN2-35C DN2-45X DN2-45C DN2-65X DN2-65C
power at 50% KVA 35 35 45 45 65 65
Maximum short circuit current KVA 15 15 16 16 46 46
Secondary unload voltage V 5.7 5.7 6.3 6.3 8 8
Voltage at 50Hz/60Hz V 380 380 380 380 380 380
Distance between the arms MM

120-280



 100 120-330 100 160-430 100
Max.strength at electrodes N 3500 3500 3500 3500 3500 3500
Working stroke MM 15-45 15-25 15-45 15-25 15-45 15-25
Max.stroke MM 50-120 60/100/140 50-120 60/100/140 50-120 60/100/140
Arm length MM 240-600 200-500 300-800 200-500 400-1100 200-500
Compressed Air supply MPA 0.5 0.5 0.5 0.5 0.5 0.5
Max thickness of mild steel sheet with min.length s arm MM 3+3 3+3 4+4 4+4 5+5 5+5
With 500mm arms MM 2+2 2+2 3+3 3+3 3+3 3+3
With maximum length arms MM 1.2+1.2 1.2+1.2 2+2 1.8+1.8 2.0+2.0 2.0+2.0
Cross wire maximum MM 14+14 14+14 16+16 16+16 20+20 20+20
Cooling water pressure drop MPA 0.05 0.05 0.05 0.05 0.05 0.05
Cooling water flow l/MIN 12 12 12 12 12 12





The suspension spot welding machine adjusts the heat by changing the conduction angle of the thyristor through the welding machine controller, so it is easy to realize mechanization and automation, so it can be matched with a robot for fully automatic welding operation.



The suspension spot welding machine is composed of welding tongs, welding machine transformer, welding machine controller, water cooling system, pneumatic pressure system, suspension device and other parts. The electrode arm of the spot welding machine adopts chromium-zirconium copper (CuCrZr-1), which ensures the stability of the welding performance, the service life of the welding machine and the strength of the electrode arm.
