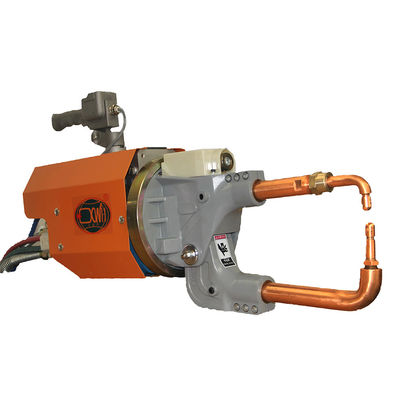

Resistance C Type Gun point mfdc spot welding machine for stainless steel

  • Resistance C Type Gun point mfdc spot welding machine for stainless steel
  • Resistance C Type Gun point mfdc spot welding machine for stainless steel
Place of Origin China
Brand Name XWH
Certification CE
Model Number XW
Minimum Order Quantity 1
Price $2,500.00 - $5,800.00
Packaging Details Wooden Case
Delivery Time 15 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 Set/Sets per Month
Product Details
Product Name Resistance C Type Gun Point Mfdc Spot Welding Machine For Stainless Steel Function Spot Welding
Frequency 50HZ/60HZ Max. Welding Thickness 3+3mm
Weight 60-120KG Rated Capacity 25-63KVA
Leave a Message
Product Description
Resistance C Type Gun point mfdc spot welding machine for stainless steel


1. Light weight, convenient operation, power saving
2. Compact structure and easy maintenance
3. The turntable is equipped with bearings and can rotate 360 °
4. Customized welding tongs. The longest welding arm is 1300mm and the shortest welding arm is 220mm.
5. Fewer worn parts and high cost performance
6. The structure of the transformer is the same as Bosch. The transformer is equipped with a temperature control protection device. Water cooling, high speed heat dissipation. Long continuous work (24 hours work)
7. Different specifications can be set (workpieces of different thickness can be welded), welding thickness 0.3mm + 0.3mm ∽ 5 + 5mm

Factory 35kva Suspended hand held spot welding machine for sale

Models Unit DN2-35X DN2-35C DN2-45X DN2-45C DN2-65X DN2-65C
Power at 50% KVA 35 35 45 45 65 65
Maximum short circuit current KA 15 15 16 16 46 46
Secondary unload voltage V 5.7 5.7 6.3 6.3 8 8
Voltage at 50Hz/60Hz V 380 380 380 380 380 380
Distance between the arms MM 120-280 100 120-330 100 160-430 100
Max. strength at electrodes N 3500 3500 3500 3500 3500 3500
Working stroke MM 15-45 15-25 15-45 15-25 15-45 15-25
Max. stroke MM 50-120 60/100/140 50-120 60/100/140 50-120 60/100/140
Arm length MM 240-600 200-500 300-8000 200-500 400-1100 200-500
Compressed Air supply MPa 0.5 0.5 0.5 0.5 0.5 0.5

Max. thickness of mild

steel sheet with Min. length’s arm



MM



3+3



3+3



4+4



4+4



5+5



5+5
With 500mm arms MM 2+2 2+2 3+3 3+3 3+3 3+3
With maximum length arms MM 1.2+1.2 1.2+1.2 2+2 1.8+1.8 2.0+2.0 2.0+2.0
Cross wire maximum MM 14+14 14+14 16+16 16+16 20+20 20+20
Cooling water pressure drop MPa 0.05 0.05 0.05 0.05 0.05 0.05
Cooling water flow L/Min 12 12 12 12 12

12





Factory 35kva Suspended hand held spot welding machine for sale
Factory 35kva Suspended hand held spot welding machine for saleResistance C Type Gun point mfdc spot welding machine for stainless steel 3Resistance C Type Gun point mfdc spot welding machine for stainless steel 4



Company Information
Resistance C Type Gun point mfdc spot welding machine for stainless steel 5

Our Company


Our company is the Chinese market leader in manufacturer of spot welding machine.We supply products and service for major automotive manufacturers, include TOYOTA,HONDA,VW,FORD,HYUNDAI etc.Also supply welding products for OEMs and Tier 1 & 2 companies in the automotive,mass transit,as well as various other industries.

Not only support domestic users,our products are also popular sold to international customer, such as USA,Germany,France, Italy, UK, Spain, Czech Republic, Slovakia, Russia, Poland, Ukraine, Turkey, Mexico, Brazil, India, Thailand, Vietnam, Malaysia.



FAQ

Q1: Do you offer the certification?

A: Yes,ISO,CE are available.

Q2: How long is the leading time?

A: Usually 3-7 working days.

Q3: Do you offer guarantee for the products?

A: Yes,Equipment offer 1 year warranty.Accessory offer 3 months warranty.

Q4: What is trade terms do you have?

A: EXW,FOB,CFR,CIF,Alibaba trade assurance.

Q5: Payment and Delivery?

A: Wire transfer(T/T),Western Union,Paypal,Money Gram,Credit Card;

A: Delivery by DHL,FEDEX,UPS,TNT,By Air,By Sea,ARAMEX...

Q6: Customized and MOQ?

A: Yes,we can produce according to your technical drawing. MOQ:10pcs/each type.
