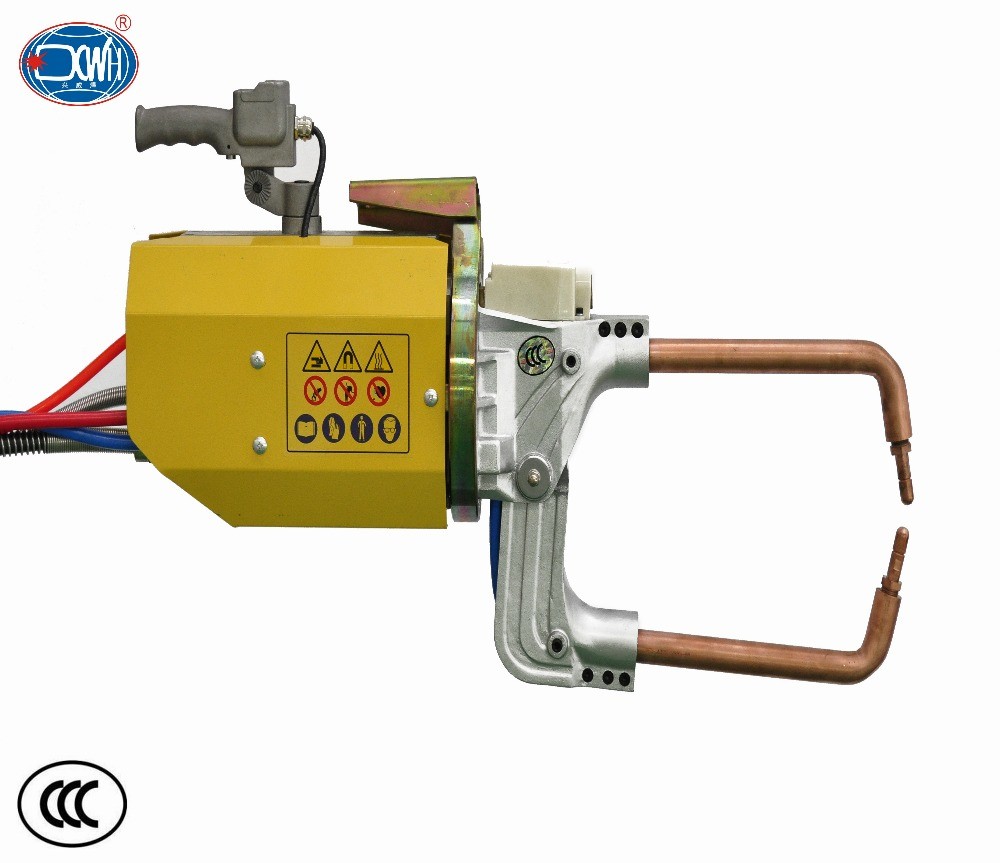

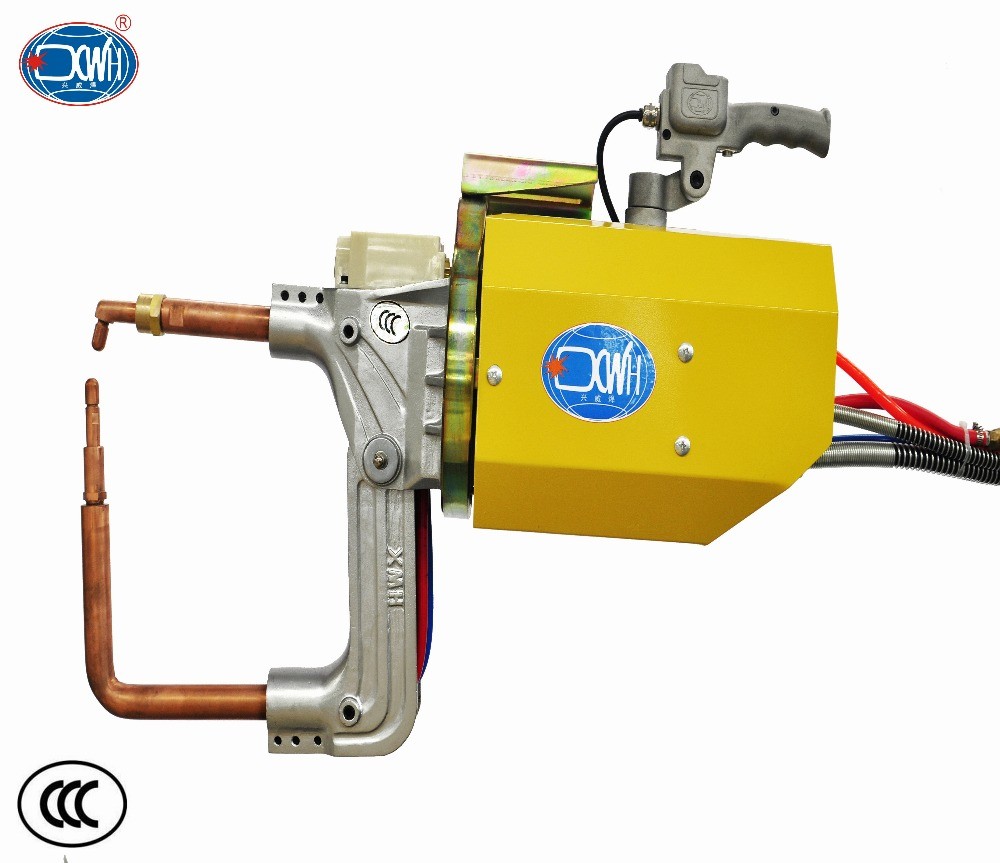

High Quality portable mini spot welding machine

  • High Quality portable mini spot welding machine
  • High Quality portable mini spot welding machine
  • High Quality portable mini spot welding machine
Place of Origin China
Brand Name XWH
Certification CE
Model Number DN2
Minimum Order Quantity 1
Price $4,000.00 - $4,500.00
Packaging Details Wooden Case
Delivery Time 15 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 sets/month
Product Details
Product Name High Quality Portable Mini Spot Welding Machine Rated Capacity 25---63KV
Weight 45-80Kgs Application Automobile Body Repair
Frequency 50HZ Dimensions Customized Size
Welding Area Spot Area Max. Welding Thickness 5+5mm
Leave a Message
Product Description




High Quality portable mini spot welding machine







INVERTER LASER CNC SPOT MACHINE WELDING PRICE LIST INVERTER LASER CNC SPOT MACHINE WELDING PRICE LIST

C type X type



  • features



Item/models Unit DN2-35X DN2-35C DN2-45X DN2-45C DN2-65X DN2-65C
power at 50% KVA 35 35 45 45 65 65
Maximum short circuit current KVA 15 15 16 16 46 46
Secondary unload voltage V 5.7 5.7 6.3 6.3 8 8
Voltage at 50Hz/60Hz V 380 380 380 380 380 380
Distance between the arms MM

120-280



 100 120-330 100 160-430 100
Max.strength at electrodes N 3500 3500 3500 3500 3500 3500
Working stroke MM 15-45 15-25 15-45 15-25 15-45 15-25
Max.stroke MM 50-120 60/100/140 50-120 60/100/140 50-120 60/100/140
Arm length MM 240-600 200-500 300-800 200-500 400-1100 200-500
Compressed Air supply MPA 0.5 0.5 0.5 0.5 0.5 0.5
Max thickness of mild steel sheet with min.length s arm MM 3+3 3+3 4+4 4+4 5+5 5+5
With 500mm arms MM 2+2 2+2 3+3 3+3 3+3 3+3
With maximum length arms MM 1.2+1.2 1.2+1.2 2+2 1.8+1.8 2.0+2.0 2.0+2.0
Cross wire maximum MM 14+14 14+14 16+16 16+16 20+20 20+20
Cooling water pressure drop MPA 0.05 0.05 0.05 0.05 0.05 0.05
Cooling water flow l/MIN 12 12 12 12 12 12





  • Main Characteristics



1. High efficiency resistance welding machine.

2. Easy to install and simple to operate, saves energy.

3. Nimble and 360° rotational use. Stays at any angle any and position.

4. Small, light, high power output. Smallest welder in its power class.

5. Electrode and welding arm are all water cooled so that welding quality can be guaranteed.

6. Gun body is cast with special aluminum, light and ductile

7. The electrode arm is made of copper alloy with good flexional strength, high conductivity.

8. High production rate, sufficient supply of spare parts and components.



High Quality portable mini spot welding machine 2
Wooden case is non-fumigation, more convenient for transport
Company Information
High Quality portable mini spot welding machine 3
High Quality portable mini spot welding machine 4
High Quality portable mini spot welding machine 5
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.

Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.

Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance Spot Welding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.
Certifications
High Quality portable mini spot welding machine 6
High Quality portable mini spot welding machine 7
High Quality portable mini spot welding machine 8
Exhibition Pictures
High Quality portable mini spot welding machine 9
High Quality portable mini spot welding machine 10
High Quality portable mini spot welding machine 11
High Quality portable mini spot welding machine 12
Service
High Quality portable mini spot welding machine 13
High Quality portable mini spot welding machine 14
High Quality portable mini spot welding machine 15
Our engineers were intalling portable spot welding machine in car manufacturer's workshop oversea.
Our engineers will train customer how to operate, repair and maintaining machines and so on.
