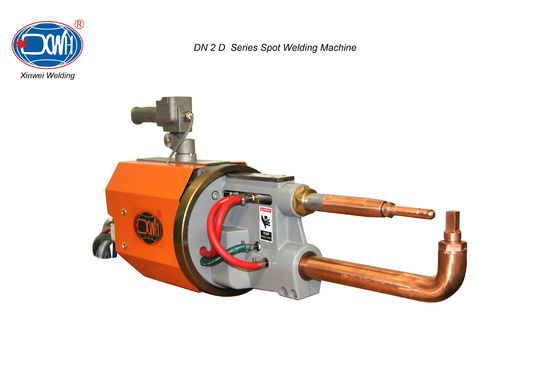

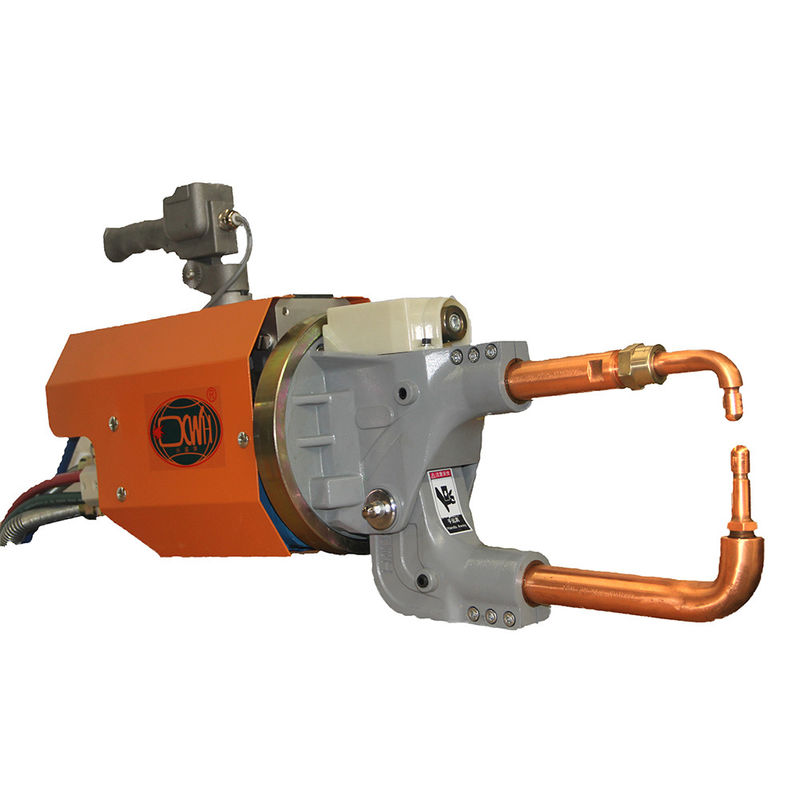

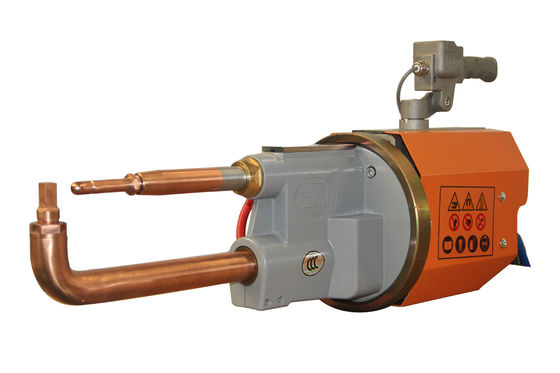

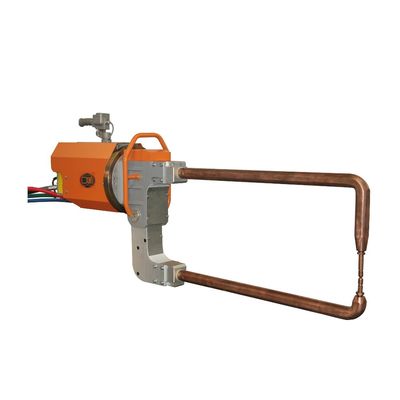

Manufacturer Automatic Resistance Portable Hand Held Spot Welding Machine

  • Manufacturer Automatic Resistance Portable Hand Held Spot Welding Machine
  • Manufacturer Automatic Resistance Portable Hand Held Spot Welding Machine
  • Manufacturer Automatic Resistance Portable Hand Held Spot Welding Machine
  • Manufacturer Automatic Resistance Portable Hand Held Spot Welding Machine
  • Manufacturer Automatic Resistance Portable Hand Held Spot Welding Machine
Place of Origin China
Brand Name XWH
Certification CE
Model Number DN2
Minimum Order Quantity 1 set
Price $2,000.00 - $5,000.00
Packaging Details Wooden case
Delivery Time 15 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 sets / month
Product Details
Product Name Manufacturer Automatic Resistance Portable Hand Held Spot Welding Machine Voltage 220V/380V/415V/440V
Rated Capacity 35KVA,45KVA,65KVA, Customized Rated Duty Cycle 50%
Warranty 50HZ/60HZ Dimensions 1.7m*0.7m*0.7
Machine Type Resistance Welding Machine
Leave a Message
Product Description

Manufacturer Automatic Resistance Portable Hand Held Spot Welding Machine







Product Welding Video
We provide technical guidance videos, product welding videos, and samples please contact us.
Overseas on-site technical team
South America, Southeast Asia,etc
One-stop service
MIG / TIG / Spot welding machine / Seam welding machine / Welding robot / Suspended Transmission System / Controller / Spring Balancer / Electrode
Model Item
DN2-35X
DN2-35C
DN2-45X
DN2-45C
DN2-65X
DN2-65C
Power at 50% KVA
35
35
45
45
65
65
Maximum short circuit current KA
15
15
16
16
46
46
Secondary unload voltage V
5.7
5.7
6.3
6.3
8
8
Voltage at 50Hz/60Hz V
380
380
380
380
380
380
Distance between the arms mm
120-280
100
120-330
100
160-430
100
Max. strength at electrodes
3500
Working stroke mm
15-45
15-25
15-45
15-25
15-45
15-25
Max. stroke mm
50-120
60/100/140
50-120
60/100/140
50-120
60/100/140
Arm length mm
240-600
200-500
300-8000
200-500
400-1100
200-500
Max.thickness of mild steel sheet with min. length s arm mm
3+3
3+3
4+4
4+4
5+5
5+5
Max Welding Thickness With 500mm arms mm
2+2
2+2
3+3
3+3
3+3
3+3
With maximum length arms mm
1.2+2
1.2+1.2
2+2
1.8+1.8
2.0+2.0
2.0+2.0
Cross wire maximum mm
14+14
14+14
16+16
16+16
20+20
20+20

Features

1. Light weight, easy to operate and save electricity 2. The turntable is equipped with bearings and rotates 360°
3. Customized welding tongs, the longest welding arm is 1300mm and the shortest is 220mm
4. The structure of the transformer is the same as that of Bosch. The transformer is equipped with temperature control protection. Water cooling, fast heat dissipation. Long sustainable working time (24h work)
5. Different specifications can be set (workpieces with different thicknesses can be welded) welding thickness 0.3mm+0.3mm∽5+5mm
6. The cylinder is a customized pressurized cylinder, the brand is (SMC)
7. Balancer with self-locking function




Manufacturer Automatic Resistance Portable Hand Held Spot Welding Machine 0

Wooden case is non-fumigation, more convenient for transport



Company Information

Manufacturer Automatic Resistance Portable Hand Held Spot Welding Machine 1



Manufacturer Automatic Resistance Portable Hand Held Spot Welding Machine 2

Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing,marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products.Now it is located in Eastern Industrial Zone, Xindu, Chengdu.



Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.

Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance SpotWelding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.

Certifications





Exhibition Pictures



Manufacturer Automatic Resistance Portable Hand Held Spot Welding Machine 3



Manufacturer Automatic Resistance Portable Hand Held Spot Welding Machine 4

Service





Manufacturer Automatic Resistance Portable Hand Held Spot Welding Machine 5

Our engineers were intalling portable spot welding machine in car manufacturer's workshop oversea.
Our engineers will train customer how to operate, repair and maintaining machines and so on..



Transportation Display





Manufacturer Automatic Resistance Portable Hand Held Spot Welding Machine 6



Manufacturer Automatic Resistance Portable Hand Held Spot Welding Machine 7
