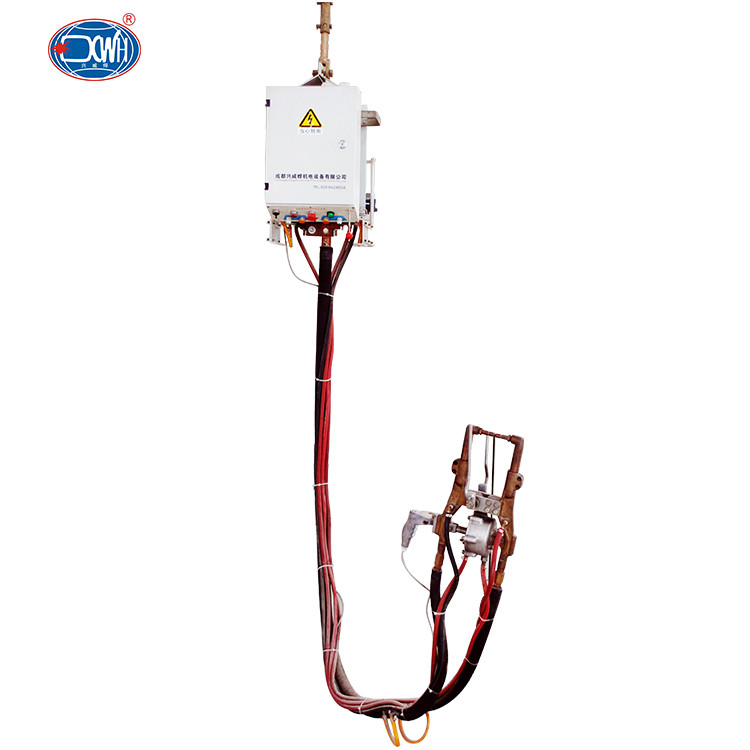

Resistance Inverter 50Hz 160KVA Portable Spot Welding Machine For Stainless Steel
Product Details
| Product Name | 160KVA Portable Spot Welding Machine | Rated Capacity | 160KVA |
|---|---|---|---|
| Frequency | 50HZ/60HZ | Input Voltage | 380V50Hz |
| Related Industry | Stainless Steel Product | Control System | Microcomputer |
| Warranty | 1 Year | Keyword | Spot Welding Machine |
| Highlight | 160KVA portable spot welding machine,50Hz portable spot welding machine,50Hz stainless steel spot welding machine |
||
Product Description
Resistance Inverter 160KVA Portable Spot Welding Machine
Product Display
| Models Item | unit | DN3-160 | DN3-200 |
| Rated power | KVA | 160 | 200 |
| Rated input current | A | 400 | 475 |
| Rated duty cycle | % | 50 | |
| Rated input voltage | V | 380 | |
| Power supply frequency | Hz | 50/60 | |
| Secondary unload voltage | V | 21.7-19 | 24.5-21.7 |
| Max input capacity | KVA | 315 | 383 |
| Max output capacity | A | 14800 | 16200 |
| Insulating grade |
| F | |
| Cooling water consumption 2.5bar | L/min | 14 | 16 |
| Pressure of cool water | Mpa | 0.15-0.3Mpa | |
| Pressure of compressed air | Mpa | 0.5-0.6Mpa | |
| Insulating resistance |
| 500VDC=500M | |
| Dielectric intensity |
| 2500V,60S(primary-secondary) | |
| weight | Kg | 170 | 180 |
Feature
1. The controller can control two welding tongs
2. Due to the small size, light weight, the lightest 9-15kg, the workers are easy to operate
3. Derived from the technology of the former Soviet Union in the 1950s, the technology is mature and stable
4. Maximum welding thickness is 5+5mm
5. The host is not easy to damage (10-year warranty)
Car body repair spot welder are used in car body producing, low carbon steel welding, Steel bar welding, Metal wire welding, Metal tube welding, it can also weld stainless steel, coated steel,security doors, cabinets.
Meanwhile the spot welding machine can be custom-made according to your requirement. DN3 Suspention Spot Welder are used in car body producing, low carbon steel welding, Steel bar welding, Metal wire welding, Metal tube welding, it can also weld stainless steel, coated steel,security doors, cabinets.
Wooden case is non-fumigation, more convenient for transport
Company Information
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing,marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products.Now it is located in Eastern Industrial Zone, Xindu, Chengdu.
Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.
Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance SpotWelding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.
Certifications
Exhibition Pictures
Service
Our engineers were intalling portable spot welding machine in car manufacturer's workshop oversea.
Our engineers will train customer how to operate, repair and maintaining machines and so on..
Transportation Display
