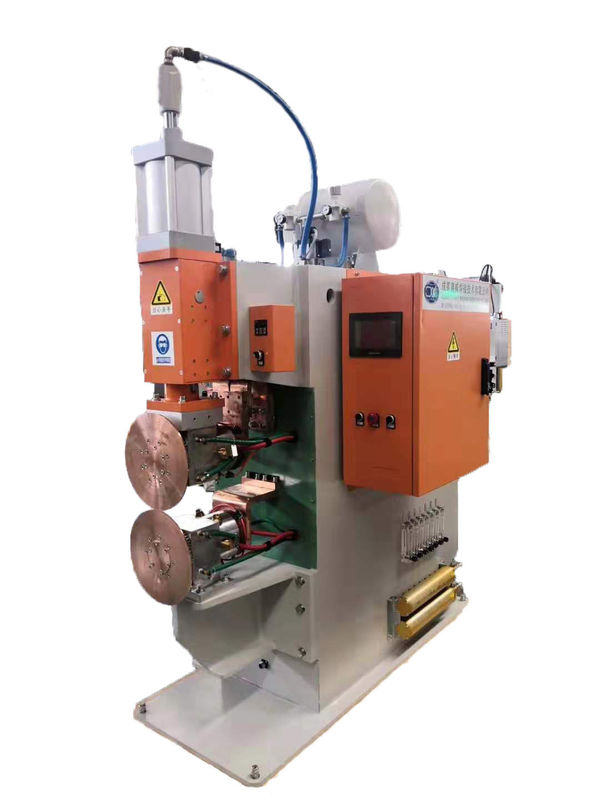

PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance

PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance
PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance
PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance

Large Image :  PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance

Product Details:
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: FN
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD6000-USD10000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Contact Now

PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance

Description
Highlight:

PLC seam welding equipment

,

550W seam welding equipment

,

550W portable seam welder

 Plc Seam Welding Tracking Tin Can Cleaning Mig Circular Automatic Roll Wheel Portable Macine Resistance



Model
Item
Unit
FN-80-H
FN-100-H
FN-160-H
FN-100-E
FN-160-E
Rated power
KVA
80
100
160
100
160
Voltage input
V
380
380
380
380
380
Frequency
Hz
50
50
50
50
50
Max. short circuit current
KA
26
30
40
30
40
Working stroke
mm
100
100
100
100
100
Welding efficiency
m/min
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9
Max. force
N
6000
6000
7800
6000
7800
Max. welding capacity
mm
1.2+1.2
1.5+1.5
2.0+2.0
1.5+1.5
2.0+2.0
Motor Power
W
550
750
750
750
400
Cooling consumption
L/min
8
8
10
8
10
Weight
Kg
380
510
630
530
700

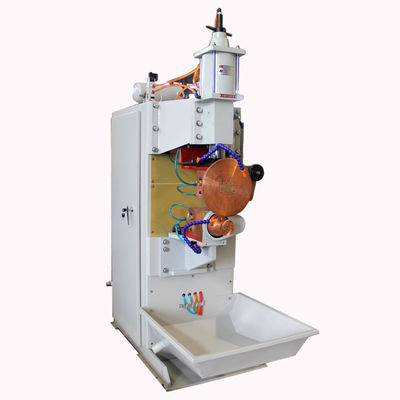

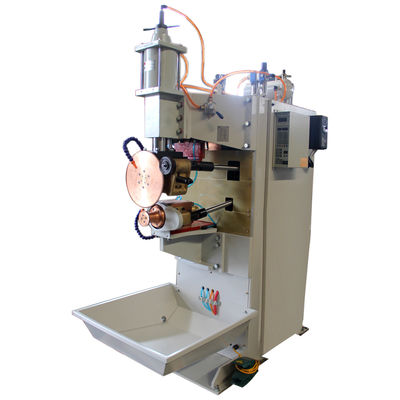

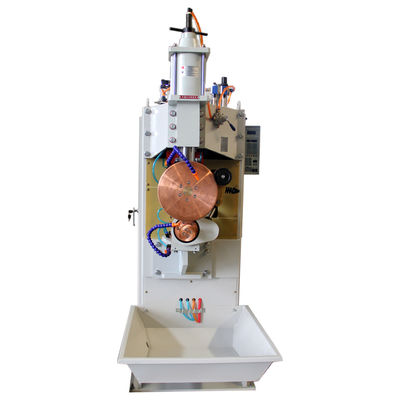

Product Display
PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance 0
PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance 1
PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance 2
PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance 3

PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance 4
Seam Welding Machine can be widely used in car body producing, low carbon steel welding, Steel bar welding, Metal wire welding, Metal tube welding. Besides,it can weld stainless steel, coated steel,security doors, cabinets. Meanwhile electrode arm can be customized according to your requirements.
PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance 5
Wooden case is non-fumigation, more convenient for transport
Company Information
PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance 6
PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance 7
PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance 8
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.

Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.

Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance Spot Welding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.
Certifications
PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance 9
PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance 10
PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance 11
Exhibition Pictures
PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance 12
PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance 13
PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance 14
PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance 15
Service
PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance 16
PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance 17
PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance 18
Our engineers were intalling portable spot welding machine in car manufacturer's workshop oversea.
Our engineers will train customer how to operate, repair and maintaining machines and so on.
Transportation Display
PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance 19
PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance 20
PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance 21
PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance 22
