Product Details:
|
| Product Name: | 30kg 40kg 50kg 60kg 80kg 100kg 120kg Spring Load Balancer Hanging Balancer 1.5M Stroke | Usage: | Production |
|---|---|---|---|
| Warranty: | 1 Year | Size: | 600mm |
| Keyword: | Spring Balancer | Advantage: | Easy Operate Low Investment |
| Length: | 1.5m | MOQ: | 50 Sets |
| Highlight: | CE spring load balancer,80kg industrial spring balancer,CE industrial spring balancer |
||

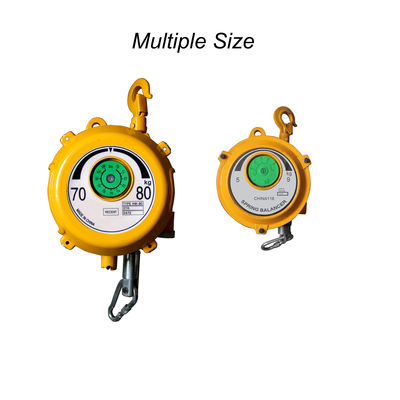

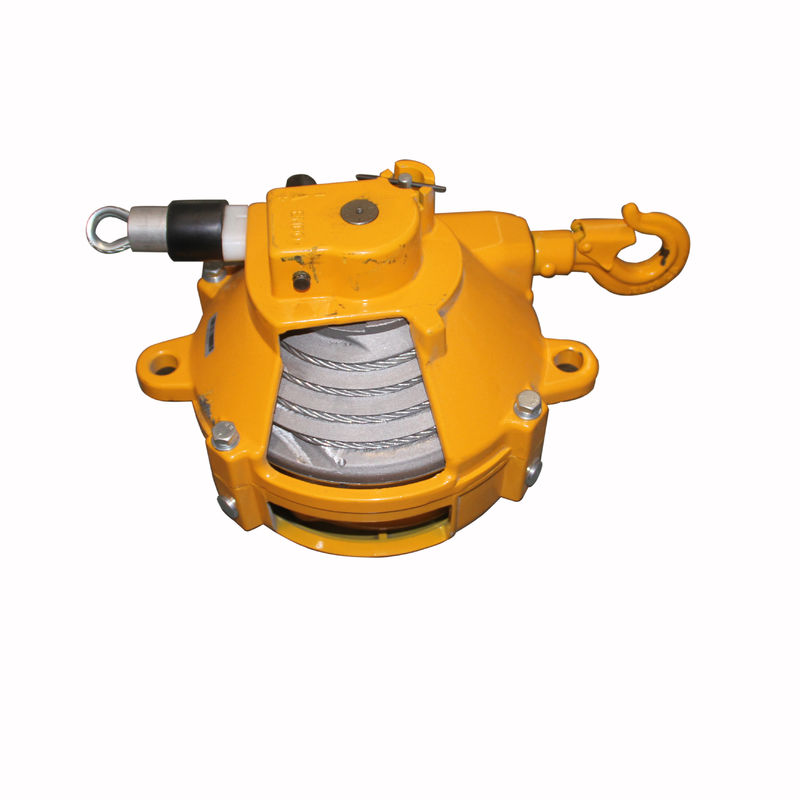

Spring Balancer is a kind of accessorial tool special for suspending electrical machine, which can balance with weight of tools, and achieve modern and civilized production. It has been widely used for welding product lines of vehicle body, rivet lines, and assembly line of engine, motorcycles and home appliances where the tools must be hung. It'll be the ideal choice to reduce the labour intensity and increase the productivity.
capacity range:1,3,5,9,15,22,30,40,50,60,70,80,100,120,140,160,180,200kgs
Models | Loading Capcity(Kg) | Stroke(m) | Rope Dia.(mm) | Weight(kg) |
XW-0.5 | 0.5-1.5 | 1.0 | 3.0 | 0.5 |
XW1-3 | 1.5-3.0 | 1.3 | 3.0 | 1.9 |
XW3-5 | 3.0-5.0 | 1.3 | 3.0 | 2.1 |
XW5-9 | 5.0-9.0 | 1.5 | 3.0 | 3.5 |
XW9-15 | 9.0-15.0 | 1.5 | 4.0 | 3.8 |
XW15-22 | 15.0-22.0 | 1.5 | 4.76 | 7.3 |
XW22-30 | 22.0-30.0 | 1.5 | 4.76 | 7.7 |
XW30-40 | 30.0-40.0 | 1.5 | 4.76 | 9.7 |
XW40-50 | 40.0-50.0 | 1.5 | 4.76 | 10.1 |
XW50-60 | 50.0-60.0 | 1.5 | 4.76 | 11.1 |
XW60-70 | 60.0-70.0 | 1.5 | 4.76 | 11.4 |
XW70-80 | 70.0-80.0 | 1.5 | 4.76 | 22.0 |
XW80-100 | 80.0-100.0 | 1.5 | 4.76 | 24.0 |
XW100-120 | 100.0-120.0 | 1.5 | 4.76 | 28.0 |
XW120-140 | 120.0-140.0 | 1.5 | 6.0 | 24.1 |
XW140-160 | 140.0-160.0 | 1.5 | 6.0 | 28.7 |
