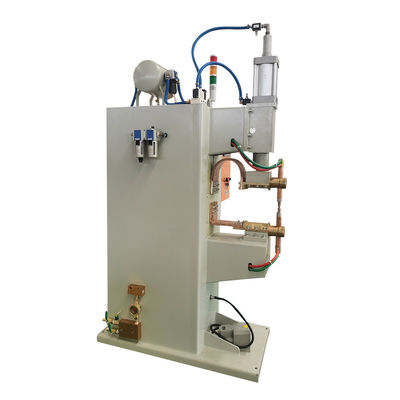

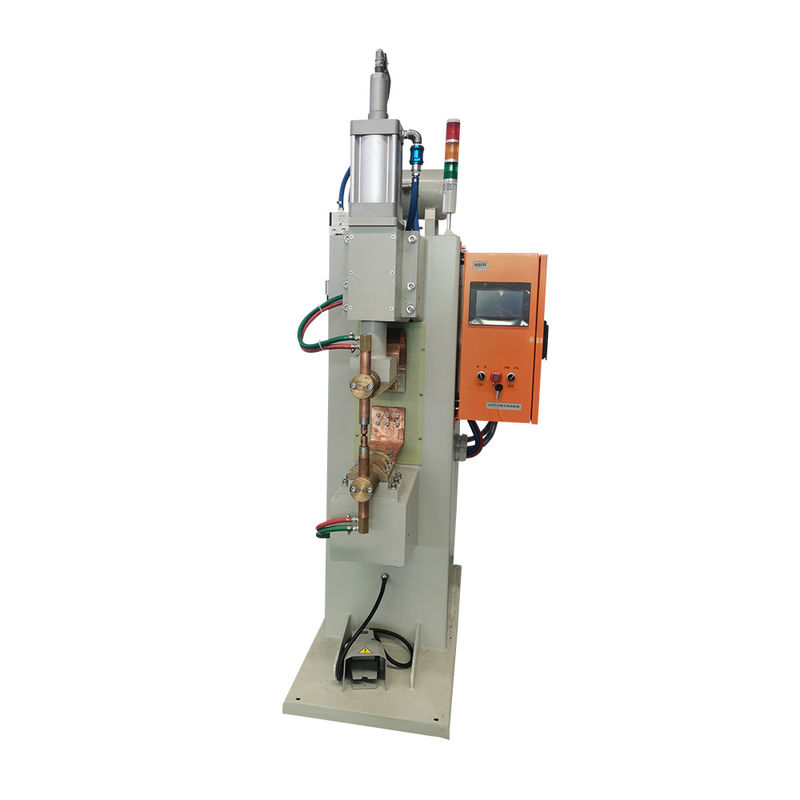

Product Details:
|
| Product Name: | Resistance Projection Stationary Spot Welding Machine | Welding Material: | Stainless Steel , Galvanized Steel , Iron |
|---|---|---|---|
| Application: | Wire Welding | Function: | Sheet Metal Spot Welding |
| Rated Capacity: | 100KVA, 160KVA, 200KVA, 250KVA | MOQ: | 1 Set |
| Max. Welding Thickness: | 6mm+6mm | Warranty: | 1 Year |
| Highlight: | Copper Wire Stationary Spot Welding Equipment,Sheet Metal Stationary Spot Welding Equipment,200KVA Copper Wire Spot Welding Machine |
||
Feature:
1. 15 welding programs can be stored: different welding specifications can be stored in different welding programs.
2. It is very convenient and smooth to achieve accurate welding of different workpieces.
3. It is widely used in automobile, home appliances, electronics, agricultural machinery and other metal manufacturing industries.
Parameter List
| Items Models |
DN(B)-100 |
DN(B)-160 |
DN(B)-200 |
DN(B)-250 |
| Rated power (KVA) |
100 |
160 |
200 |
250 |
| Power input(V) |
3φAC 380V |
3φAC 380V |
3φAC 380V |
3φAC 380V |
| Max. short circuit current (KA) |
30 |
35 |
40 |
45 |
| Duty cycle (%) |
50 |
50 |
50 |
50 |
| Max. force(N) |
6000 |
6000 |
10000 |
15000 |
| Electrode length (mm) |
450 |
450 |
450 |
500 |
| Working stroke (mm) |
80 |
80 |
80 |
80 |
| Cooling consumption (L/min) |
20 |
20 |
20 |
20 |
| Max. welding capacity (mm) |
3.0+3.0 |
4.0+4.0 |
5.0+5.0 |
6.0+6.0 |
