Product Details:
|
| Product Name: | Resistance Projection Welder | Welding Material: | Stainless Steel , Galvanized Steel , Iron |
|---|---|---|---|
| Machine Type: | Resistance Welding Machine | Frequency: | 50HZ/60HZ |
| Rated Capacity: | 40KVA, 63KVA, 80KVA, 100KVA, 125KVA, 160KVA, 200KVA | MOQ: | 1 Set |
| Throat: | Can Be Customized | Function: | Spot Welding |
| Highlight: | Resistance Welding Stationary Spot Welder,Accurate Pro Stationary Spot Welder,Aluminum Copper Projection Resistance Welder |
||
Feature:

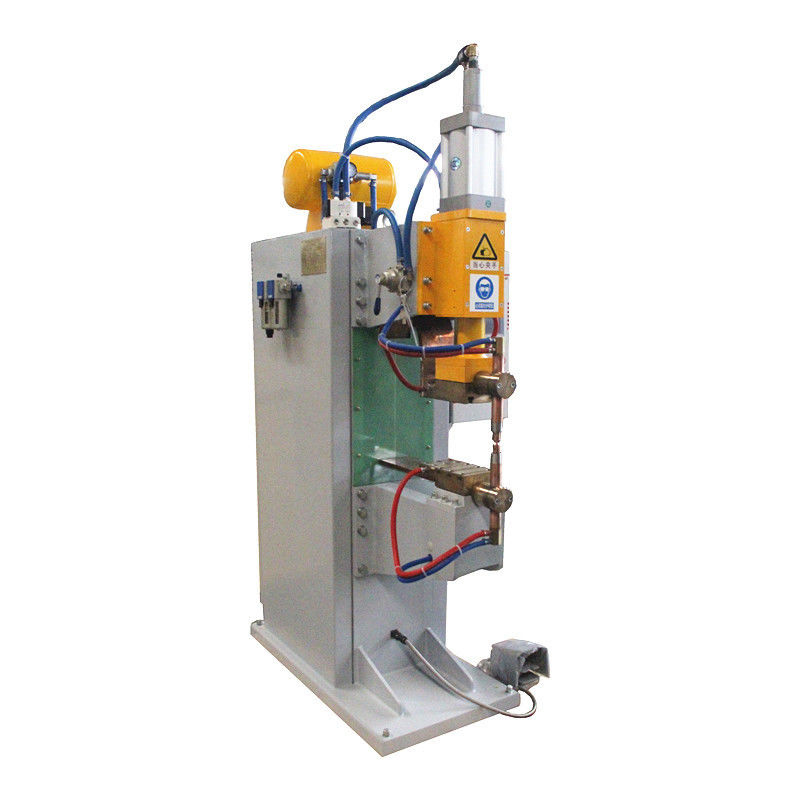

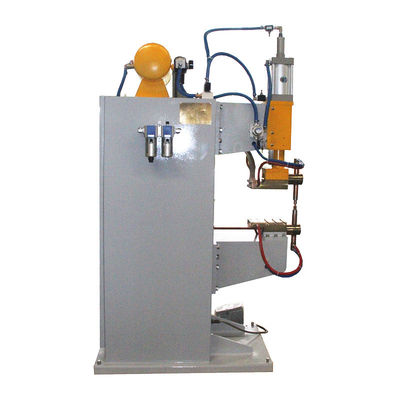

1. The body of the stationary spot welding machine is cast by the thickened steel plate, and the body is stable.
2. The upper and lower electrodes are made of highly conductive materials with auxiliary pressure, which has good welding effect and high efficiency. The internal water cooling system can reduce the welding temperature.
3.Widely applicable to automobile manufacturing, production of house applications, hardware fittings and so on.
Parameter List
| Item Model | DN-40 | DN-63
| DN-80 | DN-100 | DN-125 | DN-160 | DN-200 |
| Rated capacity (KVA) | 40 | 63 | 80 | 100 | 125 | 160 | 200 |
| Rated Primary voltage (V) | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Rated frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Max. short circuit current (KVA) | 14 | 15 | 16 | 18 | 20 | 28 | 34 |
| Rated duty cycle (%) | 50
| 50 | 50 | 50 | 50 | 50 | 50 |
| Throat (mm) | 400 | 400 | 400 | 450 | 450 | 450 | 450 |
| Max. force at electrodes (N) | 6000 | 6000 | 10000 | 10000 | 10000 | 12000 | 12000 |
| Working stroke (mm) | 20 | 20 | 30 | 40 | 40 | 50 | 50 |
| Welding capability (Low carbon steel ) (mm) | 2.5+2.5 | 3.0+3.0 | 4.0+4.0 | 4.5+4.5 | 5.0+5.0 | 5.0+5.0 | 6.0+6.0 |
