Product Details:
|

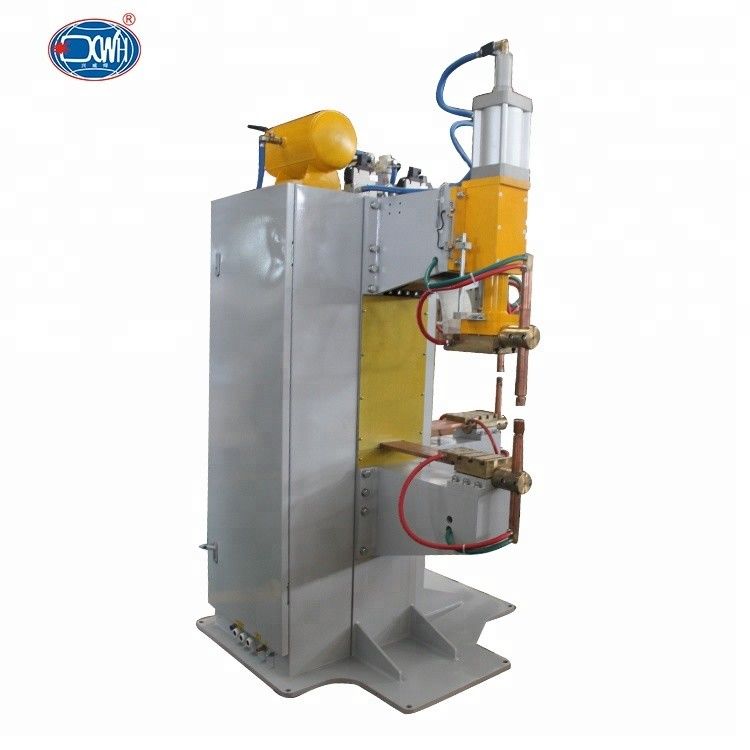

| Product Name: | Resistance Water Refrigerated Spot Welders | Welding Material: | Stainless Steel , Galvanized Steel , Iron |
|---|---|---|---|
| Rated Duty Cycle: | 50% | Frequency: | 50HZ/60HZ |
| Rated Capacity: | 25KVA-400KVA | Welding Head: | Single Head |
| Production Time: | 25-35 Days | Usage: | Spot Welding |
| Highlight: | 60kva ss spot welding machine,2500N ss spot welding machine,60kva automobile spot welder |
||
Product
FEATURE
. High quality and high efficiency welding power,power factor up to 98%,3 phase input load balancing
. The fuselage is designed with high quality steel plate and optimized mechanical structure,ensuring stable welding quality
. International famous brand components make the overall quality of the welder reach the first-class level
. Can store 60 sets of welding specifications, Large LCD screen interface,with chinese and english switch disply
Parameter List
| Item Model | DN-25 | DN-35 | DN-50 | DN-75 | DN-100 | DN-150 | DN-200 |
| Rated capacity KVA | 25 | 35 | 50 | 75 | 100 | 150 | 200 |
| Rated Primary voltage V | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Rated frequency Hz | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Maximum welding input KVA | 38 | 54 | 70 | 146 | 216 | 340 | 450 |
| Rated duty cycle % | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Arm length mm | 340 | 380 | 380 | 380 | 380 | 450 | 450 |
| Maximun compression N | 2500 | 4700 | 4700 | 7300 | 7300 | 12000 | 12000 |
| Electrode stroke mm | 60 | 80 | 80 | 80 | 80 | 100 | 100 |
| Welding capability Low carbon steel mm | 2.0+2.0 | 2.5+2.5 | 3.0+3.0 | 4.0+4.0 | 4.5+4.5 | 5.0+5.0 | 6.0+6.0 |
