Product Details:
|
| Product Name: | Spring Balancer,Spring Balancer For Electric Screwdrivers Use | Usage: | Production |
|---|---|---|---|
| Material: | Metal | Size: | 600mm |
| Keyword: | Spring Balancer | Packing: | Carton |
| Length: | 1.5m | OEM: | Acceptable |
| Highlight: | automatic spring balancer tool holder,600mm spring balancer tool holder,automatic spring balancer 10 kg |
||

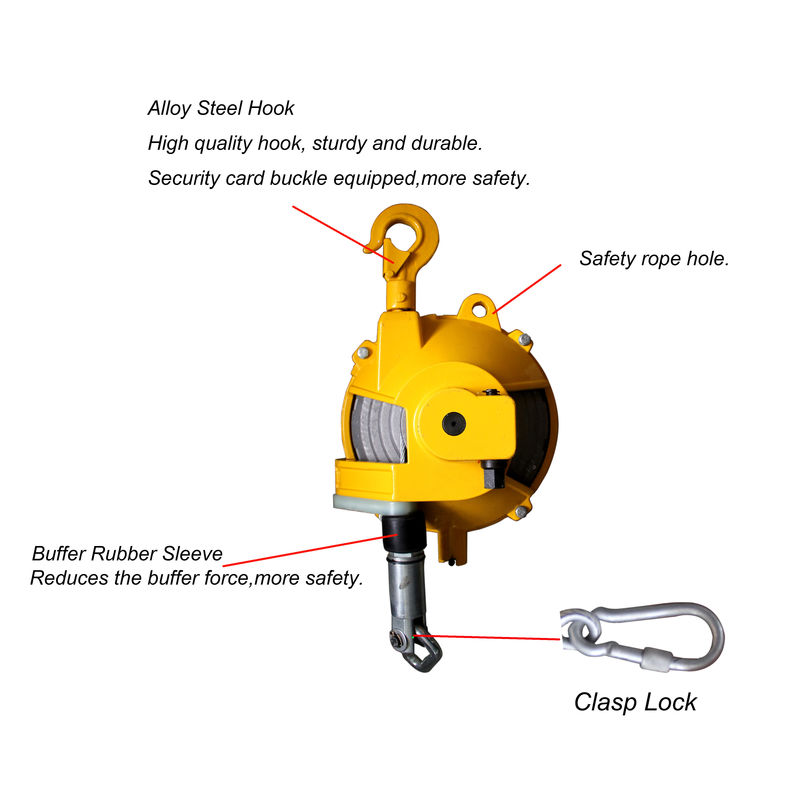

The balancer is an auxiliary tool for suspending heavy production operation equipment. It is used by people who are engaged in continuous and repetitive work on the production line to hang, concentrate, move and remove tools. It is easy to operate pneumatic, electrical and hydraulic tools; it is equipped with a safety device, which can prevent the suspended object from falling and can manually lock the suspended object.
| Models | Loading Capcity(Kg) | Stroke(m) | Rope Dia.(mm) | Weight(kg) |
| XW-0.5 | 0.5-1.5 | 1.0 | 3.0 | 0.5 |
| XW1-3 | 1.5-3.0 | 1.3 | 3.0 | 1.9 |
| XW3-5 | 3.0-5.0 | 1.3 | 3.0 | 2.1 |
| XW5-9 | 5.0-9.0 | 1.5 | 3.0 | 3.5 |
| XW9-15 | 9.0-15.0 | 1.5 | 4.0 | 3.8 |
| XW15-22 | 15.0-22.0 | 1.5 | 4.76 | 7.3 |
| XW22-30 | 22.0-30.0 | 1.5 | 4.76 | 7.7 |
| XW30-40 | 30.0-40.0 | 1.5 | 4.76 | 9.7 |
| XW40-50 | 40.0-50.0 | 1.5 | 4.76 | 10.1 |
| XW50-60 | 50.0-60.0 | 1.5 | 4.76 | 11.1 |
| XW60-70 | 60.0-70.0 | 1.5 | 4.76 | 11.4 |
| XW70-80 | 70.0-80.0 | 1.5 | 4.76 | 22.0 |
| XW80-100 | 80.0-100.0 | 1.5 | 4.76 | 24.0 |
| XW100-120 | 100.0-120.0 | 1.5 | 4.76 | 28.0 |
| XW120-140 | 120.0-140.0 | 1.5 | 6.0 | 24.1 |
| XW140-160 | 140.0-160.0 | 1.5 | 6.0 | 28.7 |
