Servo Motor Gun Spot Welding Machine , 100KVA Spot Soldering Gun

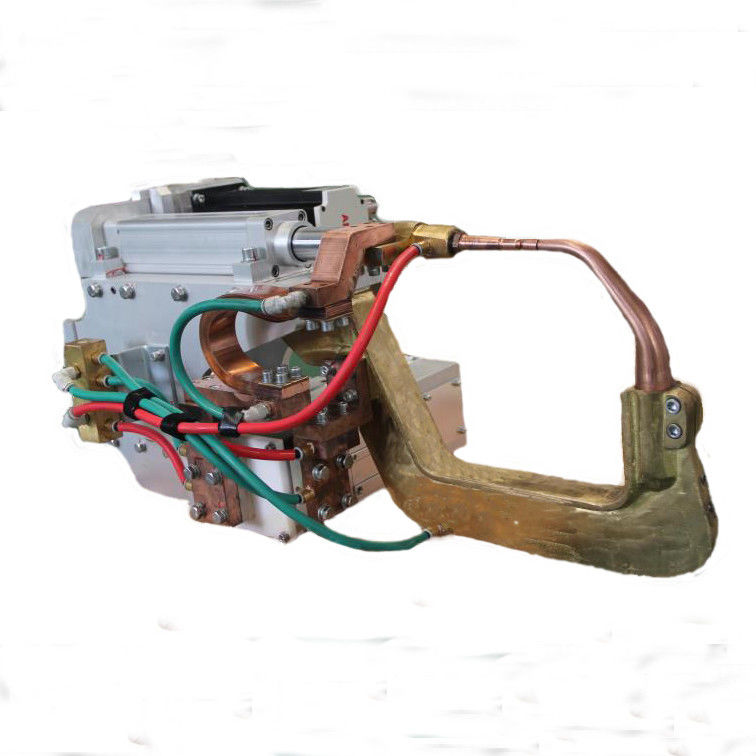

Large Image : Servo Motor Gun Spot Welding Machine , 100KVA Spot Soldering Gun

Product Details:

Place of Origin:	China
Brand Name:	XWH
Certification:	CE
Model Number:	DB3

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD、RMB
Delivery Time:	15 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 sets/month

Contact Now

Servo Motor Gun Spot Welding Machine , 100KVA Spot Soldering Gun

Description

Core Components:	Robot AC DC Electric Spot Welding Machine Gun For Car	Function:	Spot Welding
Throat:	Customized	Weight:	60~120Kg
Max. Welding Thickness:	6mm+6mm	MOQ:	1
Voltage:	280V	Power:	160KVA
Highlight:	servo motor spot soldering gun , 100KVA spot soldering gun , servo motor gun spot welding machine

Robot AC DC Electric Spot Welding Machine Gun For Car

Product

1. Save labor cost (1 machine = 3-5 people), improve labor productivity, improve labor intensity of workers, can work in
harmful environment for 24h

2. High welding precision, high quality, current can be automatically switched at any time, welding thickness 0.1mm-5mm

3. Welding pressure can be set and driven by servo motor

4. Can match any kind of robot

5. Welding arm: aviation aluminum

6. One robot can control multiple welding guns (3 sets)

7. Can store 32 welding specifications. The pressure can be adjusted. Reducing impact deformation and noise

8. Can weld high-strength plate, aluminum, galvanized metal and other materials, good welding effect

Model Items	Unit	DB3-100	DB3-160
Tranformer's Rated Capacity	KVA	100	160
Primary Power		500V 1000Hz	500V 1000Hz
Max Shortcut Current	KA	1.6	2.2
Max Gun Mouth Current's Open	mm	150	250
Max Electrode Pressure	N	4000N	4500
Flowrate of Cooling Water	L/min	15	15
Arm Material		CuCrZr	CuCrZr
Connecting Way Robot		Up,Down,Left,Right,Backward	Up,Down,Left,Right,Backward
Servo Motor		KUKA,ABB,	KUKA,ABB,
welding thickness		0.8+0.8,1.2+1.2,1.5+1.8	0.8+0.8,1.2+1.2,2+2,2.5+2.5

Portable Spot Welder are used in car body producing, low carbon steel welding, Steel bar welding, Metal wire welding, Metal tube welding, also it can weld stainless steel, coated steel,security doors, cabinets. Meanwhile electrode arm can be custom-made according to your requirement.

Wooden case is non-fumigation, more convenient for transport
