Product Details:
|

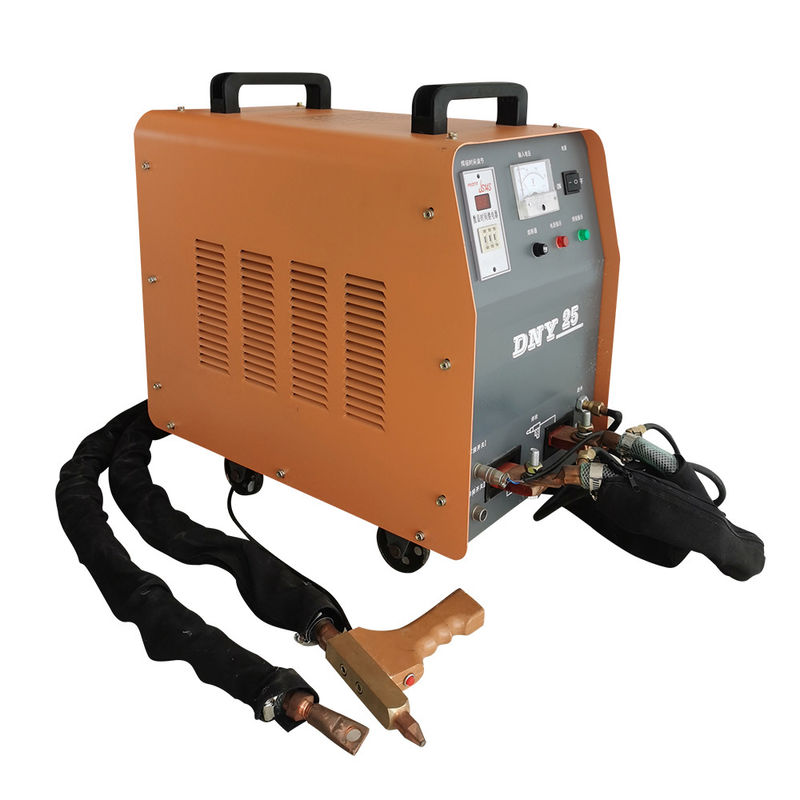

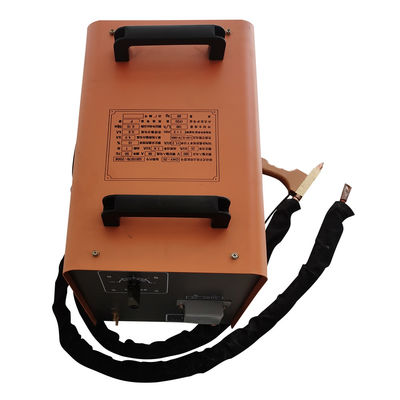

| Product Name: | Portable Mobile Stick Spot Welder Welding Machine | Machine Type: | Resistance Welding Machine |
|---|---|---|---|
| Feature: | Easy Operation | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts |
| Weight (KG): | 80-120KG | Function: | Sheet Metal Spot Welding |
| MOQ: | 1 Set | Voltage: | 220V/380V |
| Highlight: | Ultrasonic Mesh Stud Spot Welding Machine,CCC Certified Spot Welding Machine,380V Mini Resistance Spot Welder |
||
| Model Parameter | DNY-80 | DNY-50 | DNY-35 | DNY-25 | DNY-16 |
| Rated power | 80KVA | 50KVA | 35KVA | 25KVA | 16KVA |
| Rated input power | 380V | 380V | 380V | 380V | 380V |
| Rated primary current | 211A | 132A | 92A | 66A | 42.1A |
| Rated duty cycle | 10% | 10% | 10% | 10% | 10% |
| Secondary unload voltagea djustment | 9.5～19V | 7.6～15.2V | 7.6～12.7V | 7.6～12.7V | 6.2～11V |
| Adjustment level | 2 | 2 | 1 | 4 | 4 |
| Welding time adjustment | 0～250CYC | 0～250CYC | 0～250CYC | 0～9.99s | 0～9.99s |
| Secondary cable length | 2m | 2m | 2m | 2m | 2m |
| Welding thickness | (0.2~1.5)+4mm | (0.2~1.5)+3.5mm | (0.2~1.2)+3mm | (0.2~1)+3mm | (0.1~0.6)+2mm |
| Cooling method | Main transformer: water cooling Electrode: water cooling | ||||
Features:
1. Circulating water cooling ensures the welding quality.
2. Cable can lengthen.
3. Equipped with two welding guns, more convenient to weld.
4. Small size and light weight make it’s easy to move and operate.
5. Suitable for welding of carbon steel, stainless steel, galvanized iron sheet and other metal materials, also can weld copper alloy, gold, silver and other black, non-ferrous, rare metals.
