Product Details:
|

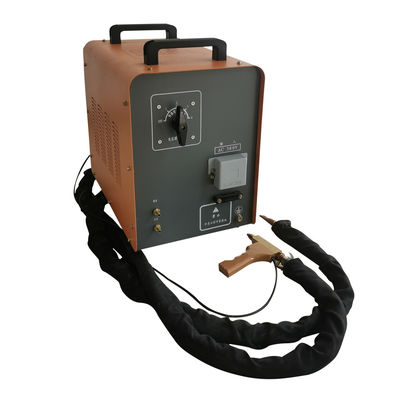

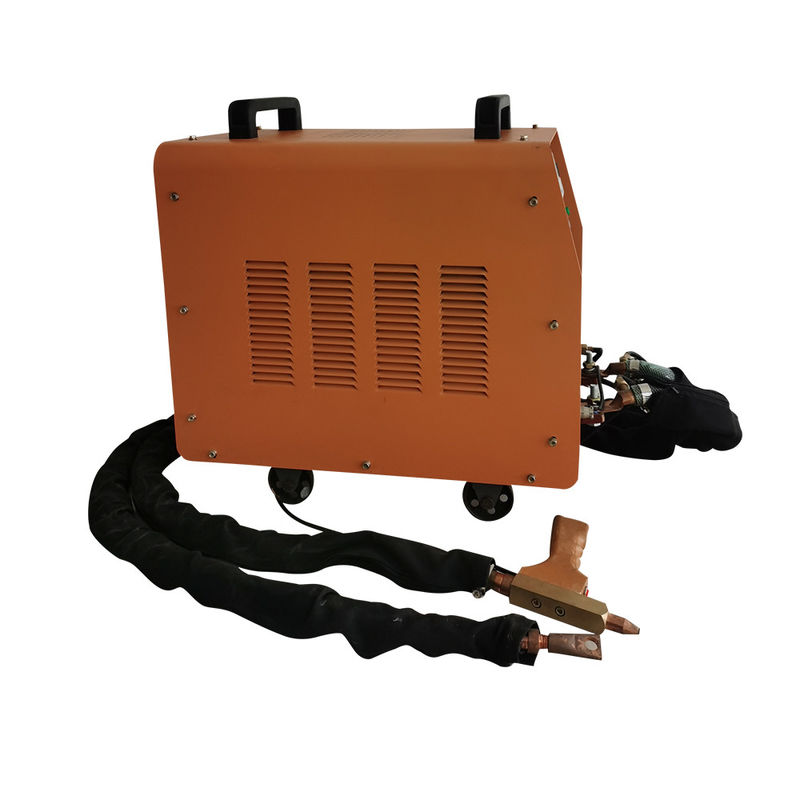

| Product Name: | Portable Mobile Stick Spot Welder Welding Machine | Machine Type: | Resistance Welding Machine |
|---|---|---|---|
| Feature: | Stability | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts |
| Weight (KG): | 80-120KG | Function: | Metal Sheet Spot Weld |
| MOQ: | 1 Set | Application: | Welding Pieces |
| Highlight: | 380V Pulse Precision Spot Welding Machine,Copper Pipe Handheld Spot Welding Machine,CCC Mobile Mini Aluminum Spot Welder |
||
| Model Parameter | DNY-80 | DNY-50 | DNY-35 | DNY-25 | DNY-16 |
| Rated power | 80KVA | 50KVA | 35KVA | 25KVA | 16KVA |
| Rated input power | 380V | 380V | 380V | 380V | 380V |
| Rated primary current | 211A | 132A | 92A | 66A | 42.1A |
| Rated duty cycle | 10% | 10% | 10% | 10% | 10% |
| Secondary unload voltagea djustment | 9.5～19V | 7.6～15.2V | 7.6～12.7V | 7.6～12.7V | 6.2～11V |
| Adjustment level | 2 | 2 | 1 | 4 | 4 |
| Welding time adjustment | 0～250CYC | 0～250CYC | 0～250CYC | 0～9.99s | 0～9.99s |
| Secondary cable length | 2m | 2m | 2m | 2m | 2m |
| Welding thickness | (0.2~1.5)+4mm | (0.2~1.5)+3.5mm | (0.2~1.2)+3mm | (0.2~1)+3mm | (0.1~0.6)+2mm |
| Cooling method | Main transformer: water cooling Electrode: water cooling | ||||
Features:
1. Small and light, so the machine is so easy to move and operate.
2. The welding performance is stable and the quality is guaranteed.
3. The welding machine can adjust the welding time and display the voltage.
4. It's widely used in welding carbon steel, stainless steel, galvanized plate, cabinet and could plate.
Welding samples
