Product Details:
|
| Product Name: | 220V 380V Portable Suspended Spot Welding Gun | Machine Type: | Auto Repair Tools |
|---|---|---|---|
| Rated Capacity: | 31KVA | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maint |
| Weight (KG): | 60 KG | Max. Welding Thickness: | 3.5+3.5mm |
| Rated Duty Cycle: | 50% | Voltage: | 380V |
X type C type
features
| Item/models | Unit | DN2-35X | DN2-35C | DN2-45X | DN2-45C | DN2-65X | DN2-65C |
| power at 50% | KVA | 35 | 35 | 45 | 45 | 65 | 65 |
| Maximum short circuit current | KVA | 15 | 15 | 16 | 16 | 46 | 46 |
| Secondary unload voltage | V | 5.7 | 5.7 | 6.3 | 6.3 | 8 | 8 |
| Voltage at 50Hz/60Hz | V | 380 | 380 | 380 | 380 | 380 | 380 |
| Distance between the arms | MM | 120-280
| 100 | 120-330 | 100 | 160-430 | 100 |
| Max.strength at electrodes | N | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke | MM | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
| Arm length | MM | 240-600 | 200-500 | 300-800 | 200-500 | 400-1100 | 200-500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Cooling water flow | l/MIN | 12 | 12 | 12 | 12 | 12 | 12 |
1. The current limit of the welding point of the weldment is high, and the hotbed is also high. Therefore, after the welding machine controller controls the energization time, the welding point can get a reproducible nugget state, so it can adapt to multiple types of the same or dissimilar metals and Welding of coated steel plates.
2. The suspension spot welding machine adjusts the heat by changing the conduction angle of the thyristor through the welding machine controller, so it is easy to realize mechanization and automation, so it can be matched with a robot for fully automatic welding operation.
3. The split-type suspension spot welding machine is equipped with a suspension device, which can move and rotate in any direction in the X, Y, Z three-dimensional space up, down, left, and right. The operation is extremely light and flexible, and it can realize all positions and all directions. Welding operation.

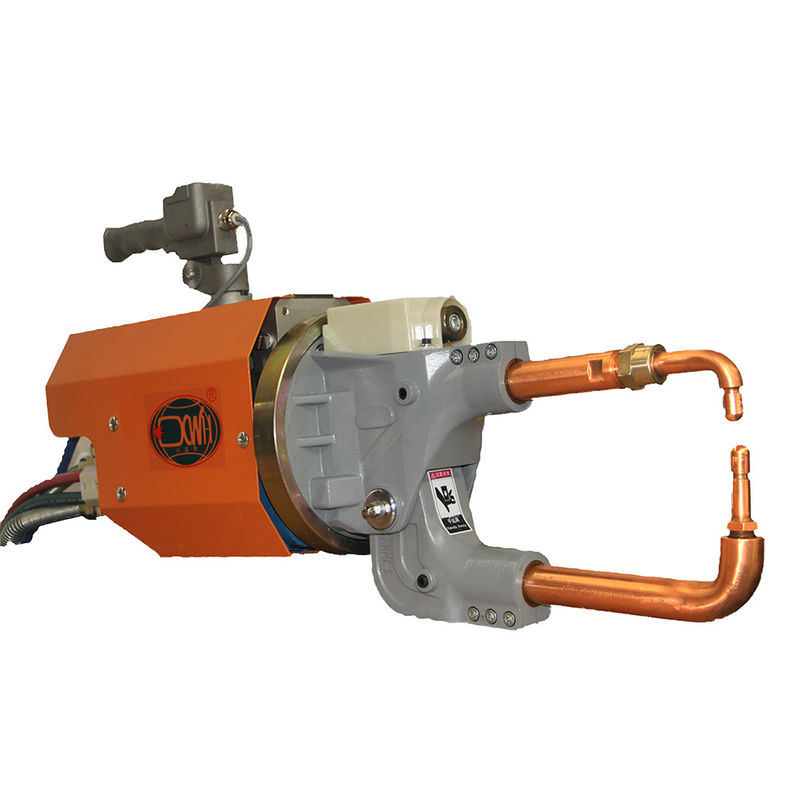

X Type
Specifics
ChengDu XinWei Welding Technoloy Co.Ltd is a high tech-corporation of resistance welding machine and relative products integrated with researching , developing, manufacturing, marketing and service.We have 15 years experience in welding technology.In 2008,our output of single product is more than 1000 units.
Cooperative partner
This is one of our overseas customers' factories.
1. Packaging: Depending on customers' requirement,such as iron case or iron pallet etc.
2. Shipping: When the container arrived our factory,our shipping operator and delivering equipments will be ready on time to ensure goods shipped based on Sales Order requirement.
♥ Your reply will be replied within 24 hours.
♥ Fast delivery time and good after service.
♥ Keep the mass production as the sample in high quality.
♥ Freight forwarder: faster, safer, and convenient.
♥ Good factory price.
♥ Guaranteed for one year.
♥ Providing overseas services.
