Product Details:
|

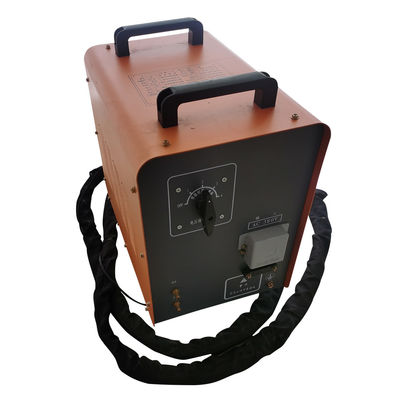

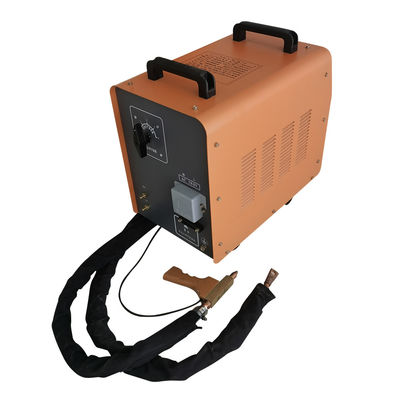

| Product Name: | Portable Mobile Stick Spot Welder Welding Machine | Machine Type: | Resistance Welding Machine |
|---|---|---|---|
| Feature: | High Efficiency | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts |
| Weight (KG): | 80-120KG | Function: | Metal Sheet Spot Weld |
| MOQ: | 1 Set | Application: | Welding Pieces |
| Highlight: | Cnc Wire Mesh Spot Welding Machine,Inverter SS Portable Spot Welding Machine,CCC Metal Sheet Mobile Spot Welder |
||
| Model Parameter | DNY-80 | DNY-50 | DNY-35 | DNY-25 | DNY-16 |
| Rated power | 80KVA | 50KVA | 35KVA | 25KVA | 16KVA |
| Rated input power | 380V | 380V | 380V | 380V | 380V |
| Rated primary current | 211A | 132A | 92A | 66A | 42.1A |
| Rated duty cycle | 10% | 10% | 10% | 10% | 10% |
| Secondary unload voltagea djustment | 9.5～19V | 7.6～15.2V | 7.6～12.7V | 7.6～12.7V | 6.2～11V |
| Adjustment level | 2 | 2 | 1 | 4 | 4 |
| Welding time adjustment | 0～250CYC | 0～250CYC | 0～250CYC | 0～9.99s | 0～9.99s |
| Secondary cable length | 2m | 2m | 2m | 2m | 2m |
| Welding thickness | (0.2~1.5)+4mm | (0.2~1.5)+3.5mm | (0.2~1.2)+3mm | (0.2~1)+3mm | (0.1~0.6)+2mm |
| Cooling method | Main transformer: water cooling Electrode: water cooling | ||||
Features:
1. The welding machine is water-cooling and the cooling effect is perfect.
2. The welding machine can match with all kinds of mannul welding guns and welding pliers, besides having two welding torchs.
3. The welding machine is energy-saving and highly efficient.
4. Widely used in welding carbon steel, stainless steel, galvanized plate, cabinet and could plate.
Welding samples
