Product Details:
|
| Product Name: | Polymer Diffusion Copper Welding Machine | Application: | Copper Welding Machines |
|---|---|---|---|
| Function: | Copper Strips Welding Machine | Machine Type: | Projection Welder |
| Feature: | Semi-Automatic Welding Machine | Welding Material: | Aluminum, Stainless Steel, Metal Steel |
| Max. Welding Capacity: | 6+6mm | After Warranty Service: | Video Technical Support, Online Support And Spare Parts |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | Certification: | CE |
| Highlight: | Diffusion Welding Plant Machine,Copper Diffusion Welding Plant Machine,Water Cooling Diffusion Welding Machine |
||

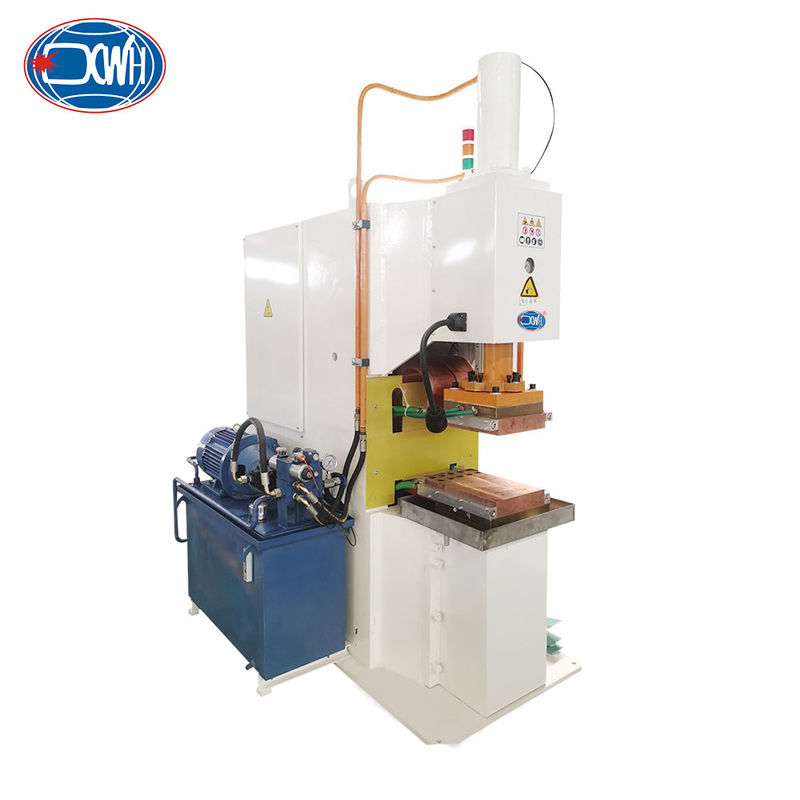

Foot Pedal Mfdc Water Cooling Resistance Copper Diffusion Welding Plant Machine
Product Description
The diffusion welding machine is customized for welding copper strips, using hydraulic pressure and vertical movement of the upper and lower electrodes. Each model has the characteristics of simple and compact structure, novel and beautiful appearance, stable performance, safe and reliable use, high efficiency and energy conservation.
Technical Parameters
| Item/Model | TNB-250 | TNB-300 | TNB-350 | TNB-400 |
| Rated Power(KVA) | 250 | 300 | 350 | 400 |
| Input Voltage(V) | 220V/380V | 220V/380V | 220V/380V | 220V/380V |
| Max. Short Circuit Current (KA) | 35 | 45 | 55 | 60 |
| Duty cycle(%) | 50 | 50 | 50 | 50 |
| Min.Force At Electrodes(N) | 1000 | 1000 | 1000 | 1000 |
| Electrodes Min. Distance( MM) | 75 | 75 | 75 | 75 |
| Rated Cooling Hydraulic Pressure( MPA) | 0.05 | 0.05 | 0.05 | 0.05 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.Welding Capacity(Sheet Copper)( MM) | 7+7 | 8+8 | 10+10 | 13+13 |
Advantages
1. The power heating device of this diffusion welding machine can adjust the output current to achieve the most reasonable heating speed for the workpiece.
2. The workpiece clamping mechanism adopts a gas-liquid booster cylinder, which makes the equipment quickly and stably clamp the workpiece.
3. The equipment control part adopts an automatic control system that combines PLC and touch screen. A series of welding parameters such as welding current, welding temperature, welding time, etc. can be set on the touch screen, making the equipment operation highly automated.
4. Widely used for welding soft connection of copper parts such as new energy vehicles, electric vehicles, power electricians, etc

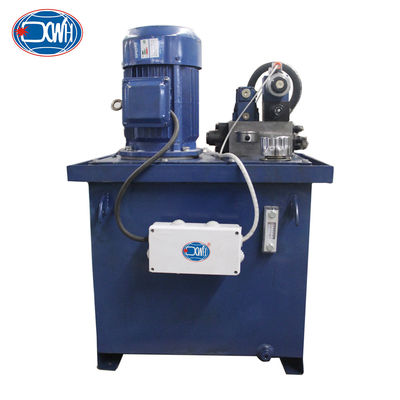

Product Structure
Application
