Product Details:
|
| Product Name: | Copper Wire Spot Welding Machine | Machine Type: | Projection Welding Machine |
|---|---|---|---|
| Application: | Welding Copper Wires | Function: | Copper Spot Welding Machine |
| Keyword: | Spot And Projection Welder Spot Welding Machine | Welding Material: | Copper |
| Max. Welding Capacity: | 6+6mm | After Warranty Service: | Free Spare Video Technical Support, Online Support And Spare Parts Parts, Field Installation, Commissioning And Training |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | Certification: | CE |
| Highlight: | Cnc Spot Welding Machines,Foot Pedal Cnc Spot Welder,Resistance Copper Wire Spot Welder |
||

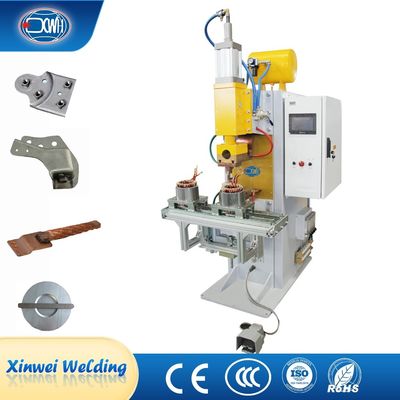

Foot Pedal China Hand Cnc Industrial Resistance Copper Wire Spot Welding Machines
Product Introduction
Standard fixed spot welding machines is mainly used for welding low-carbon steel, coated steel plates, stainless steel, and aluminum plates, and can also weld standard parts and components. And the welding machine is a copper wire welding machine, which is a fixed point projection welding machine specially designed for welding copper wire according to customer requirements. It is a welding equipment that does not move the machine and moves the workpiece. The welding machine has a simple and compact structure, novel and beautiful design, and stable performance; Features such as safe, reliable, efficient, and energy-saving use.
Technical Parameters
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
(1) The upper electrode is pressurized by air cylinder, and the pressure adjustment is convenient and accurate. The welding machine is equipped with a special air tank for standby;
(2) The secondary conductor adopts the upper insulation mode, and the insulation performance is stable and reliable;
(3) The main circuit adopts water-cooled high-power silicon controlled rectifier module, with strong, stable and reliable output;
(4) The water circuit elements are all made of copper and stainless steel, and equipped with visual water flow display to display the water flow;
(5) The operation is controlled by foot switch, with high production efficiency and low labor intensity.
Major Structure

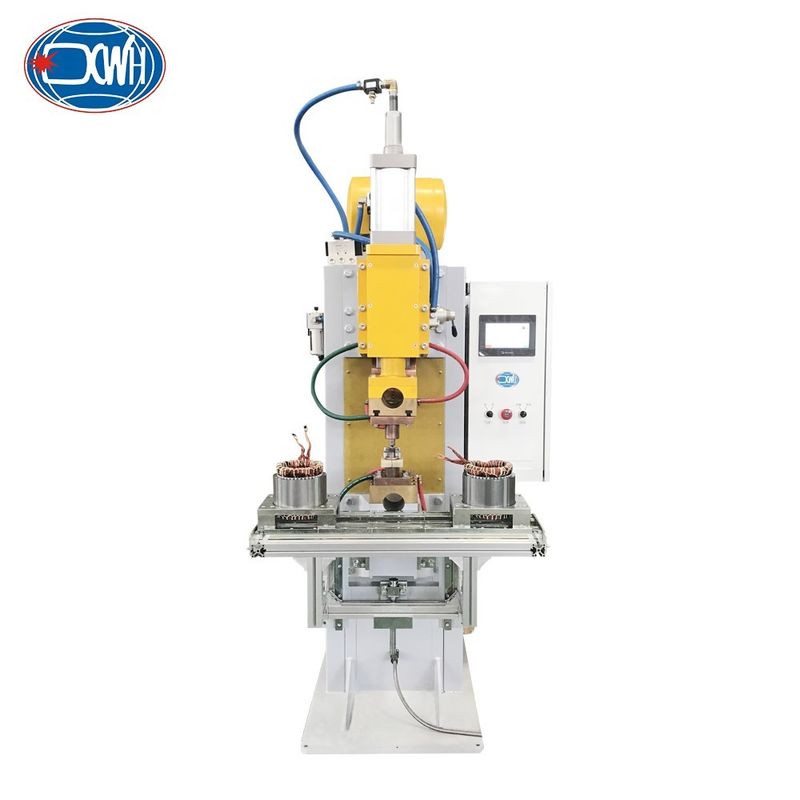

Reference Pictures
