Compact Electric 280V 160KVA Servo Gun Spot Welding Automatic

Large Image : Compact Electric 280V 160KVA Servo Gun Spot Welding Automatic

Product Details:

Place of Origin:	China
Brand Name:	XWH
Certification:	CE
Model Number:	DB3

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD、RMB
Delivery Time:	15 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 sets/month

Contact Now

Compact Electric 280V 160KVA Servo Gun Spot Welding Automatic

Description

Core Components:	Compact Servo-Electric Automatic Robot Welding Gun	Function:	Resistance Welding
Throat:	Customized	Weight:	60~120Kg
Max. Welding Thickness:	6mm+6mm	MOQ:	1
Voltage:	280V	Power:	160KVA
Highlight:	280V servo gun spot welding , 160KVA servo gun spot welding

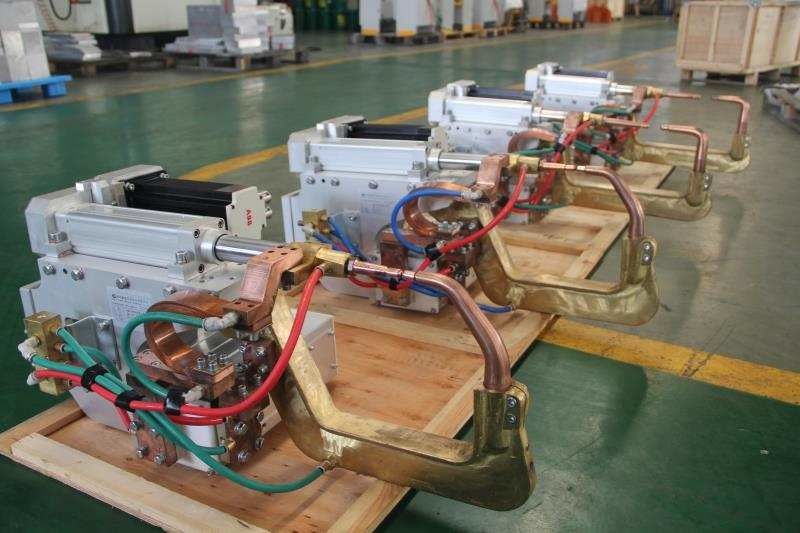

Compact Servo-Electric Automatic Robot Welding Gun

Product

The product adopts the world's advanced high-frequency inverter technology, full-bridge soft switching technology and DSP digital control technology; the output frequency is 10,000 Hz. It has the characteristics of small size of the transformer, high output power, good welding shape, less welding spatter, and high control accuracy. When welding multi-layer galvanized steel sheets and high-strength steel sheets, not only the quality of the solder joints is good, but also it can be basically splash-free

Model Items	Unit	DB3-100	DB3-160
Tranformer's Rated Capacity	KVA	100	160
Primary Power		500V 1000Hz	500V 1000Hz
Max Shortcut Current	KA	1.6	2.2
Max Gun Mouth Current's Open	mm	150	250
Max Electrode Pressure	N	4000N	4500
Flowrate of Cooling Water	L/min	15	15
Arm Material		CuCrZr	CuCrZr
Connecting Way Robot		Up,Down,Left,Right,Backward	Up,Down,Left,Right,Backward
Servo Motor		KUKA,ABB,台达等品牌	KUKA,ABB,台达等品牌
welding thickness		0.8+0.8,1.2+1.2,1.5+1.8	0.8+0.8,1.2+1.2,2+2,2.5+2.5

Portable Spot Welder are used in car body producing, low carbon steel welding, Steel bar welding, Metal wire welding, Metal tube welding, also it can weld stainless steel, coated steel,security doors, cabinets. Meanwhile electrode arm can be custom-made according to your requirement.

Wooden case is non-fumigation, more convenient for transport

Company Information

Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in
