Automatic 280Volt 160KVA Portable Spot Welding Gun CE Approved

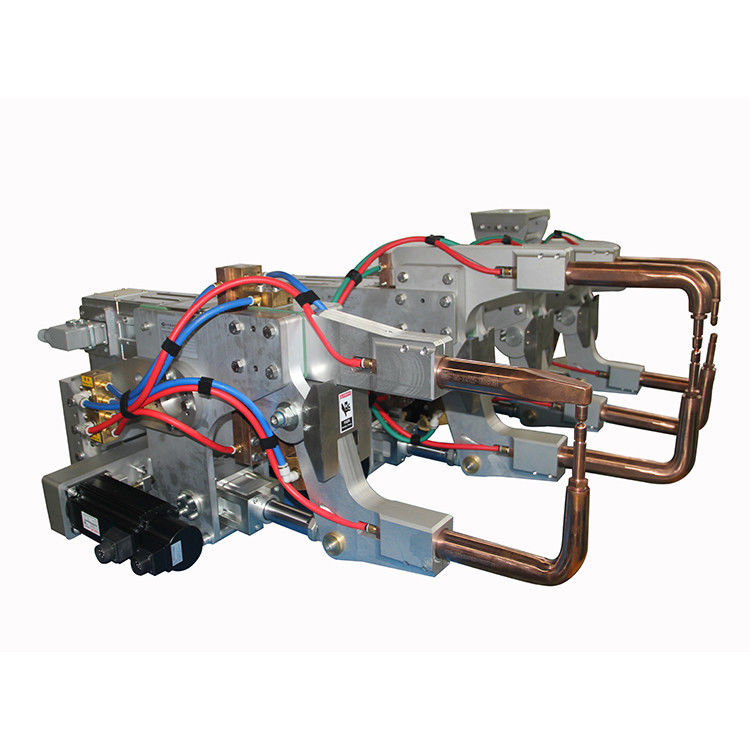

Large Image : Automatic 280Volt 160KVA Portable Spot Welding Gun CE Approved

Product Details:

Place of Origin:	China
Brand Name:	XWH
Certification:	CE
Model Number:	DB3

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD、RMB
Delivery Time:	15 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 sets/month

Contact Now

Automatic 280Volt 160KVA Portable Spot Welding Gun CE Approved

Description

Core Components:	Automatic Servo-Pneumatic Spot Robot Welding Gun	Function:	Spot Welding
Throat:	Customized	Weight:	60~120Kg
Max. Welding Thickness:	6mm+6mm	MOQ:	1
Voltage:	280V	Power:	160KVA
Highlight:	160KVA portable spot welding gun , 280Volt portable spot welding gun

Automatic Servo-Pneumatic Spot Robot Welding Gun

Product

1. Save labor cost (1 machine = 3-5 people), improve labor productivity, improve labor intensity of workers, can work in
harmful environment for 24h

2. High welding precision, high quality, current can be automatically switched at any time, welding thickness 0.1mm-5mm

3. Welding pressure can be set and driven by servo motor

4. Can match any kind of robot

5. Welding arm: aviation aluminum

6. One robot can control multiple welding guns (3 sets)

7. Can store 32 welding specifications. The pressure can be adjusted. Reducing impact deformation and noise

8. Can weld high-strength plate, aluminum, galvanized metal and other materials, good welding effect

Model Items	Unit	DB3-100	DB3-160
Tranformer's Rated Capacity	KVA	100	160
Primary Power		500V 1000Hz	500V 1000Hz
Max Shortcut Current	KA	1.6	2.2
Max Gun Mouth Current's Open	mm	150	250
Max Electrode Pressure	N	4000N	4500
Flowrate of Cooling Water	L/min	15	15
Arm Material		CuCrZr	CuCrZr
Connecting Way Robot		Up,Down,Left,Right,Backward	Up,Down,Left,Right,Backward
Servo Motor		KUKA,ABB,台达等品牌	KUKA,ABB,台达等品牌
welding thickness		0.8+0.8,1.2+1.2,1.5+1.8	0.8+0.8,1.2+1.2,2+2,2.5+2.5

Portable Spot Welder are used in car body producing, low carbon steel welding, Steel bar welding, Metal wire welding, Metal tube welding, also it can weld stainless steel, coated steel,security doors, cabinets. Meanwhile electrode arm can be custom-made according to your requirement.

Wooden case is non-fumigation, more convenient for transport

Company Information

Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in
