Product Details:
|
| Product Name: | Machinery Manufacturing Use XW Series Spring Balancer | Usage: | Production |
|---|---|---|---|
| Material: | Metal | Size: | 600mm |
| Keyword: | Spring Balancer | Packing: | Carton |
| Length: | 1.5m | OEM: | Acceptable |
| Highlight: | metal industrial spring balancer,1.5m industrial spring balancer,metal spring balancer 20kg |
||

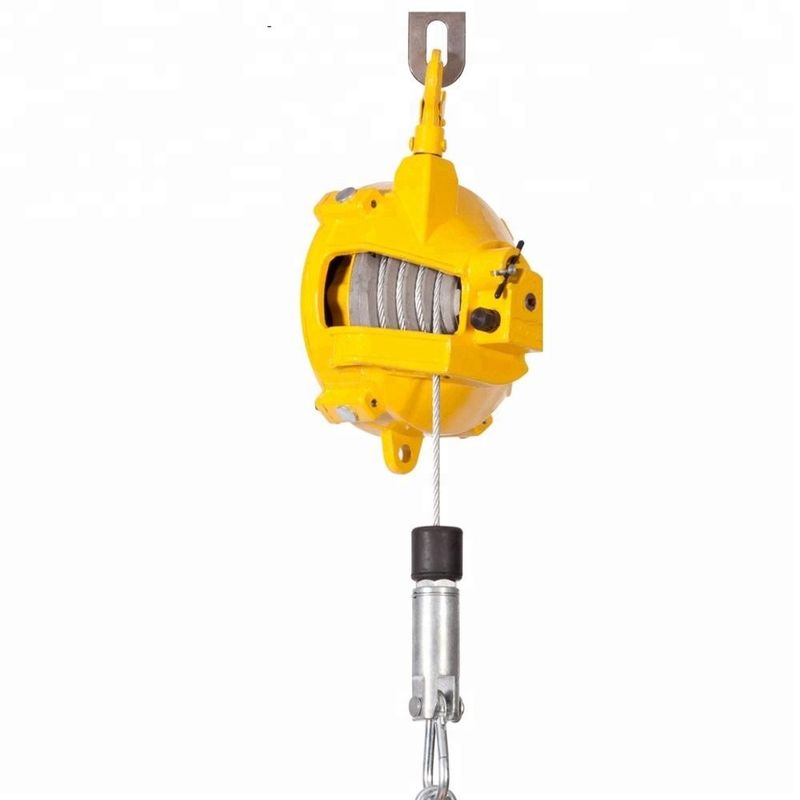

The balancer is an auxiliary tool for suspending heavy production operation equipment. It is used by people who are engaged in continuous and repetitive work on the production line to hang, concentrate, move and remove tools. It is easy to operate pneumatic, electrical and hydraulic tools; it is equipped with a safety device, which can prevent the suspended object from falling and can manually lock the suspended object.
| Models | Loading Capcity(Kg) | Stroke(m) | Rope Dia.(mm) | Weight(kg) |
| XW-0.5 | 0.5-1.5 | 1.0 | 3.0 | 0.5 |
| XW1-3 | 1.5-3.0 | 1.3 | 3.0 | 1.9 |
| XW3-5 | 3.0-5.0 | 1.3 | 3.0 | 2.1 |
| XW5-9 | 5.0-9.0 | 1.5 | 3.0 | 3.5 |
| XW9-15 | 9.0-15.0 | 1.5 | 4.0 | 3.8 |
| XW15-22 | 15.0-22.0 | 1.5 | 4.76 | 7.3 |
| XW22-30 | 22.0-30.0 | 1.5 | 4.76 | 7.7 |
| XW30-40 | 30.0-40.0 | 1.5 | 4.76 | 9.7 |
| XW40-50 | 40.0-50.0 | 1.5 | 4.76 | 10.1 |
| XW50-60 | 50.0-60.0 | 1.5 | 4.76 | 11.1 |
| XW60-70 | 60.0-70.0 | 1.5 | 4.76 | 11.4 |
| XW70-80 | 70.0-80.0 | 1.5 | 4.76 | 22.0 |
| XW80-100 | 80.0-100.0 | 1.5 | 4.76 | 24.0 |
| XW100-120 | 100.0-120.0 | 1.5 | 4.76 | 28.0 |
| XW120-140 | 120.0-140.0 | 1.5 | 6.0 | 24.1 |
| XW140-160 | 140.0-160.0 | 1.5 | 6.0 | 28.7 |
